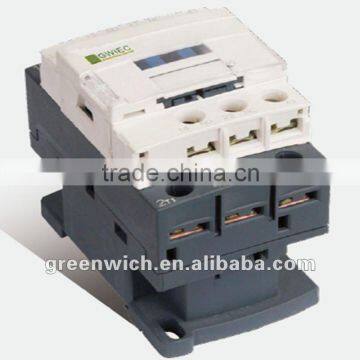

new LC1 D / CJX2 telemecanique contactor

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	GIE
Model Number	CJX2 series telemecanique contactor NEW	Electricity Type	AC
Number of Pole	3	Phase	3
Main Circuit Rating Voltage	380v	Main Circuit Rating Current	Other, AC3 9/38A AC1 25/50A

Product Description

new typle LC1 D / CJX2 telemecanique contactor

CJX2N (New design LC1D09)SERIES AC CONTACTOR

APPLICATION
CJX2-N series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz
or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.
Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes
the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is
combined into the electromagnetic starter. The contactor is produced according to IEC 947-2, VDE 0660
& BS5452.

Rated operation current
Ie max AC-3 (Ue≤440V)		9A	12A		18A	25A		32A	38A
Ie AC-1 (0≤60°C)		25A			32A	40A		50A
Rated operational voltage		690V
Poles (P)		3	3	4	3	3	4	3
Rated operational power in AC-3	220/240V	2.2kW	3kW		4kW	5.5kW		7.5kW	9kW
	380/400V	4kW	5.5kW		7.5kW	11kW		15kW	18.5kW
	415/440V	4kW	5.5kW		9kW	11kW		15kW	18.5kW
	500V	5.5kW	7.5kW		10kW	15kW		18.5kW	18.5kW
	660/690V	5.5kW	7.5kW		10kW	15kW		18.5kW	18.5kW
	1000V	-	-		-	-		-	-
Auxiliary contacts	1 N/C and 1 N/O instantaneous incorporated in the contactors, with addon blocks common to the whole range comprising up to 4 N/C or N/ O instantaneous, up to 1 N/O+1 N/C time delay and up to 2 N/O or N/C protected contacts and 2 screen continuity terminals
Compatible manualauto thermal overload relays	Class 10A	0.10-10A	0.10-13A		0.10-18A	0.10-32A		0.10-38A	0.10-38A
Compatible manualauto thermal overload relays	Class 20A	2.5-10	2.5-13A		2.5-18A	2.5-32A		-	-
Suppressor modules
(d.c. and low consumption contactors have built-in suppression as standard)	Varistor	Y	Y	Y	Y	Y	Y	Y	Y
	Diode	-	-	Y	-	-	Y	-	-
	RC circuit	Y	Y	Y	Y	Y	Y	Y	Y
	Bridirectional peak limiting diode	Y	Y	Y	Y	Y	Y	Y	Y
Interfaces	Relay	Y	Y	Y	Y	Y	Y	Y	Y
	Relay+override function	Y	Y	Y	Y	Y	Y	Y	Y
	Solid state	Y	Y	Y	Y	Y	Y	Y	Y
Contactor type references	~ or… 3P	CJX2N-09	CJX2N-12		CJX2N-18	CJX2N-25		CJX2N-32	CJX2N-38
	~ 4-P	-	CJX2N-12		-	CJX2N-25		-	-
	-4P	-	CJX2N-12		-	CJX2N-25		-	-
Reversing contactor type references	~ 3P	CJX2N-DN09	CJX2N-DN09		CJX2N-D18	CJX2N-D25		CJX2N-D32	CJX2N-D38
	-3P	CJX2N-DN09	CJX2N-DN09		CJX2N-D18	CJX2N-D25		CJX2N-D32	CJX2N-D38
	~ 4P	-	-		-	CJX2N-D25		-	-
	-4P	-	-		-	CJX2N-D25		-	-
