Film Resonance Capacitor in Resonance Circuit, Capacitor Resonant Frequency
- shanghai
- T/T Credit Card
You May Like
-
Polypropylene Film Capacitor, Capacitor Self Resonance, 1uf 1000V.AC
-
Polypropylene Film Capacitor, Resonance Circuit, Inductor Capacitor Resonance
-
Film Capacitor, Polypropylene Capacitor, Resonance Capacitor
-
Film Capacitor, Polypropylene Capacitor, Resonance Current Capacitor
-
Film Capacitor, Polypropylene Capacitor for Series Resonance Circuit
-
Film Capacitor, Polypropylene Capacitor, Parallel Resonant Circuit Capacitor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | CRE | |
| Model Number | RMJ-PS | Type | Polypropylene Film Capacitor | |
| Application | General Purpose | Package Type | Other, Other, Dry type Epoxy seal | |
| Capacitance | 0.1~8uF | Rated Voltage | 500~3000V.AC | |
| Operating Temperature | -40~85℃ |
Product Description
film capacitor in resonance circuit, capacitor resonant frequency
• Plastic, Sealed with epoxy resin;
• Leads with Tinned copper wire, small size, easy installation;
• Resistance to high voltage, low tg ð, low temperature rise;
• Low ESL and ESR;
• High pulse current.

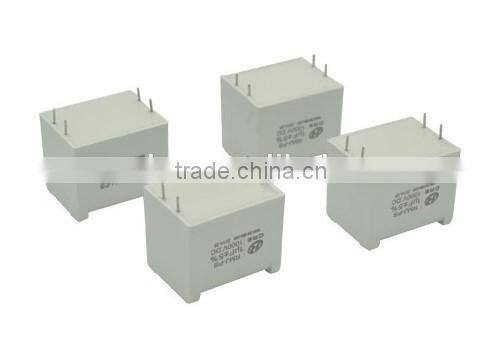

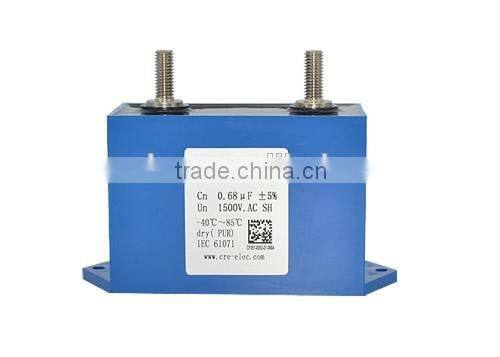

Pictures of film capacitor in resonance circuit, capacitor resonant frequency

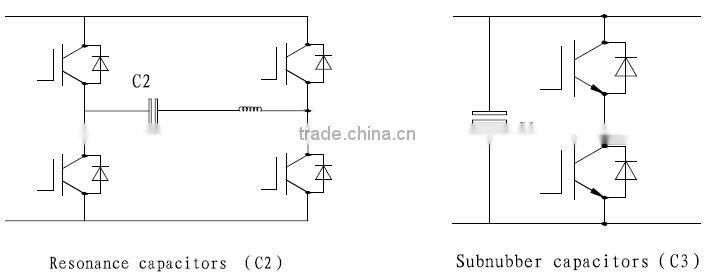

Typical circuit of film capacitor in resonance circuit, capacitor resonant frequency

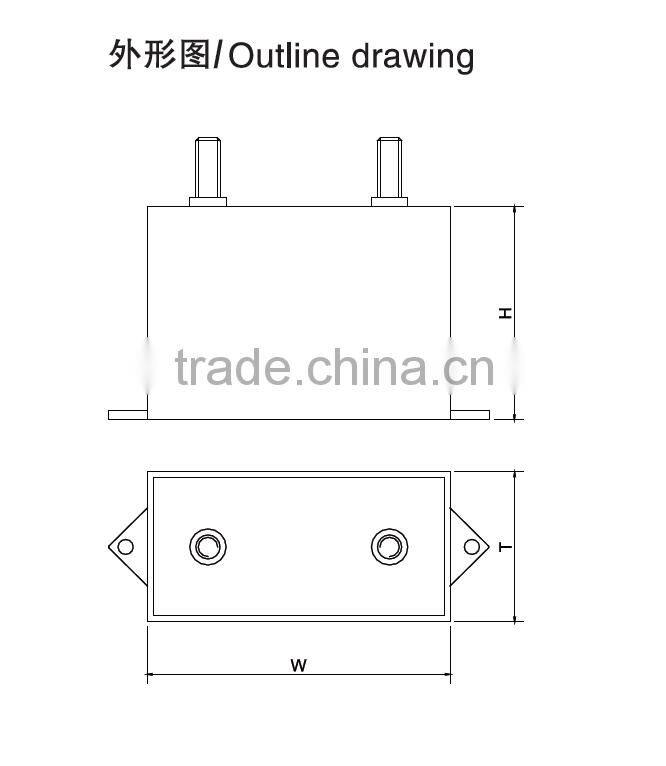

Outline drawing of film capacitor in resonance circuit, capacitor resonant frequency
Technical data of film capacitor in resonance circuit, capacitor resonant frequency
Operating temperature range | -40 ~ +85℃. Top max: +105℃ |
Capacitance range | 0.1~8uF |
Rated voltage | 500~3000V.AC |
Capacitance tolerance | ±5%(J) ; ±10%(K) |
Withstand voltage | 1.5Un/10S |
Dissipation factor | tgδ<=0.001 f=10KHz |
Insulation resistance | Rs X C>=5000S (at 20℃ 100V.DC 60S) |
Reference standard | IEC 61071; IEC 60110 |
More other similar products, please feel free to click Here.
film capacitor in resonance circuit, capacitor resonant frequency
• Can replace electrolytic capacitors, better performance and longer life;
• Widely used in power electronic devices in series/parallel resonant circuit;
• Widely used in power electronic equipment when the peak voltage, peak current.
Wuxi Chenrui New Energy Technology Co.,Ltd is named CRE for short, which is located in Wuxi, China.As an emerging high-tech enterprise, we can provide customers with high-quality capacitor and reliable solutions to the industry of energy-saving, SVG, electric vehicles, new energy...etc. Our products are mainly used in DC-Link, IGBT absorbing protection, high voltage resonance, coupling, AC filtering and others.

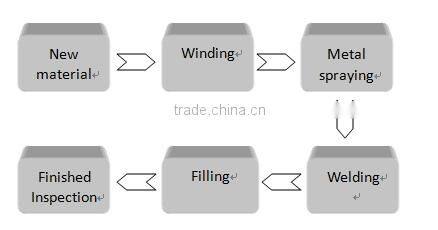

General production processes for film capacitor in resonance circuit, capacitor resonant frequency are as follows:
film capacitor in resonance circuit, capacitor resonant frequency
Packaging:Cartons, pallets, wooden cases or as customers' requirements.
Shipping day: 15days once we have received the payment.
Shipping way: all express ways(DHL, FedEx, TNT, UPS, EMS and so on),or as customers’ requirements.
Professional degree:Ⅰ.Our R&D chief engineer with over 40 years rich experience in film capacitor field.
Ⅱ. More than ten patents in the capacitor field.
Quality: We make 100% inspection before delivery, which will decrease defective rate of capacitors. We can make sure capacitor with Six Sigma standard.
Price: We are manufacturer with autonomous productions, which can effectively control the cost without middlemen fee.
Capacity:Ⅰ. Machine: Advanced finished product testing and spraying machines, dust-free winding workshop.
Ⅱ. Certificate: ISO-9001,ISO/TS 16949 quality system certificate and more than ten patents in film capacitor field.
Various service: We can provide OEM and ODM service. We have a professional service team, timely feedback your information and can provide good after sales service.
Q : Are you a manufacturer or a trading company ?
A: We are a manufactuer specialized in polypropylene film capacitor.
Q: What's your delivery time?
A : It is about 15-21 days, if your goods required urgent, please contact us firstly.
Q: How about the warranty and after-sales service?
A : Normally, the warranty for the product is one year, warmly reception with the calling, visiting and letters, and give the best answers and solution in time from the customers for the technical problem.
Q: May I have a visit to your company before the order?
A: Of course, warmly welcome to our company, our address is: No.789, NanHu Avenue, NanChang DIST. WuXi City, JiangSu, China.
We have joined the Alibaba Credit Insurance Program.
If we didn't meet the requirements in your contract, A will refund your covered amount.
What are you still waiting for?
If you are interested in film resonance capacitor, , please don't hesitate to contact us with phone, email or live chat. We'll do our best to reply you within 12 hours!!
Amy zhu/Sales
Mobile: +86-18168864986
Skype: live:amouramy0908
Trade Manager: cn1518002377esja
More products, please view the follows:
DC link: in DC-Link circuit for filtering energy storage
AC filter: in power electronic equipment used for the AC filter
IGBT/GTO snubber: in power electronic equipment
Resonance:in power electronic devices in series/parallel resonant circuit
