Co2 Fractional Laser With Refrigeration Head 2013062715

Specifications

Introduction

pixel laser cosmetic effect to the skin is only one small area of hot shock, it keeps skin not all affected. Laser cosmetic effect of pixel is to remove wrinkles, skin pigmentation and stimulate the proliferation of collagen

Non-effected skin tissue can be acted as thermal diffusion area, to avoid possible side effects, while such heat damage can promote the healing of the skin.

Pixel matrix laser’s clinical principle is "micro wound and repair" theory, Skin tissue has the ability of self recovery, when the skin be affected by the trauma, it can fully recovery by itself. But if the trauma is big and deep, the scar will be produced during the self-healing. Only when the trauma is very small, the skin could be fully recovery. The self healing of the pixel laser will be produce the skin rejuvenation and skin resurfacing results.

Pixel laser only has thermal effects to very small area of the skin, it remains some parts of the skin is not affected. Pixel laser can removal the wrinkle, pigments, stimulate the collagen to growth. The parts note affected by pixel laser is the thermal diffusion areas to avoid the sides effects by thermal damages and to promote the skin heal up.

The area of the pixel laser is 11*11mm, and it contains 64 micro dots.

The treat time by the pixel laser can be adjusted, it makes the laser has enough energy to enter into the collagen level, this is can’t done by the fractional laser with scanner.

Pixel laser is without setting scanning form, so it is very simple to operation, more convenient to use.

Specification

Color computer screen: 8.0’ displayed with touch button

Laser wavelength: 10600nm

Power to tissue: >30W (C.W)

Focal spot diameter : <0.5mm

articulated arm: 7-joint spring-balanced

Working  radius: 130cm

Pixel laser

Pixel fractional: 8×8 dot matrix

Pixel area: 11×11 mm

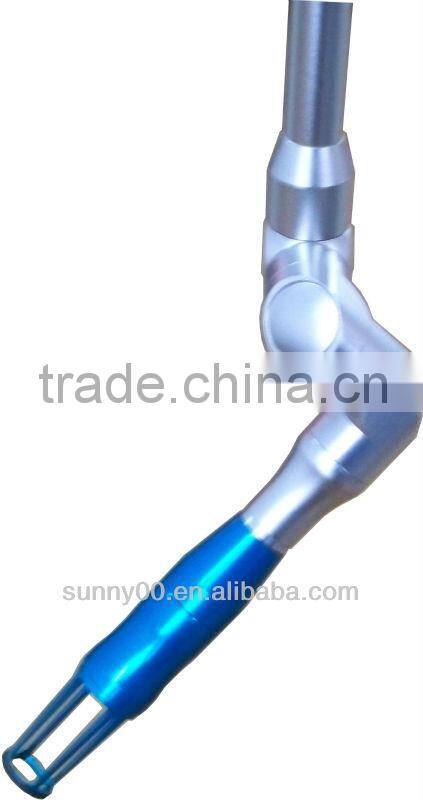

spot diameter:  <0.1 mm (pixel handpiece )

Surgical  laser

Focal spot diameter: <0.5mm (F=100)

Ultra pulse width: 0.1—2mS

pulse recurrence rate: 5-500 mS

Tissue Exposure Modes:  CW Repeat pulseUltra pulse

Aiming beam: Diode laser 635nm2mW
