Upgrades Gold Multifunctional Co2 Fractional Laser(aesthetic Laser)

  upgrades gold multifunctional co2 fractional  laser(aesthetic laser)

SCAN FRACTIONAL LASER PRINCIPLE

Scanning laser is controlled by the computer, laser beam on the skin that hit points of light are arranged in all kinds of graphics,

In fact laser beam not be divided into many points, So, Each of the points of light in diameter of 0.2-0.3 mm, this is the current technology can make the smallest points of light

As each time 5 milliseconds, glowing stay type 60 points to need 300 milliseconds,

Because of the laser stay time is short, the main role in the epidermis,

But, it can arrange more closely,

So, scanning laser available skin peeling surgery and Used for change skin beauty

SCAN FRACTIONAL LASER SPECIFICATION

Wavelengths: 10.6microns

Mode Structure: TEM00

Control system: 8 inch touch screen color, footswitch

Power to tissue: 30W

Laser operation modes: Fractional, Magic, Single, Repeat Pulse & CW.

Aiming beam: Diode laser 650nm 3mW

Beam delivery system: 7-joint spring-balanced articulated arm

Working radius: 130cm

Cooling system: Water closed-cycle

Electrical: 230VAC/50Hz or 110VAC/60Hz

Package dimensions : 540x540x1200cm3

Gross weight: 52kg

Net weight: 30kg

Warranty: 1 year

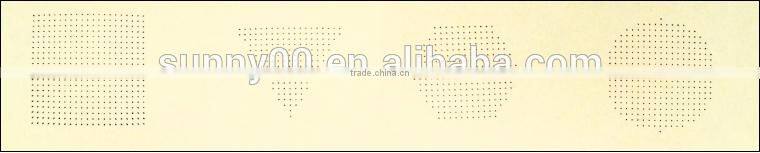

Scanner Graphics: Square or rectangle, Polygon, round, triangle

Working mode: Fractional (Magic Pulse Technology)

Dot quantity: 1-10000 dots at most

focus size: 0.2mm

Point spacing:   0.1--2.6mm

Duty time: 0.1-10ms

Idle time:  1ms -1s

Repeat:   1--20

Treatment size: 20x20mm2 (adjustable)

Menus: 10

Point spacing : 1mm

SCAN FRACTIONAL LASER APPLICATIONS

Acne scars, nevi, tattoo, dark spots, warts, removal

Wrinkles reduction or removal (face, forehead, around lips, neck)

Hemangioma, lipoma cutting

Lleukoplakia vulvae treatment

Cervical erosion treatment

Circumcision treatment

Condyloma acuminatum treatment

Aesthetics Surgery: skin rejuvenation, eyelift, facelift, etc

Quality system:ISO 13485-2003 ISO14971-2007

Safty standard: IEC 60601-1,IEC 60601-1-2,IEC 60601-2-22, IEC 60825-1
