high voltage drop out fuses 15kV
- Shanghai or Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SR | |
| Model Number | SRF-5 | Usage | High Voltage | |
| Breaking Capacity | High | Safety Standards | IEC |
Product Description
Specifications
High Voltage Drop out Fuse1.Material:ceramic
2.Rated voltage:15kV
3.Leakage distance:330mm
4.Certification:ISO9001:2008
Description

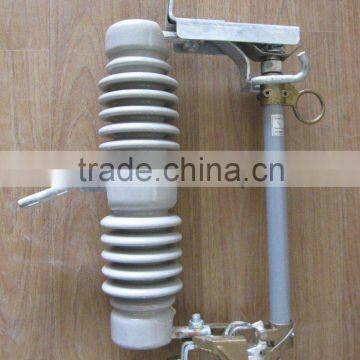

1. Type: fuse cutout, drop out fuse cutout SRF-5
Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.
2. Specification:
Type | Rated voltage(kV) | Rated current(kA) | Breaking current(kA) | Impulse voltage(BIL) | Power-frequency withstand voltage(kV) | Leakage distance(mm) | Weight(kg) | Dimension(cm) |
SRF-5 | 15-27 | 100 | 6300 | 125 | 45 | 330 | 8.8 | 51*31*12.5 |
SRF-5 | 15-27 | 200 | 12500 | 125 | 45 | 330 | 9.3 | 51*31*12.5 |
3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.
