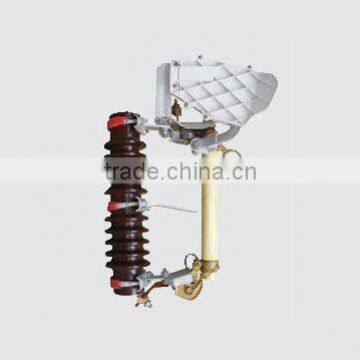

high voltage cut out fuse with arcing cover
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SR | |
| Model Number | RW10-12F | Usage | High Voltage | |
| Breaking Capacity | High | Safety Standards | IEC |
Product Description
Specifications
High Voltage Fuse Certification:KEMA,ISO9001:2008Description
1. Type: fuse cutout, drop out fuse cutout RW10-12F
Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. The series mainly protect transformer or lines from short circuit and over load, and on/off loading current.
2. Specification:
Type | Rated voltage(kV) | Rated current(kA) | Breaking current(kA) | Impulse voltage(BIL) | Power-frequency withstand voltage(kV) | Leakage distance(mm) | Weight(kg) | Dimension(cm) |
RW10-12F | 12 | 100 | 6300 | 110 | 42 | 380 | 4.6 | 53*37*14.5 |
RW10-12f | 12 | 200 | 10000 | 110 | 42 | 380 | 5 | 53*37*14.5 |
3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.
