Economical H.264 Format 4ch Mobile Dvr With CE Certification

Specifications

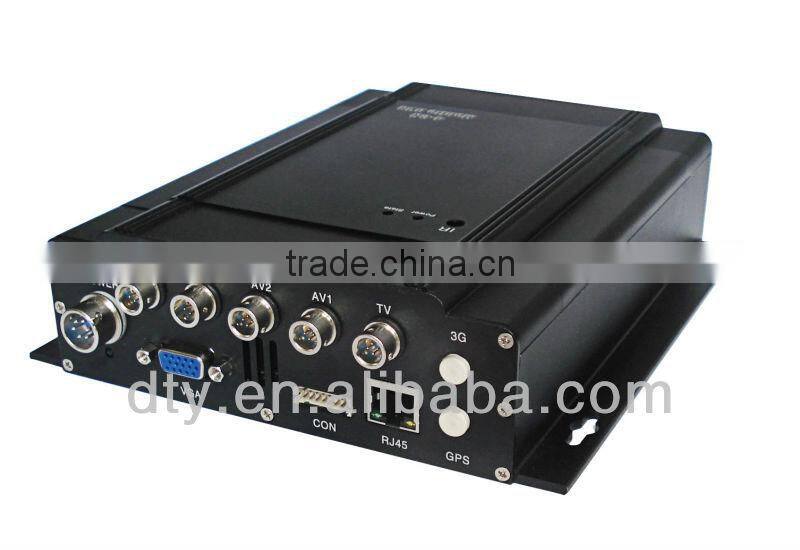

4-CH Hard Disk Mobile DVR –VR8800N

Overview

The VR8800N is a professional, rugged, solid state DVR designed for in-vehicle recording. VR8800N DVR adopts H.264 compression format, records up to 4 channels video and audio at the same time, supports hard disk up to 2TB as well as SD Card up to 32GB for saving video clips. The video resolution is up to D1 each channel, and the frame rate is up to 30fps (PAL). VR8800N works with all CCD/CMOS cameras; it is a new in-vehicle recording system that you can rely on.

DVR Specifications

Features

1. Unique design with lock to protect from illegal accessing;

2. H.264 main profile Video compression format;

3. Can work with power supply ranging from DC8V to DC36V;

4. Supports Manual Record, Motion Detect and scheduled Record;

5. Video resolution: D1/HD1/CIF/QCIF selectable for each channel; frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;

6. Supports 4 channels "Video & Audio" recording and playback simultaneously;

7. Supports 4 "alarm input" 1 "alarm output";

8. Video clips can be saved onto either SD card or HDD; Supports SD card up to 32GB and HDD up to 2TB;

9. Video file can be backed up in format H.264 or AVI;

10. Supports VGA high definition video/audio output;

11. Supports Mouse & IR remote control for easy operation;

12. Can work with 4 cameras simultaneously, and power all 4 cameras directly;

13. Multiple language options, covers almost all main languages all over the world.

Applications

Vehicle surveillance for truck, bus, taxi cab, private car, school bus, police patrol car, etc.

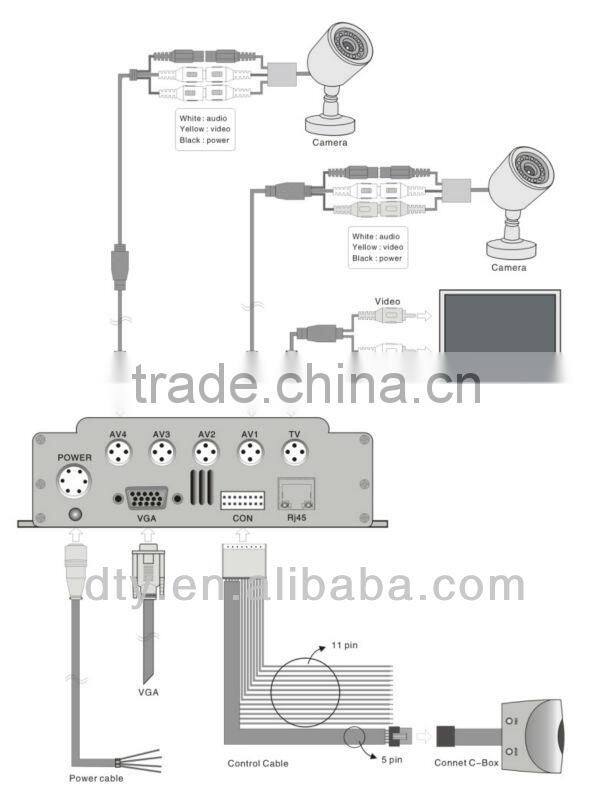

Connection Diagram

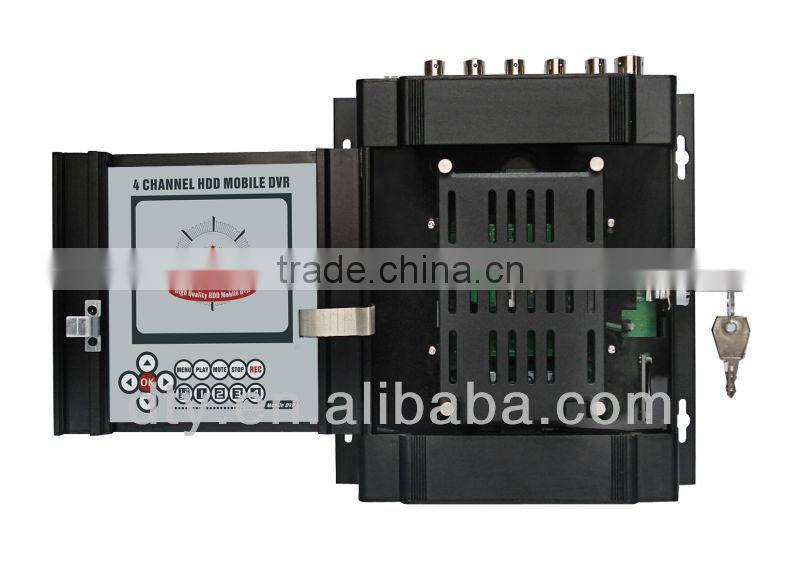

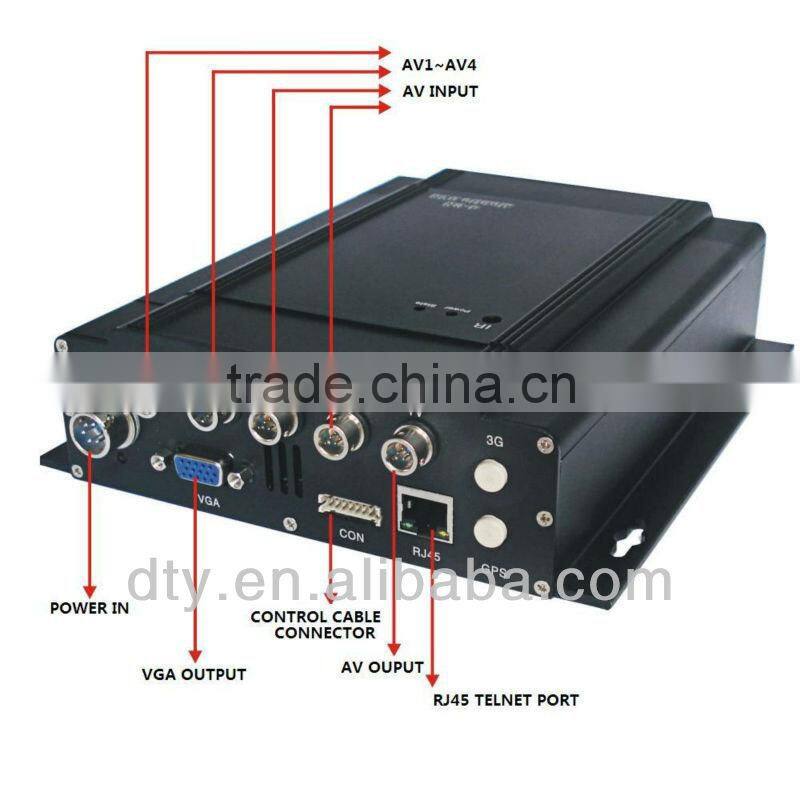

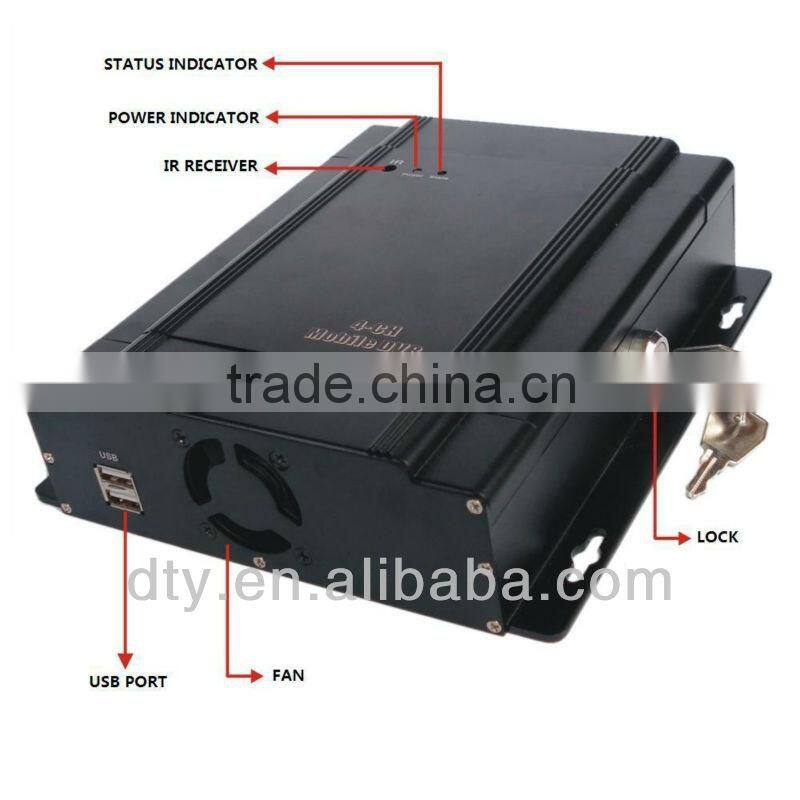

Structure

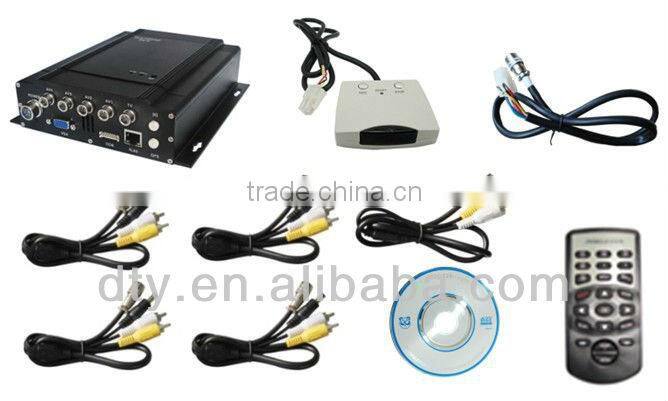

What's in the box?
