Fuel Injection Pump Test Bench

Specifications

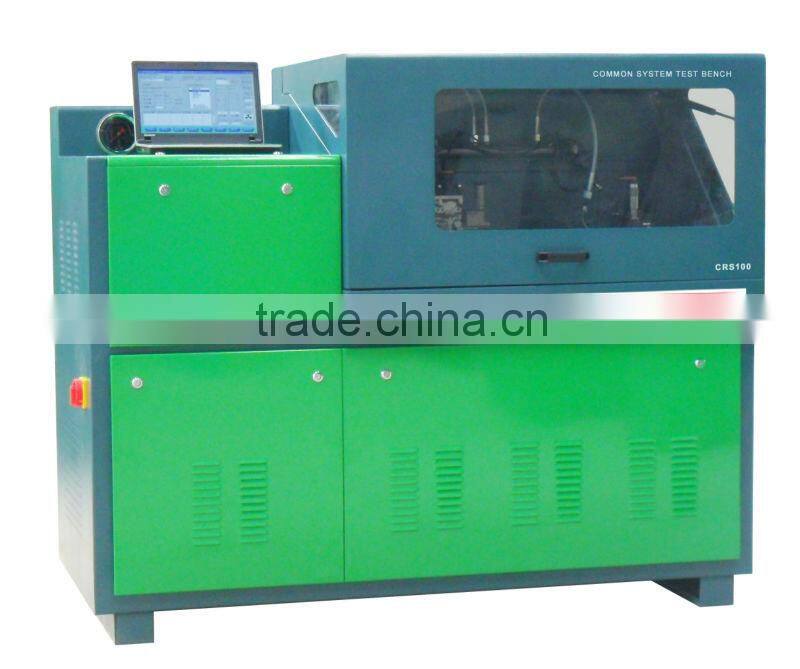

CRS100 High Pressure Common Rail Comprehensive Performance Test Bench

Independent development of the system, the two operating systems share a host, the data can be updated, convenient upgrade, simple to operate, improve work efficiency . Precise fuel temperature control system, high precision flow rate, the pressure sensor , High strength protective door, safe and reliable .

  The product is a well-known enterprise service station designated testing equipment

Functions:

Equipped with rapid detection fuel injector pump and injector operating software and standard database ,and the computer automatic testing.

For common rail pump test including:

(1) sealing test

(2) various rotational speeds of the plunger pump efficiency of oil test.The condition of rail pressure builds, stability and flow size

(3) under different rotation speed self-priming pump oil absorption capacity, oil pressure and oil flow rate test

(4) Performance tests for various pump fuel metering valve, of output oil control valve (M-PROP/ZME, PCV, DRV)

(5) The discriminant and testing of the camshaft phase sensor

For injector testing include:

1 common rail injector flushing

2 detection of common rail injector solenoid valve performance

3 detection of common rail injector sealing

4 detection of common rail injector working condition of the injection quantity

5 detection of common rail injector working condition of oil return value

6 contrast standard data obtained results directly

7 set up under the pressure and the pulse width of the spray atomization and perspective

Electricity: 380V/50Hz, or 220v/60 Hz, 3 phase
