Universal Tool Grinder MR-6025 With Drill Bits Sharpener
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
Universal Tool Grinder MR-6025 Include Drill Bits Sharpening
-
Universal Cutter Grinder MR-6025 With Drill Bit Sharpener
-
Universa Dexter Tools, Tool Grinder MR-6025
-
Universal Dexter Tooling, Tool Sharpener MR-6025
-
Universal Sharpener for Various Tools MR-6025
-
Universal Tool Grinder MR-6025 With End Mill Sharpening Machines
Product Details
| Condition | New | Type | Universal | |
| CNC or Not | Normal | Max. Grinding Diameter | 250mm | |
| Place of Origin | Zhejiang, China | Brand Name | MEIRI CHINA MACHINE | |
| Model Number | MR-6025 | Voltage | 220V | |
| Power(W) | 750W | Dimension(L*W*H) | 730*710*715mm | |
| Weight | 222kg | Certification | CE |
Product Description
Universal tool grinder MR-6025 with drill bits sharpener
Sharpening scope: In hole, outer annulus, column, trench, taper, end mill, disc cutter, lathe tool, square shape and diamond cutting tool, gear cutting tool and so on.
The working table uses dovetail guide rail or high precision straight line roiling guide rails,good back and forth movement, high stability, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper
Please browse our website to watch the operation video.
Technical parameters:
Model | MR-6025 |
Max. Grinding diameter | 250mm |
About worktable diameter | 350mm |
About workable traveling schedule | 150mm |
Elevating Distance of Wheel head | 150mm |
Rotating Angle of Wheel head | 360° |
Grinding head speed | 5000RPM |
Horse Power and Voltage of Motor | 3/4HP,380V |
Power | 1HP |
Inner bore of the grinding work piece | 10-50mm |
lateral feeding distance | 190mm |
Workable area | 130×550mm |
Elevating Distance of Wheel head | 160mm |
Height of the head holder | 135mm |
Taper hole of the main spindle of the head holder | mo-type 4# |
Grinding wheel | 150×16×32mm |
Dimension | 730×710×715mm |
Net weight / gross weight: | 212kg/222kg |
Optional Equipment | 50E grind spiral milling cutter ball end mill,R type lathe tool,graver and other taper milling cutter. 50K can grind drill bit ,screw tap,side mill,round bar and so on. 50D can grind end mill ,side mill and so on. 50B tablebox 50J thimble |
THE ACCESSORY:
|
|
| | |

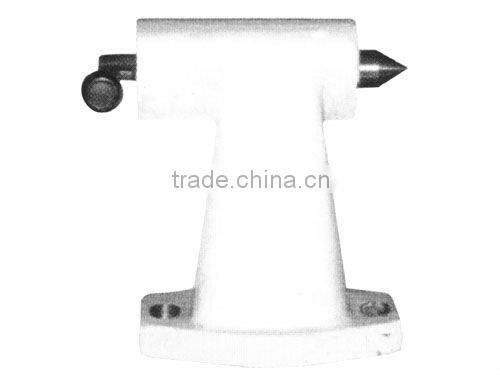

50E Spiral mill·ball cutter grinder | 50K Drill bit·screw tap grinder | 50D End-milling cutter grinder | 50J Thimble | 50B Toolbox |
1.Q: What is your MOQ of this item?
A: 1 set
2.Q: What is the delivery time?
A: 15-20days after receiving your T/T or Western Union.
3.Q: Is it all right to make customer's own brand name?
A: OEM is ok.
4.Q: Where is your Loading Port?
A:Ningbo/Shanghai,China port.
5.Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in drill bit grinder,end mill re-sharpener,screw tap re-sharpener,lathe tool grinder,saw blade re-sharpener,chamfer,universal cutter grinder,tapping machine and electrical tapping machine more than 10 years.
