Universal Cutter Sharpener U2 for Grinding Endmill and Drill Bits
- Ningbo/Shanghai
- Credit Card
You May Like
Product Details
| Condition | New | Type | Universal | |
| CNC or Not | Normal | Max. Grinding Diameter | 25mm | |
| Place of Origin | Zhejiang, China | Brand Name | MEIRI | |
| Model Number | MR-U2 | Certification | CE | |
| Weight | 60kg |
Product Description
Specifications

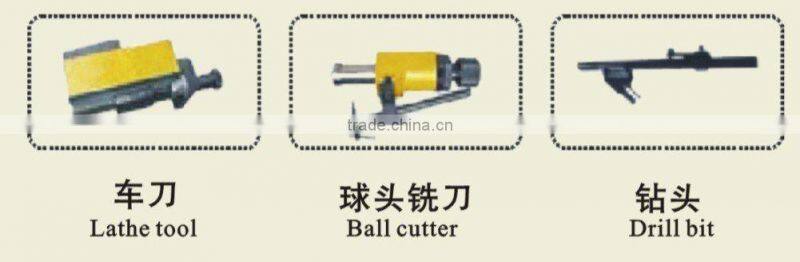

1.Universal cutter sharpener U22.With three equipments, can grind lathe tool, ball cutter and drill
3.Multifunctional, CE

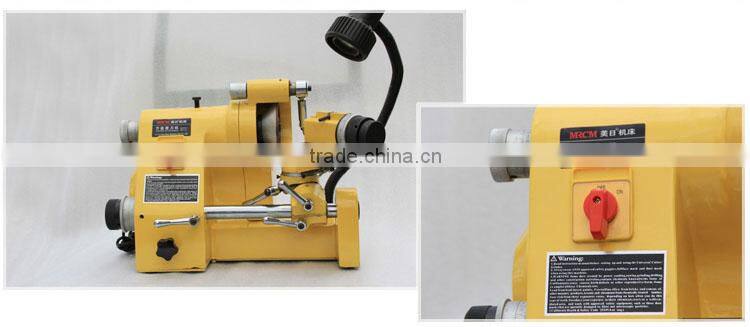

Universal Cutter sharpener MR-U2

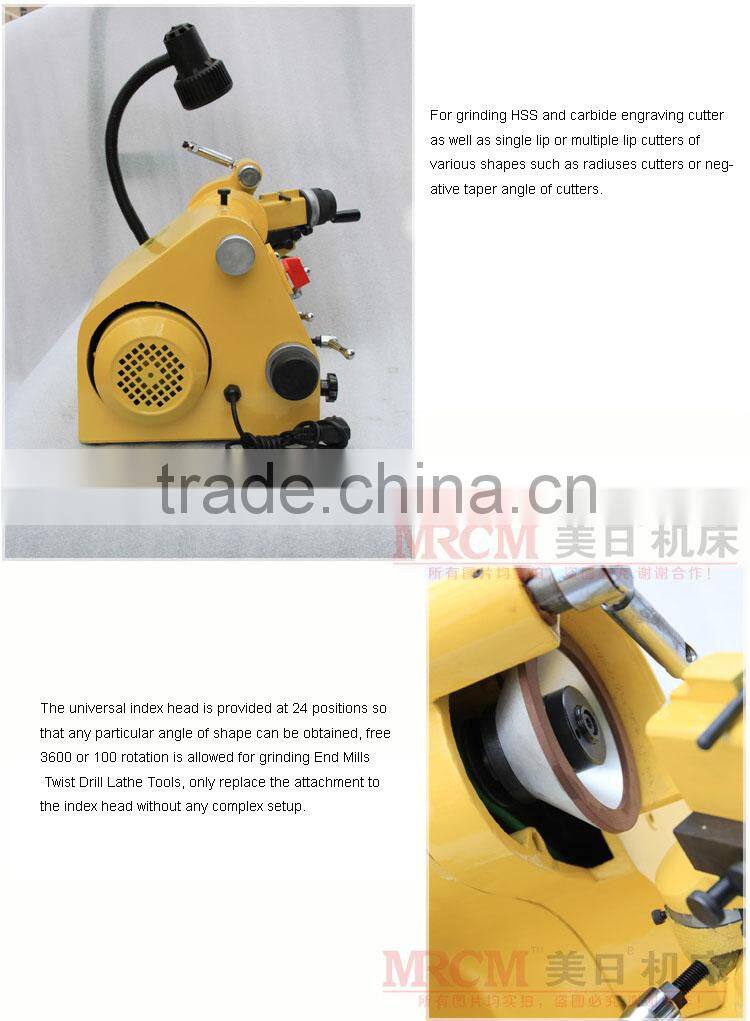

1. For sharpening HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.

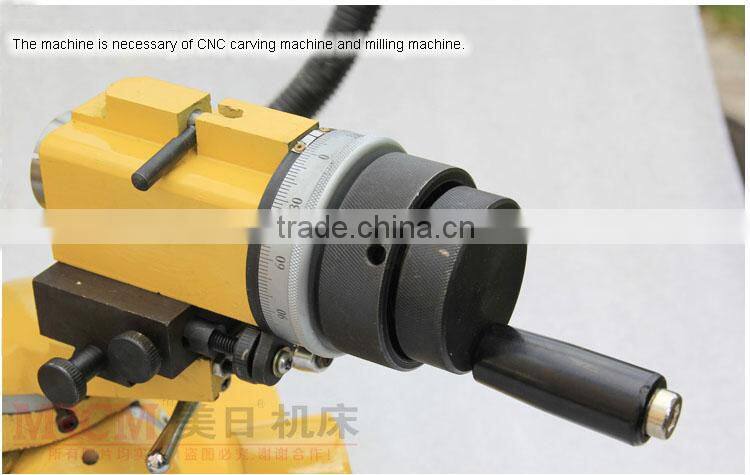

2. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills.Twist Drill.Lathe Tools, only replace the attachment to the index head without any complex setup.
Model: | MR-U2 |
Max. collet capacity: | Φ25 mm |
Max. grinding dia.: | Φ25 mm |
Taper angle: | 0~ 180 (degree) |
Relief angle: | 0~ 45 (degree) |
Negative angle: | 0~ 25 (degree) |
Motor: | 1/3HP 220V 50HZ |
Grinding spindle: | 5200rpm |
Grinding wheel: | Φ100×50×Φ20 |
Dimension: | 55×46×49cm |
Weight: | 60 kg |
Standard Equipment: | 3 collets: Φ4, Φ6, Φ8 |
Grinding Wheel ×1 | |
Twist drill grinding attachment×1 | |
End mill grinding attachment×1 | |
Lathe tools grinding attachment×1 | |
| |
Option Equipment: | Fourteen piece collets: Φ3, Φ4, Φ5, Φ6, Φ8, Φ9, Φ10, Φ12, Φ14, Φ16, Φ18, Φ20, φ22, Φ25 |
1.Q: What is your MOQ of this item?
A: 1 set
2.Q: What is the delivery time?
A: 15-20days after receiving your T/T or Western Union.
3.Q: Is it all right to make customer's own brand name?
A: OEM is ok.
4.Q: Where is your Loading Port?
A:Ningbo/Shanghai,China port.
5.Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in drill bit grinder,end mill re-sharpener,screw tap re-sharpener,lathe tool grinder,saw blade re-sharpener,chamfer,universal cutter grinder,tapping machine and electrical tapping machine more than 10 years.
