Home > Products > New Products > 16 ton capacity diesel forklift

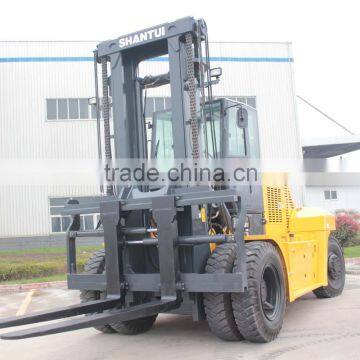

16 ton capacity diesel forklift

FOB Price

USD $1 - $90,000 / Set

1 Set(Min.Order)

Port Qingdao/Shanghai/Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	SHANTUI	Model Number	SF160
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	16000kg	Max. Lifting Height	6000mm
Min. Lifting Height	3500mm	Fork Length	2400mm
Fork Width	200mm	Overall Dimensions	7850x2560x3750mm
Certification	ISO9001/ISO14001/CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Advantages

Shantui16Ton USA engine forklift with forklift cameraequipment with China best Weichai engine, hydraulic transmission,wet brake drving axle,cabin and Air conditioner,electric control side shift and fork posioner.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.

Engine	Model	WP6G175
	Rated Output	129/2200	Kw/rpm
	Rated Torque	700/1500~1700	N·m/rpm
	No.of cylinder	6
	Bore×stroke	105X130	mm
	Displacement	6.75	L
Dimensions	Lifting Height	3500	mm
	LxWxH(With/Without Fork)	7850(5450)x2560x3750	mm
	Turning radius	5000	mm
	Mast tilt angle(F/R)	6/10	Degree
Performance	Travel speed(full load/no load)	28/30	Km/h
	Lift speed (with /without) load	350/380	mm/sec
	Max.gradeability	28	%
	Self weight	23000	Kg
Wheel&tires	Front	12.00-20-20PR
	Rear	12.00-20-20PR
	Wheelbase	3750	mm
	Min.ground clearance(mast)	210	mm

Detailed Images

Comfortable Drving Room.

Suspension Seat,joystick operating bar,Cabin and AC ,Radio and Fire extingusher.

Easy Operate.

Hydraulic assisted steering wheel,electric control bar

Front Working Lamp.

Shantui 16Ton forklift equipment with high quality front working lamp which makes the machine working at night.

Ergonomics Design.

When Design the forklift,Shantui pay attention to the ergonomics.Such like Anti-Slip Pedal,Wide view mast.

Long forks with multiple Function.

Using A 2.4Meter Long forklift,can be adjusted by posioner and side shifter.

Easy control system.

All the control bar were easy find,makes the operator easy to control.

Working Performance

Packing & Delivery

Shipping	By Lorry,From the factory to port ,by Ro-Ro shipment when shipping.
Packing	Nude Packing,forks disassembled.
No. of packets	Forklift 1 set Fork 2 pcs. Tool box 1 Set
Measurement	55CBM
Weight	23000KGS

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
