High Tonnage Double Acting Hydraulic Jack

FOB Price

USD $300 - $1,000 / Set

2 Sets(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai Tianjin Qingdao Guangzhou and etc.
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Other, Piston Cylinder, Piston Cylinder
Power	Hydraulic	Body Material	Steel
Maximum Stroke	500-1000max, 1000mm	Place of Origin	Henan, China
Model Number	STQ series	Brand Name	MC
Shaft Diameter	customised

Product Description

High Tonnage Double Acting Hydraulic Jack

Product description

High pressure electric hydraulic cylinder is powered by high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect jack. Hydraulic cylinder can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.

Product data

Model	Tonnage T	Stroke B-A mm	Own body height A mm	Extend height B mm	Outer diameter of oil cylinder mm	Dimension of plunger mm	Dimension of oil pump mm	Weight kg	Pressure	Recommend electric oil pump
STQ100-100	100	100	250	350	180	100	140	58	63MPA
STQ100-160		160	310	470				63
STQ100-200		200	350	550				78
STQ100-300		300	450	750				96
STQ100-500		500	650	1150				130
STQ150-100	150	100	260	360	219	125	180	58	63MPA
STQ150-160		160	320	480				69
STQ150-200		200	360	560				86
STQ150-300		300	460	760				103
STQ150-500		500	660	1160				255
STQ200-100	200	100	285	385	240	150	200	96	63MPA
STQ200-160		160	345	505				103
STQ200-200		200	385	585				116
STQ200-300		300	485	785				161
STQ200-500		500	685	1185				221
STQ320-100	320	100	310	410	330	180	250	196	63MPA	1.5KW 3KW 4KW 5.5KW
STQ320-160		160	370	530				240
STQ320-200		200	410	610				258
STQ320-300		300	510	810				311
STQ320-500		500	710	1210				456
STQ400-100	400	100	355	455	380	200	290	198	63MPA	3KW 4KW 5.5KW 7.5KW
STQ400-160		160	415	575				231
STQ400-200		200	460	660				264
STQ400-300		300	555	855				367
STQ400-500		500	755	1255				456

Product show

Double acting cylinders

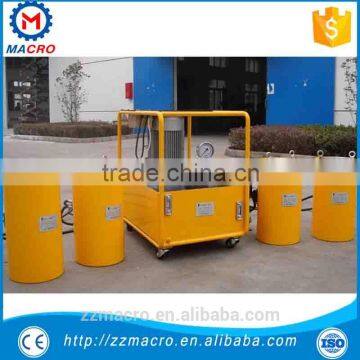

hydraulic jack cyliner with electrcial oil pump or hand pump

Single acting hydraulic cylinder

We also have Hollow Plunger Hydraulic Jack Cylinder for your reference.
