Home > Products > DRILL GRINDER > Carbide Drill Bit Re-sharpener MR-13A
Carbide Drill Bit Re-sharpener MR-13A
- Shanghai/Ningbo
 - T/T Credit Card

You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MEIRI CHINA MACHINE | |
| Model Number | MR-13A | Power Source | Electricity | |
| Type | Angle Grinder | Variable Speed | No | |
| Rated Input Power | 180W | Disc Diameter | 125mm | |
| Rated Voltage | 220V | No-Load Speed | 5300RPM | |
| Frequency | 50HZ | Disc(Wheel) Type | Grinding Disc | |
| Dimensions | 32*18*19cm | Weight | 10kg |
Product Description

Carbide drill bit re-sharpener, drill bit grinding machine .

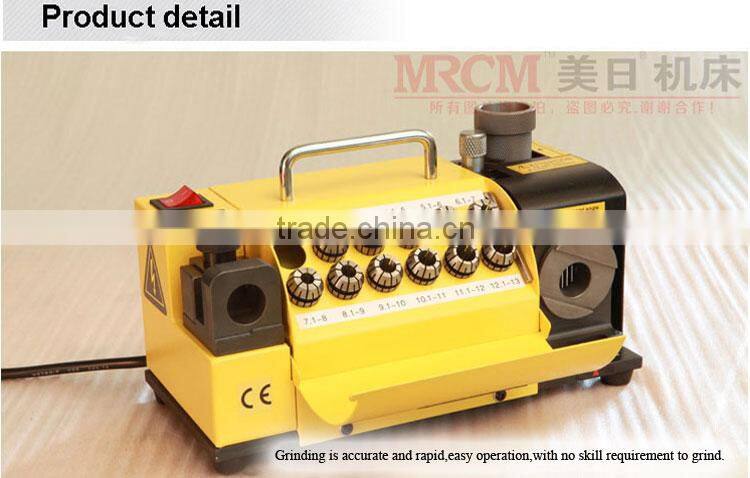

1.Grinding is accurate and rapid, easy operation with no skill to grind.
2.Economical price that greatly reduces the cost and improves the use effect.
3.With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5.Bearing shaft and locking unit.

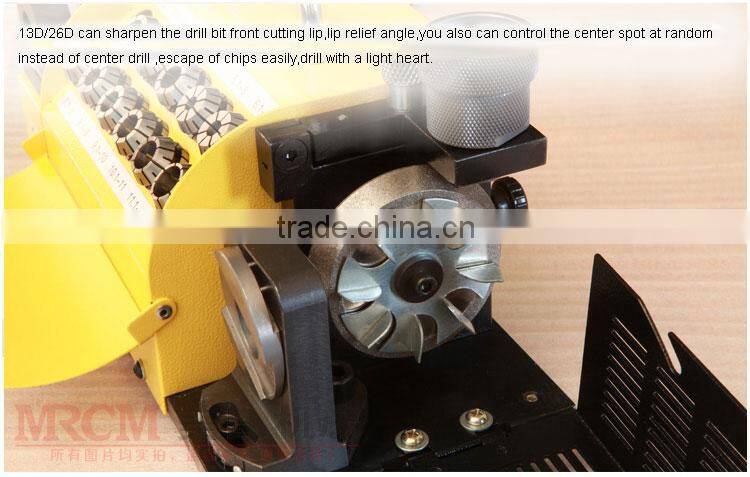

6.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
Model  | MR-13A  |
Grinding Range  | Φ2-Φ13(Φ15)  |
Point Angle  | 100°(90°)~135°  |
Power  | AC220V  |
Motor  | 180W  |
Speed  | 5300rpm  |
Dimension  | 32*18*19cm  |
Weight  | 10kg  |

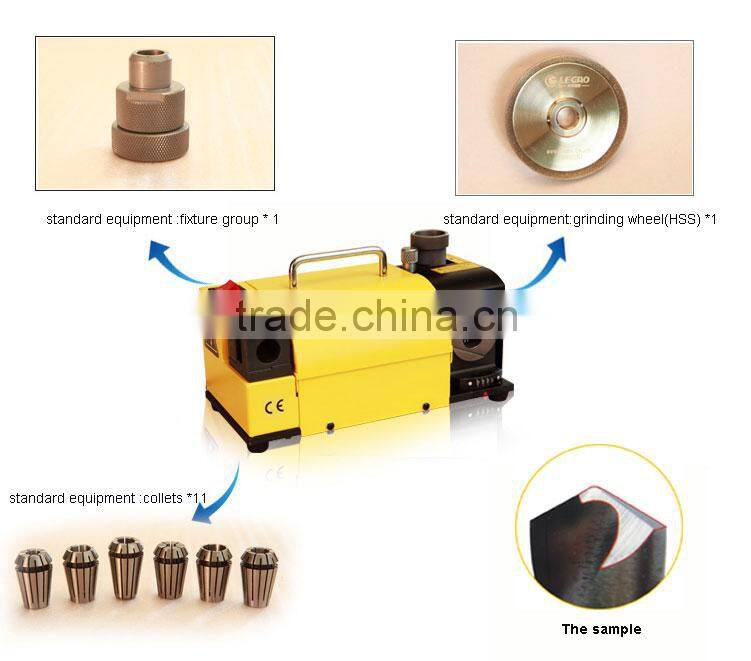

Standard Equipment  | grinding wheel :CBN (for HSS)×1  |
Eleven collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13  | |
collet chuck:(Φ2-Φ14)×1  | |
Option Equipment  | grinding wheel :SD (for Carbide)  |
collets: Φ2,Φ2.5,Φ3.5,Φ4.5,Φ5.5,Φ14,Φ15  | |
collet chuck:Φ15  |

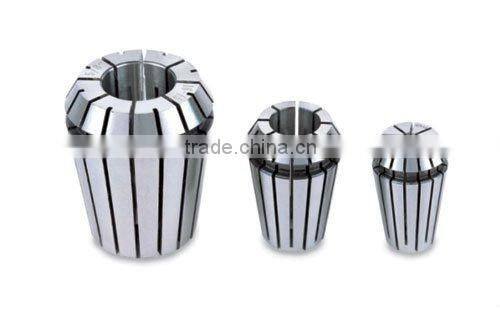

THE COLLET:

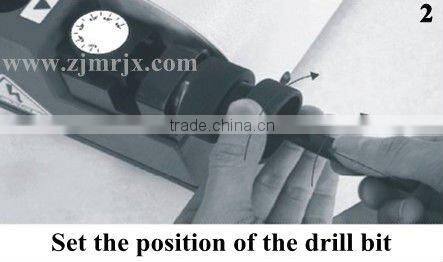

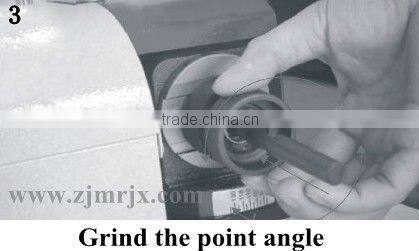

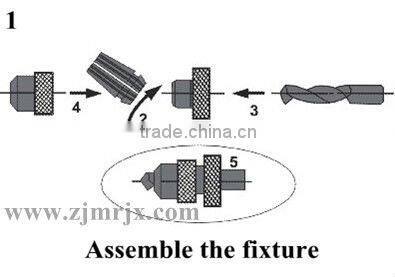

THE OPERATION:



1.Q: What is your MOQ of this item?
A: 1 set
2.Q: What is the delivery time?
A: 15-20days after receiving your T/T or Western Union.
3.Q: Is it all right to make customer's own brand name?
A: OEM is ok.
4.Q: Where is your Loading Port?
A:Ningbo/Shanghai,China port.
5.Q:Are you a manufactuer or trading company?
A:We are a manufactuer specialized in drill bit grinder,end mill re- sharpener,screw tap re-sharpener,lathe tool grinder,saw blade re-sharpener,chamfer,universal cutter grinder,air tapping machine and electrical tapping machine more than 10 years.
