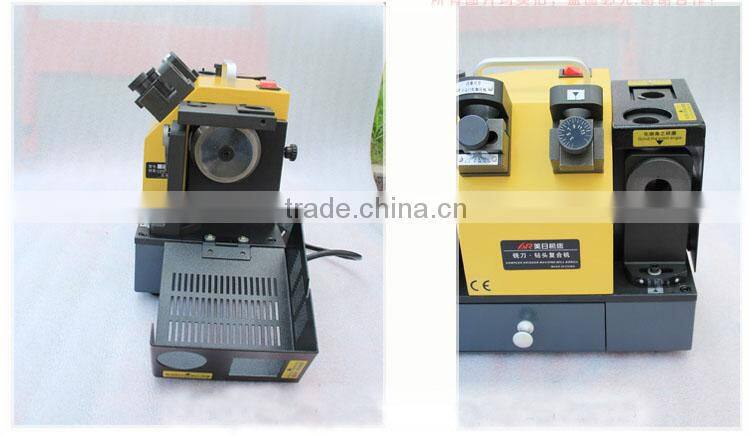

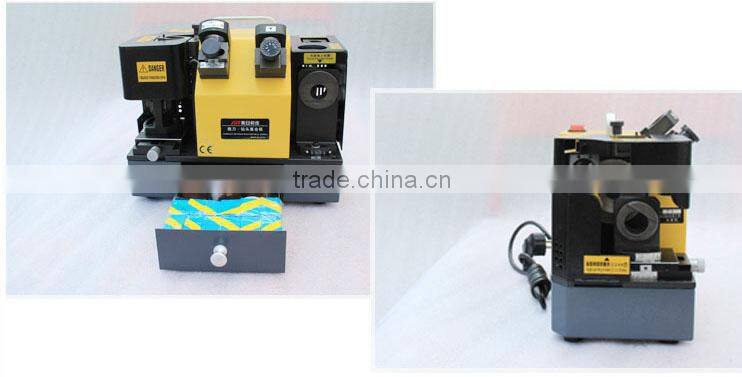

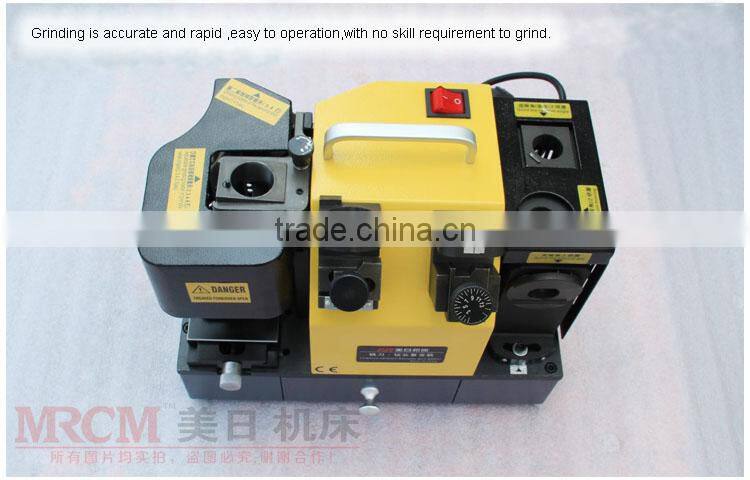

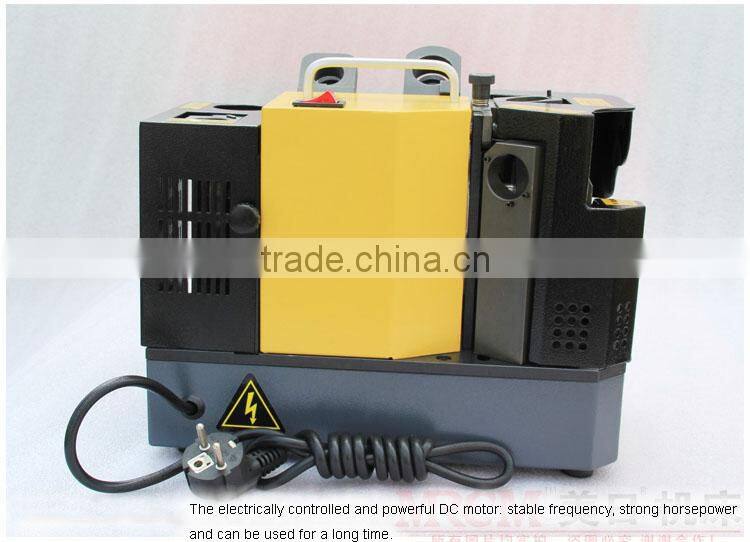

Portable Drill & Mill Re-sharpening Machine MR-F4
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | MEIRI MACHINE TOOL | |
| Model Number | MR-F4 | Power Source | Electricity | |
| Type | Angle Grinder | Variable Speed | No | |
| Rated Input Power | 180W | Disc Diameter | 125mm | |
| Rated Voltage | 220V | No-Load Speed | 5300RPM | |
| Frequency | 50HZ | Disc(Wheel) Type | Grinding Disc | |
| Dimensions | 32*21*20cm | Weight | 20Kg |
Product Description
1. Complex grinder machine mill & drill.
2. One machine has double function, with easy operation and saving cost.
3. With CBN or SDC(alternative), long service life.
4. The milling cutter can grind 2-flute, 3-flute, 4-flute, 6-flute and so on.
5. This product has China national patent.
6. Drill bit can sharpen the drill bit front angle, back angle and front angle, you also can control the centre spot at random instend of centre drill, easy vent scraps, relax drill.
7. Complex MR-13D and MR-X3./ Complex MR-26D and MR-X5.
Model: | End Mill | Drill |
Range: | Φ4-Φ14mm | Φ2.0-Φ14(15)mm |
Point Angle: | 0°~5° | 100°~135° |
Power: | 220V 180W | |
Motor: | 5300rpm | |
Dimension: | 37*23*30cm | |
Weight: | 20kg | |
Standard Equipment: | Drill side grinding wheel :CBN (for HSS)×1 | |
Mill side grinding wheel: CBN(for HSS)×1 | ||
one collet chuck for drill two collet chucks for end mill : 2,4 flutes×1 piece 3,6 flutes ×1 piece | ||
Optional Equipment: | Drill side grinding wheels :SD (for Carbide) | |
Mill side grinding wheel: SD (for Carbide) | ||
collet chuck(for drill):Φ15 | ||
