Shenzhen Launch Glass Connection Standoff Wood Mounting 12mm Glass
US$ 5 - 15
/ Piece
1 Piece(Min. Order)
- Shenzhen Port
- T/T Credit Card
You May Like
-
Inox AISI 316 Standoff Glass Clamp for Outdoor Grill Balcony Glass Railing Designs
-
Inox AISI 316 Standoff Glass Mounting Clamp for Stair Glass Railing
-
AISI 316 Threaded Standoff/ Rubber Standoff Pins for Indoor Stair Glass Railing Designs
-
Inox AISI 316 Standoff Glass Clamp for Glass Railings
-
Stainless Steel Double Glass Standoff With 200*100*10mm Back Plate
-
Threaded Glass Standoff/ Rubber Standoff Pins for Indoor Stair Glass Railing Designs
Product Details
| Place of Origin | Guangdong, China | Brand Name | KEBIl | |
| Model Number | SF-50 | Material | Other, Stainless Steel, Stainless Steel | |
| Mounted | Wall | Position | Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails |
Product Description
glass connection standoff wood mounting 12mm glass
Product Description
- standoffs for glass stair M12x 120 bolt
- for 8mm-19mm thick tempered glass panels
- to be fixed on wall or deck or concrete
- framless /semi framless glass railing system
- Brushed or polsihed
- 304 and 316 stainless steel
- 50x30mm body , 50x10mm cap , M12x120 bolt
Adjustable Glass Railing Standoff
Stainless Steel / Inox Standoff
Glass Railing Standoff
Side fixed installation

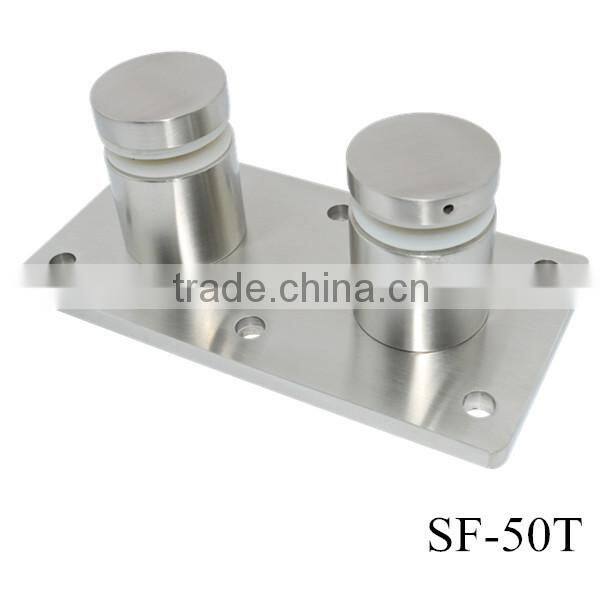

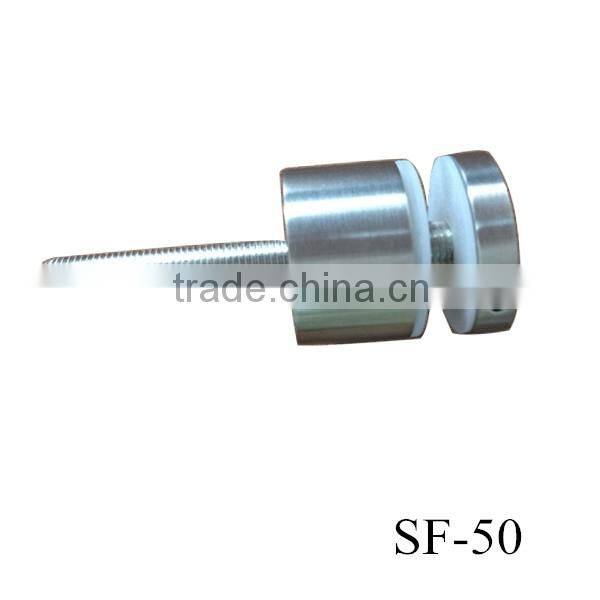

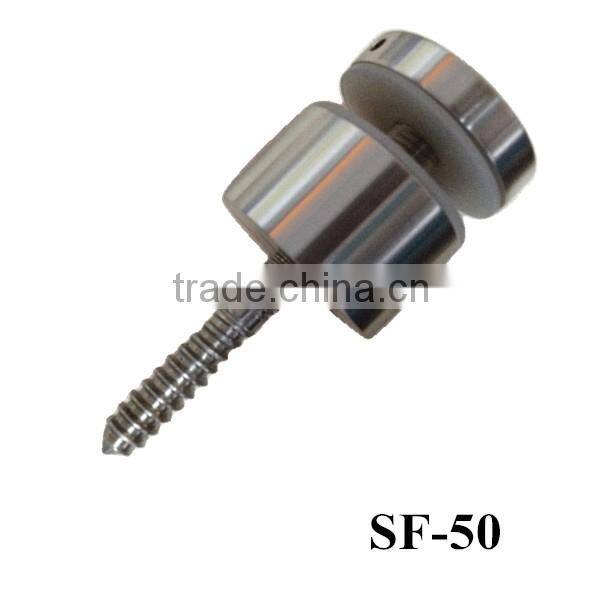

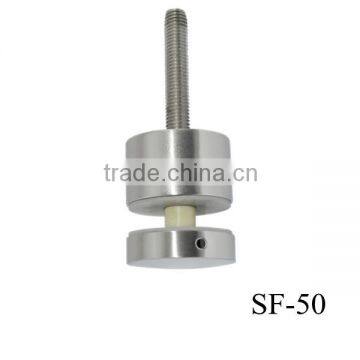

Our Model No.: SF-50
Finish: BRUSHED STAINLESS STEEL
Compact Design for Minimal Obstruction
Complete with Mounting Plate
For Use with 1/2" and 3/4" (12 and 19 mm)Tempered Glass Applications
Brushed or Polished 316 Grade Stainless Finishes Available

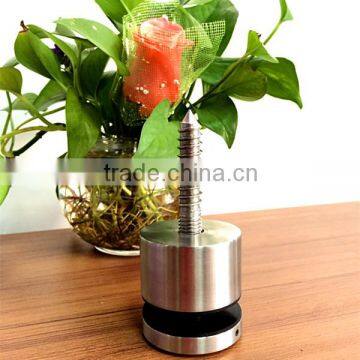

Designed for Wood or Steel Mounting Attachment
Our Glass Rail Standoff Fittings can be used two ways to mount glass up to 3/4" (19 mm) thick. The Drill-Through Method will allow flush mounting of the glass to the surface of the substrate. The steel back plate can also be fastened directly to steel supports, raising the glass off of the surface.
| Color: | Brushed Stainless |
| Mounting Plate Height: | 8" (203 mm) |
| Mounting Plate Width: | 4" (102 mm) |
| Glass Fabrication: | Two 3/4" (19 mm) Diameter Holes Per Fitting |
| Ship Via: | Can Ship BY UPS,DHL,TNT,FEDEX or Ship by Sea |

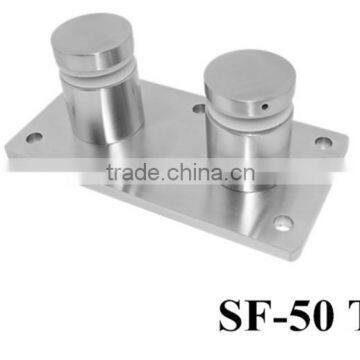

This versatile Standoff Fitting features 2" (51 mm)diameter caps on threaded bolts to secure the glass. The 2" (51 mm) diameter Standoffs are fastened to a 3/8" (9.5 mm) thick, 316 grade stainless steel plate that is pre-drilled for mounting. Two popular stainless finishes are available from stock.
SPECIFICATIONS:
For Use with 1/2" or 3/4" (12 or 19 mm) Tempered Glass (Do Not Use with Raw or Annealed Glass)
Glass Fabrication: Two 3/4" (19 mm) Diameter Holes Per Fitting
Spacing: Maximum Spacing Between Fittings is 24" (609 mm) Center-to-Center; Hole Spacing Between Standoffs is 4" (102 mm).
SPECIFICATIONS:
For Use with 1/2" or 3/4" (12 or 19 mm) Tempered Glass (Do Not Use with Raw or Annealed Glass)
Glass Fabrication: Two 3/4" (19 mm) Diameter Holes Per Fitting
Spacing: Maximum Spacing Between Fittings is 24" (609 mm) Center-to-Center; Hole Spacing Between Standoffs is 4" (102 mm).

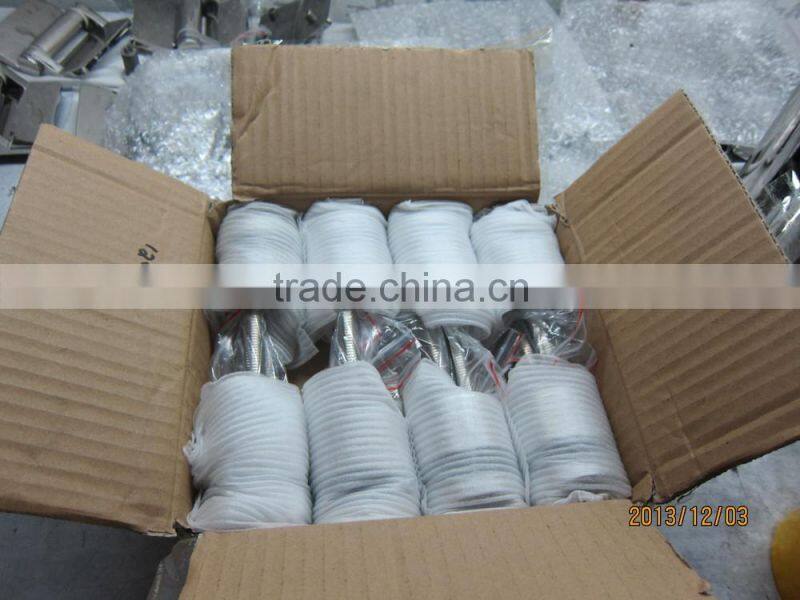

Packaging & Shipping
1 pc into a plastic bag , then wrapped with pearl bags , 10 pcs into a carton .

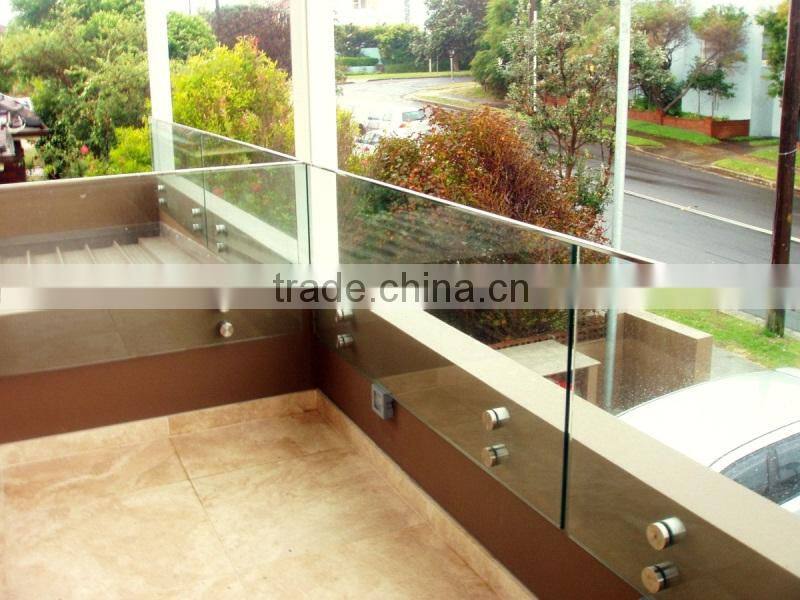

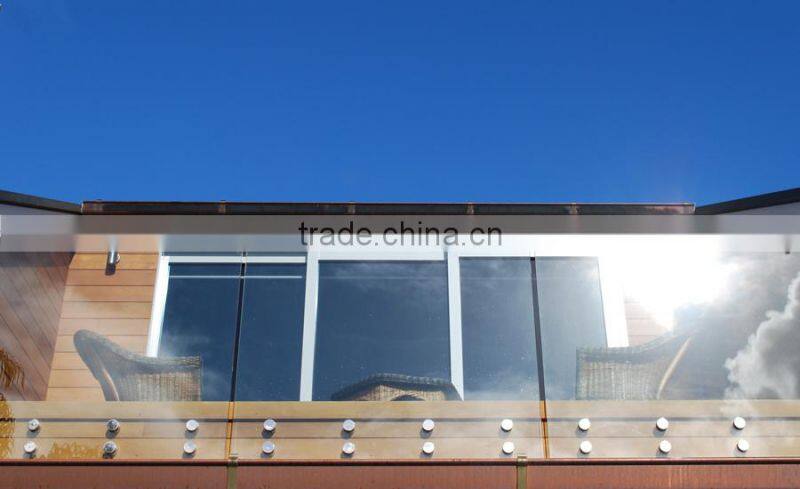

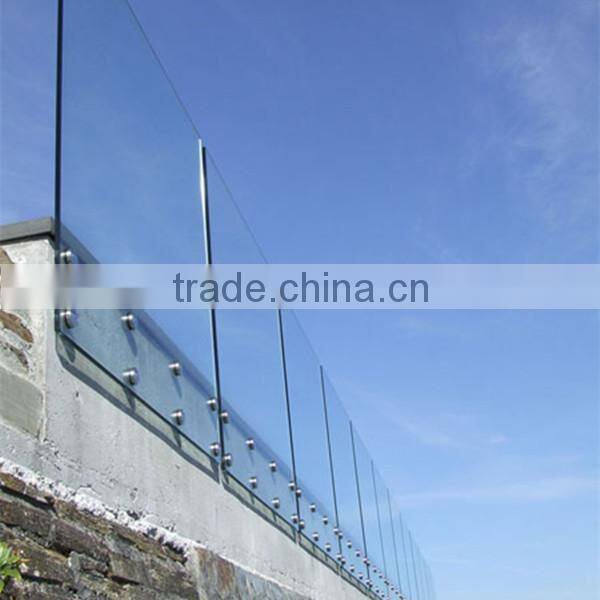

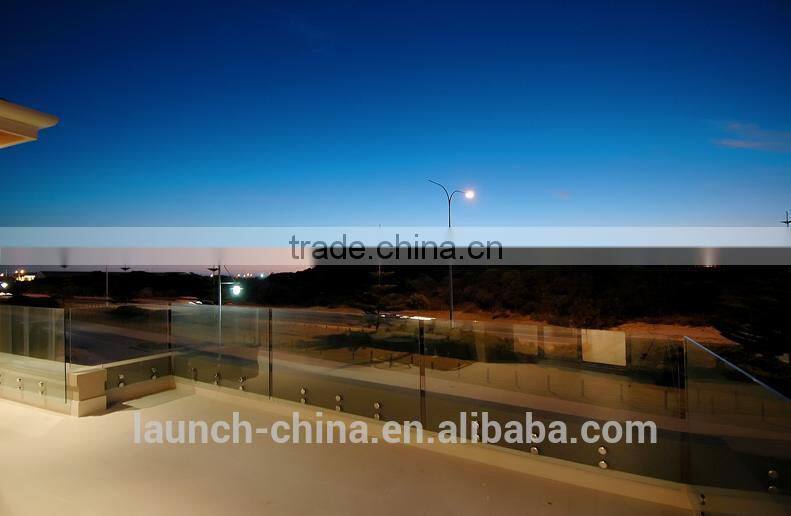

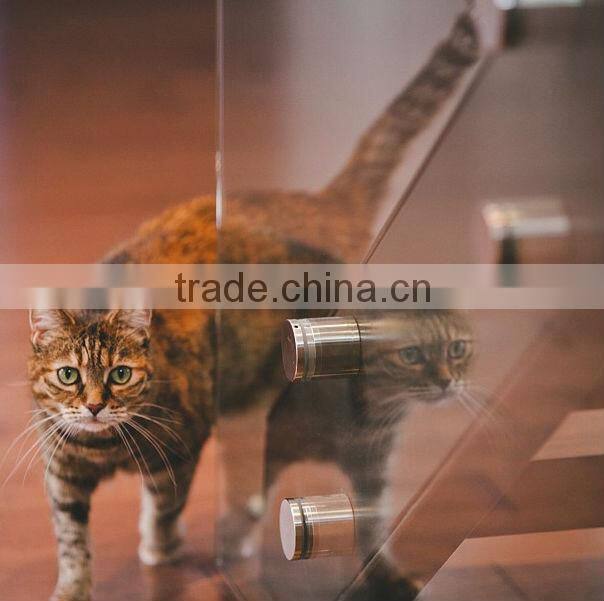

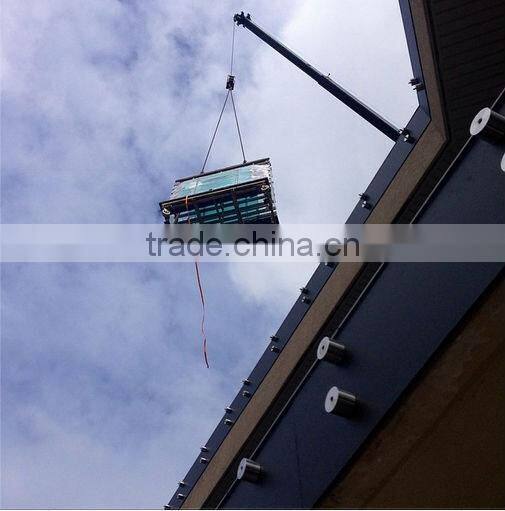

Installation projects for standoffs :
