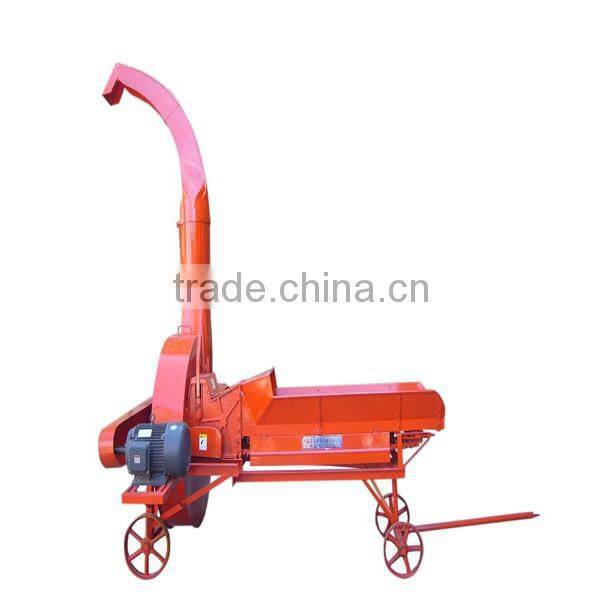

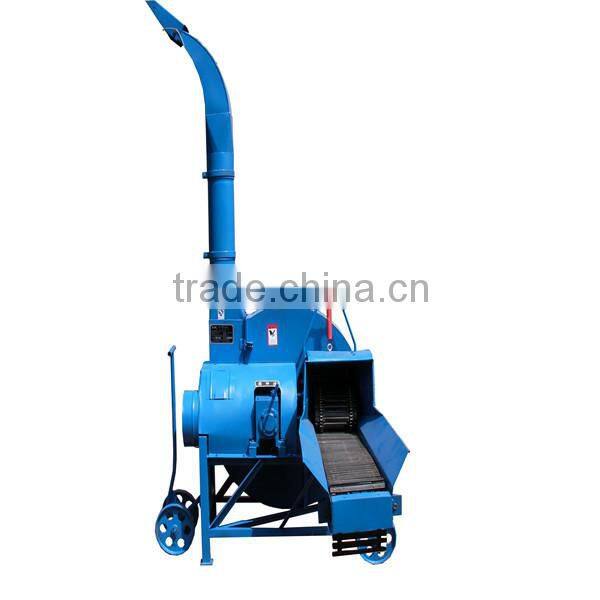

Good Reputation Motor Operated Grass Cutting Machine/ Straw Chopper

Good Reputation Motor Operated grass Cutting Machine/ straw chopper

Straw chopper is applied for the agriculture and the livestock to cut fresh or dry corn straw, straw, and various other kinds of forage grass and crops straw the agriculture livestock .

All components are as follows:

1, Feeding system: mainly made up of feeding table, up and down grass pressing sticks, fixed blade, and the supporting part.

2, Casting and sending system: consists of movable blade, cutter, lock screw, ect.

3, Transmission system: consists of v-belt, transmission shaft, gear, cordon, ect.

4, Conveying system: mainly consists of caster.

5, Protective device: composed of shields.

Working principle of the straw cutter:

The motor transfers power to the spindle. Then the gear on the other end of the main shaft transfers the power to the grass pressing stick through the gear case and the cordon, ect. When the materials come into the up and down grass pressing sticks, they will be clamped by the sticks and sent into the cutting system at a certain speed. The materials are discharged from the outlet after being cut by high rotary speed cutter.

Features

1. Compact structure, small size, light weight; with steel structure

2. Safety and reliable:special device to stop the feeding knife accidents

3. Supporting various power devices:electric motor, diesel engine, tractor

4. Blade with high quality steel,super wear resistant

Main Technical Parameters:

Packaging:  standard export package,siutable for long distance delivery

Shipping:    15 working days after down payment

  1.Passionater Salemen help you to well know our products and company

  2.Experienced engineer and workers pruduce your orders

  3.Professional inspector check products before delievery

  4.Excellent technician guide Assemble at your place

  5.Creative Designers Programme your indoor or outdoor side,and design customized according    to your demand

  6.Good after-sales service,offer installation CD or send our engineer to help you if needed

 Henan Dashan Machinery Co.Ltd is an import and export enterprise. The main products of the company are staw press block machine, stalk crusher, cotton stalk the grinder, multi-functionnal wood power grinding machine, cutting macine, grass shredder, drum chipping machine, wood peeling machine, wood chip screening machine, sawdust machine, conveyor, and dryer.

Delivery time: 15 workdays after receiving the deposit

Payment term: 50% as prepayment by T/T and the balance before delivery from China.

Quality Guarantee Terms:

Quality guarantee term is one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
