2014 Hot Sale Solar Cell 210W Solar Panel

Electrical characteristics

Under STC (irradiance 1000W/m2, module temperature 25℃, AM1.5)

Model number: SUN-M210M

P(max):  210W

V(max):   30V

V(oc):     36V

I(max):   7A

I(sc):     7.33A

Power tolerance:  ±3%

Mechanical Characteristics

Cell type:  6 inches

Cell arrangement:  72

Dimensions (mm):       1640*992*40

Weight (kg):   19

Frame:    anodized aluminum alloy

Junction box:  IP65 rated

Wind loads:   2400 Pascal certified

Output cables: double insulated solar cable, MC or compatible connection

Security data

High voltage test:       3000V DC/max, 50MA

Surface maximum load capacity:   200kg/sq.m

Allowable hail load:    225mg steel ball down from 2m height

Highlights of modules

.  100% tested by EL (electroluminescence) technology

.  High efficiency of selected cells

.  High transmittance, low iron tempered glass with

enhanced stiffness and impact resistance

.  Anodized aluminum alloy frame with high mechanical

strength for easy installation

.  Anti-aging EVA and high flame resistant back sheet, to

provide long-life and enhanced cell performance

.  Outstanding electrical performance under high

temperature and low irradiance conditions

HUBEI ETERNAL SOLAR CO.,LTD. is a high-tech enterprise integrating the research, development, production and sales of solar photovoltaic products. It was established and settled in Jianshi Industrial Zone of Hubei Province in September 2007 with the registered capital of 50 million Yuan.

The company has implemented total industrial output value 820 million Yuan including export trade volume 20 million dollars, which contributed profits and taxes 180 million Yuan. At the first half of this year, our company have achieved output value 180 million Yuan including export trade volume more than 2million dollars. And we have successfully listed on the stock market WUHAN EQUITY EXCHANGE on December 18^th,2013. The company referred to as “Eternal Shares”, the company code 100133, 50 million shares, listed price 21.8 Yuan/share, market capitalization 1.09 billion in total.

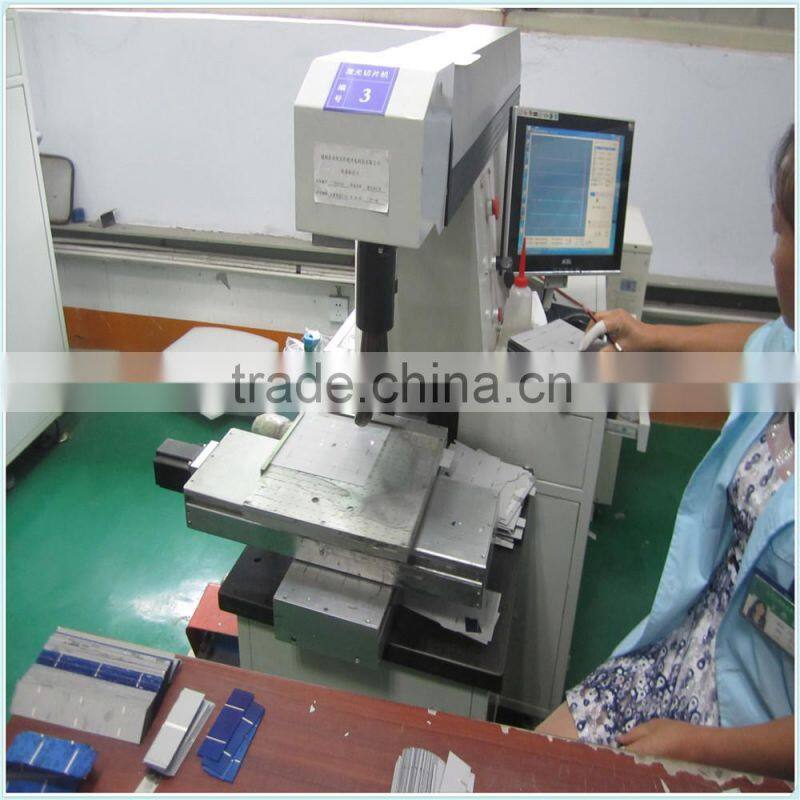

cell cutting

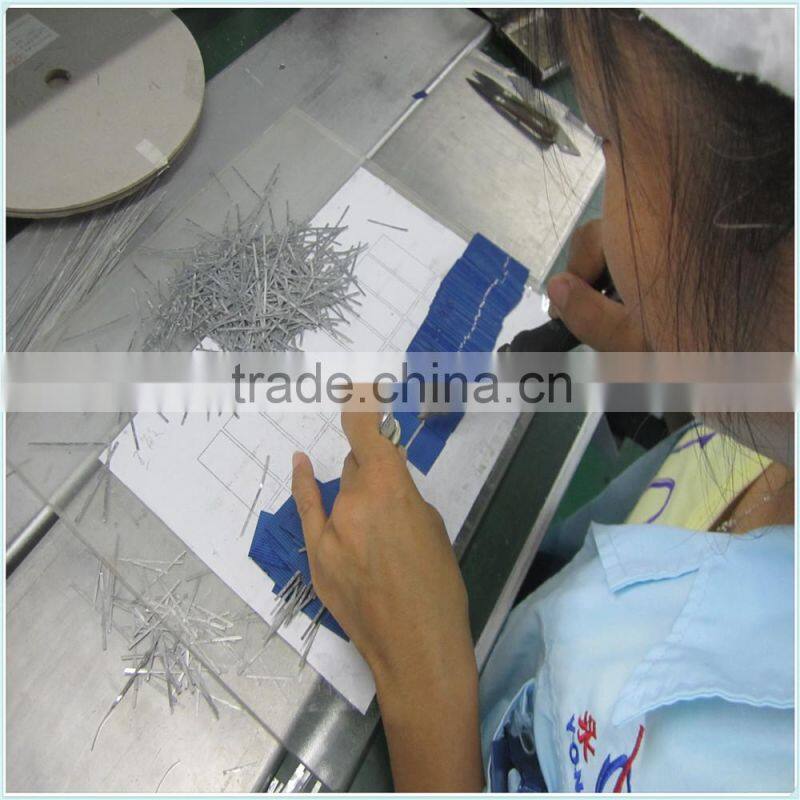

welding

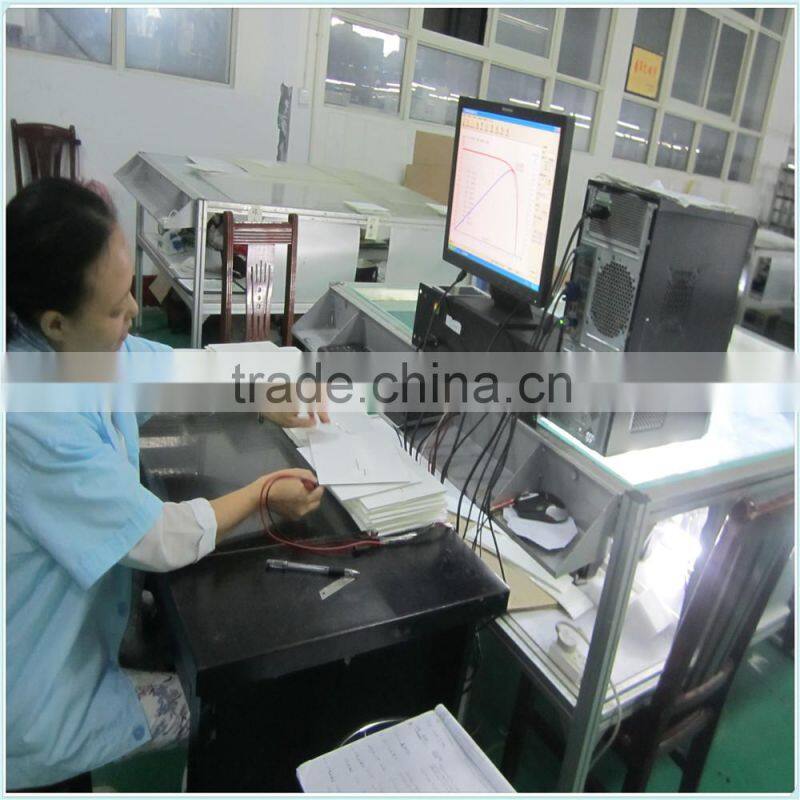

testing

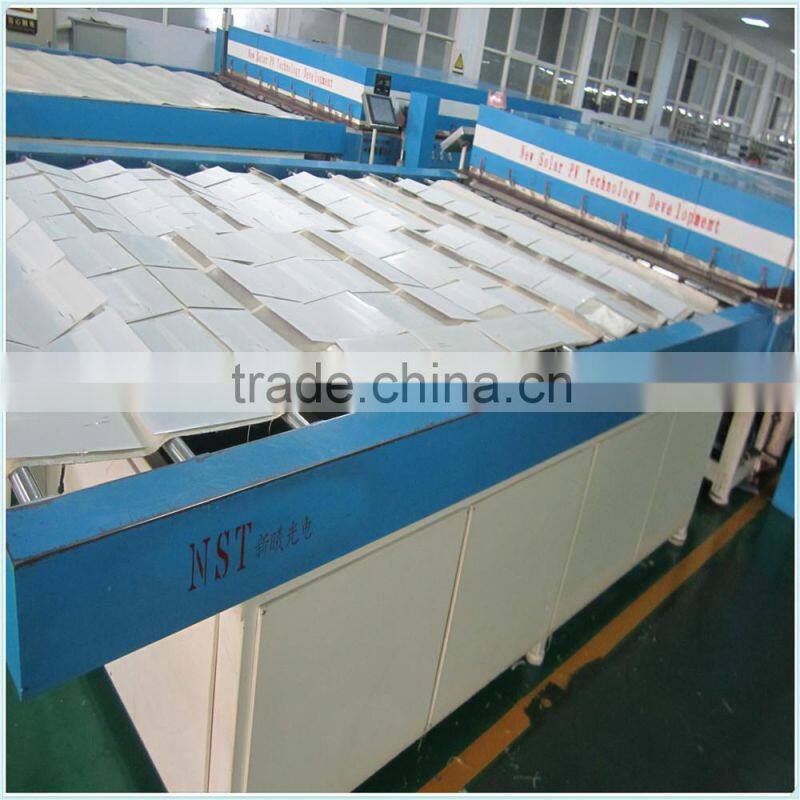

lamination

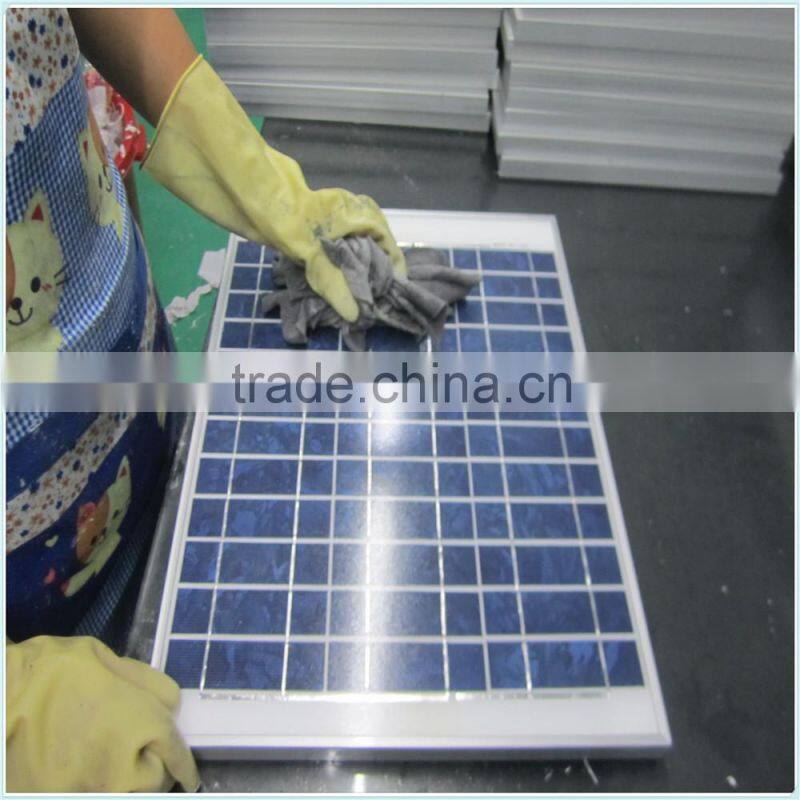

cleaning

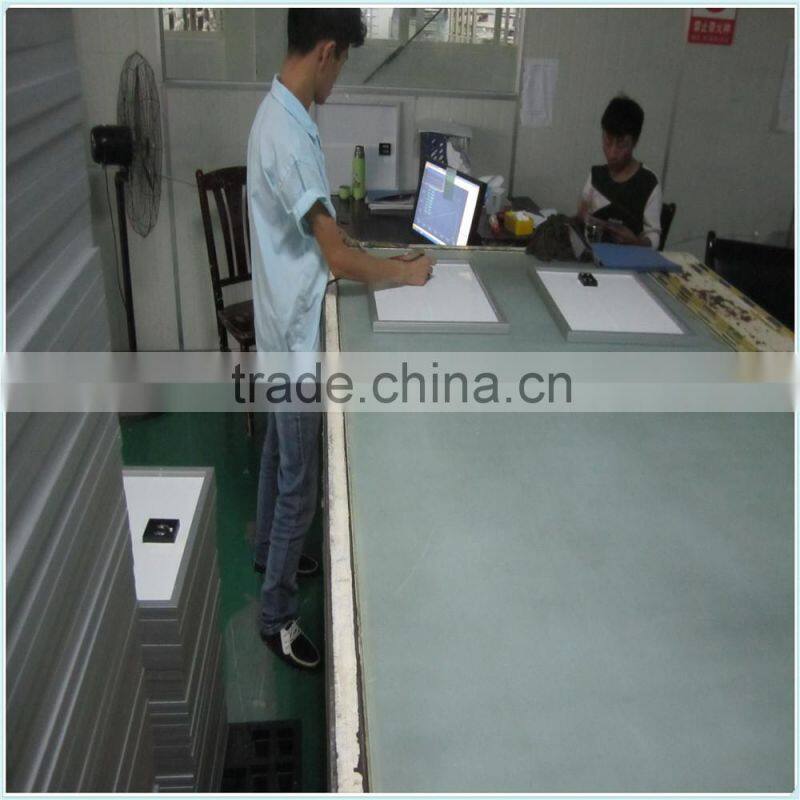

testing

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Jianshi, Hubei, China, near Wuhan. You are warmly welcomed to visit us .And before you take off from your country, please let us know. We will show you the way, or arrange time to pick you up if possible.

3. Q: Do you provide free sample?
    A: Usually we do not offer free sample.

4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.

5. Q: Could you print our company LOGO on the nameplate and package?

   A: Yes, we can do that.

6. Q: Do you accept custom design on size?

   A: Yes, if the size is reasonable.
