Home > Products > 10Gigabit Ethernet Switch > 24 ports 10Gigabit Ethernet Switch

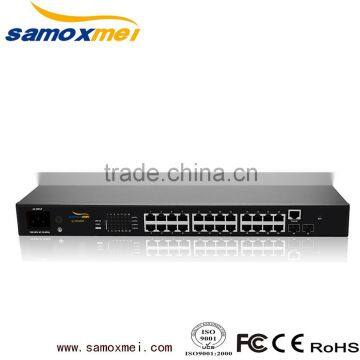

24 ports 10Gigabit Ethernet Switch

FOB Price

USD $330.00 - $400.00 / Piece

10 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Ports	24
Transmission Rate	10/100/1000Mbps	Function	LACP, QoS, SNMP, VLAN Support
Communication Mode	Full-Duplex	Certification	CE ROHS
Switch Capacity	88Gbps	Brand Name	Samoxmei
Model Number	SL-ES5826XF	Place of Origin	Guangdong, China

Product Description

10Gigabit Ethernet Switch SL-ES5826XF is standard 2-layer non-blocking switch. Provide 24 10/100/1000M RJ45 ports, 2 10GE SFP+ ports and 1 Console port. Based on high-performance ASIC chip technology, the modular structure design, which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. Very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.

Features

1 . High performance

With 88G backplane bandwidth

Hardware routing, wire-speed 3rd layer switching packet forwarding rate of 65.472Mbps

Can be deployed in the core of metropolitan area network , and provides several final 1 km Technology

2 . Safety

Provide DOS, distributed denial of service, deception and virus defense

Support IEEE802.1x, provide port-based user authentication, network shield, safety control, and strategy control technology

Restrict maximum number of connected hosts port, with multi-channel Ethernet interface binding, increasing bandwidth and system redundancy

Powerful ACL, support for L2-L4 layer data filtering

Support QinQ function

Strategy control list, flow regulation

3 . convenient use and maintenance

use clustering technology, support for more than one device stack, with a unified IP Address to carry on centralized management and address resources savings

all kinds of management method through Web, SNMP and so on

support XModem protocol, can be used to upgrade software and BootRom by TFTP/ZMODEM

support DHCP server and relay functions, dynamic allocation of IP address

support SFP+, but also downward compatible XFP

provide redundant power supply, quick failover and quick connection, greatly increasing the reliability of the system

4 . powerful flow and broadcast management

automatic detecting and broadcast storm restraining, support for IGMP message detection, effectively limit the spread of broadcast message

support full duplex mode and half duplex mode flow control

support Ethernet interface with 1M as the rate limiting step

advanced buffer management, support 802.1p protocol, 8 transmit queues per port mapping 802.1p 8 priority

support IP multicast and QoS

Specification
Model No	SL-ES5826XF 10Gigabit Ethernet Switch
Chipset	Broadcom BCM533461+ BCM502821
Basic characteristics
Fixed port	24 10/100/1000M RJ45 Electrical ports, 2 10G ports, 1 Console port
Backplane bandwidth	88Gbps
Packet forwarding rate	65.472Mpps
Processor	RISC 400MHz
Flash memory capacity	16MB
The memory capacity	128MB
Address table	16K
Packet Buffer	3MB
Product characteristics
Spanning tree	Support STP, RSTP, MSTP
Security Features	IP+MAC+PORT+VLAN binding ARP inspection DOS defend Port protect IP Source Guard binding
VLAN	Support port-based VLAN Support 802.1Q labeled VLAN Support for Private Vlan
Flow control	Based on a standard IEEE 802.3x flow control Using IEEE 802.1Qbb priority flow control
Broadcast control	Restraining broadcast storm, stop sending so long as reaching a critical point
Mlticast control	IGMP Snooping multicast message automatic monitoring
Port binding	Each group of a maximum of 8, while support 32group LACP dynamic or static polymerization
Port mirroring	Support based on flow classification mirroring and port mirroring
Characteristics of DHCP	Hardware support for IP ACL, MAC ACL, Vlan ACL Hardware support for port based user IP+MAC+Vlan ID+ user account a variety of factors combined to bind Support IP Source Guard Support WEB interface user authentication User classification management and password protection Safety control technology Policy control list
Quality of service	IEEE 802.1Qau congestion mechanism Each port 8 send queue mapping 802.1p 8 priority DRR, WRR, SP and FIFO queue scheduling algorithm Best-Effort Service Differentiated Service Strict Priority Weighted Round Robin First come first served TOS to mark RTS
Network management	SNMP v1/v2/v3 Telnet WEB interface Support the fan, temperature, system log, hierarchical alarm
Physical characteristics
Power characteristic	AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power	≥60W
Indicator lamp	Power indicator, indication of system, connecting / transceiver instructions
Environment Humidity / Temperature	0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation
