China Industrial Wood Chipper With Diesel Engine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Wood Chipper | |
| Use | to make wood chips | Power Type | Diesel | |
| Production Capacity | 95% | Place of Origin | Henan, China | |
| Brand Name | DSM | Model Number | as required | |
| Dimension(L*W*H) | according to machine model | Weight | according to machine model | |
| Certification | CE | Warranty | two years after sale | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China Industrial Wood Chipper with Diesel Engine
Application of China Industrial Wood Chipper with Diesel Engine:
To cut fiber materials, such as wood log, tree branch, bamboo, coconut shell, sugarcane, cassava, etc, into small chips or flaker. The Largest feeding size can be <480mm, and the final chips size is beween 0-30mm, adjustable.
Raw materials for China Industrial Wood Chipper with Diesel Engine: |
The raw material could be wood logs, branch, barks, stump, tree root, coconut shell, stalk materials, slab, waste veneer, waste pallet, bamboo, and other fiber stems, etc. |
Final products of China Industrial Wood Chipper with Diesel Engine: |
The final size of wood chips is less than 30 mm, and it is adjustable according the customers' different requirements. |
There are two kinds of China Industrial Wood Chipper with Diesel Engine in Dashan factory: the disc wood chipper and the drum wood chipper, please refer to the following information to choose the one you need:
Main Parameters of Disc Wood Chipper: | |||||
Model | Power(kw) | Capacity (t/h) | Cutter diameter | Weight(kg) | Blade qty |
400 | 7.5 | 0.8-1.5 | 400 | 370 | 4 |
500 | 11 | 1.5-2 | 500 | 400 | 4 |
600 | 15 | 2-3 | 600 | 450 | 4 |
800 | 22 | 3-6 | 800 | 550 | 4 |
950 | 30 | 5-8 | 950 | 800 | 4 |
1100 | 45 | 6-9 | 1100 | 1650 | 4 |
1210 | 75 | 8-10 | 1210 | 2100 | 4 |
1410 | 90 | 10-15 | 1410 | 2800 | 4 |

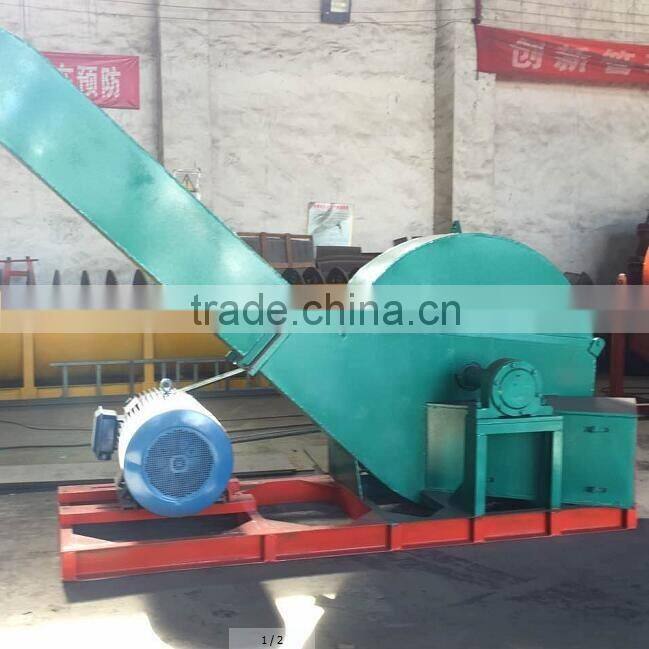

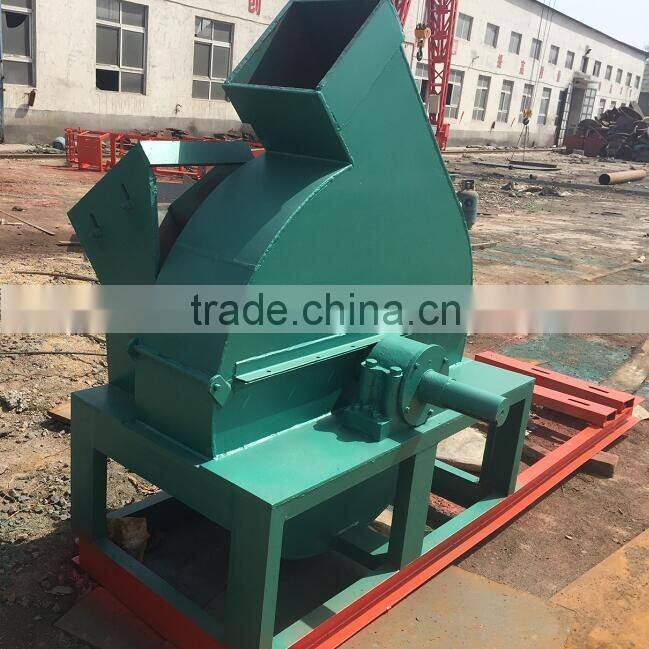

Pictures of the Disc Wood Chipper: | |||||
|
| ||||
The Disc Wood Chipper can be customized based on the following information: | |||||
| | |||||
Main Parameters of Drum Wood Chipper | |||||
Model | BX215 | BX216 | BX218 | BX2113 | |
Inlet size(mm) | 160*400 | 230*500 | 300*680 | 450*700 | |
Fly cutter(pcs) | 2 | 2 | 2 | 2 | |
Rotary speed(rpm) | 592 | 590 | 650 | 500 | |
Max feeding size (mm) | 160 | 230 | 300 | 450 | |
Wood chip size(mm) | <30 | <30 | <30 | <38 | |
Capacity (t/h) | 3-4 | 7-8 | 12-15 | 15-30 | |
Machine power(kw) | 45 | 55 | 110 | 200-250 | |
Feeding power(kw) | 2.2-3 | 3-4 | 4-5 | 7.5*2 | |
Pump power(kw) | 1.5*1 | 1.5*1 | 1.5*1 | 3*1 | |
Overall dimension (mm) | 1470*1550*970 | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 | |

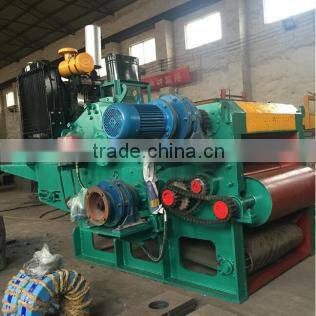

Pictures of the Drum Wood Chipper: | |||||
| | ||||
The Drum Wood Chipper can be customized based on the following information: | |||||
| |||||
Dashan Customers from all over the word:
Welcome to ask us for more details.
