Hot Sale Chain Hammer Crusher

Specifications

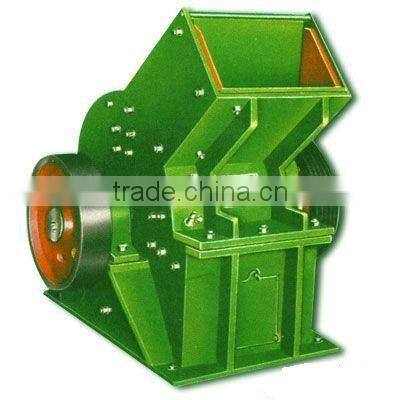

Hot sale Chain Hammer Crusher

Hammer crusher is also called Hammer breaker. It is widely used to crush brittle, medium-hard materials for mining, metallurgy, cement, coal, metallurgic, construction material, road building, and petroleum &chemical industries. And the Chain Hammer Crusher series are regarded as the preferred equipment, because they have the featuers of less investment, high efficiency, small volume, light weight, simple structure, easy operation and maintenance, high  ratio of crushing, even product  size, high producing capacity, etc. Chain Hammer Crusher can be usded as  medium size and fine crusher. The highest compressive strength is 320Mpa.

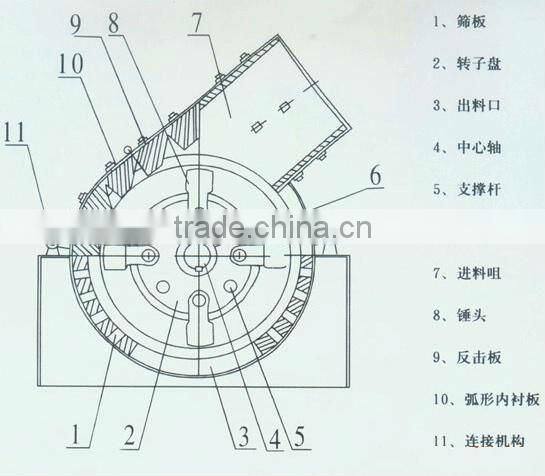

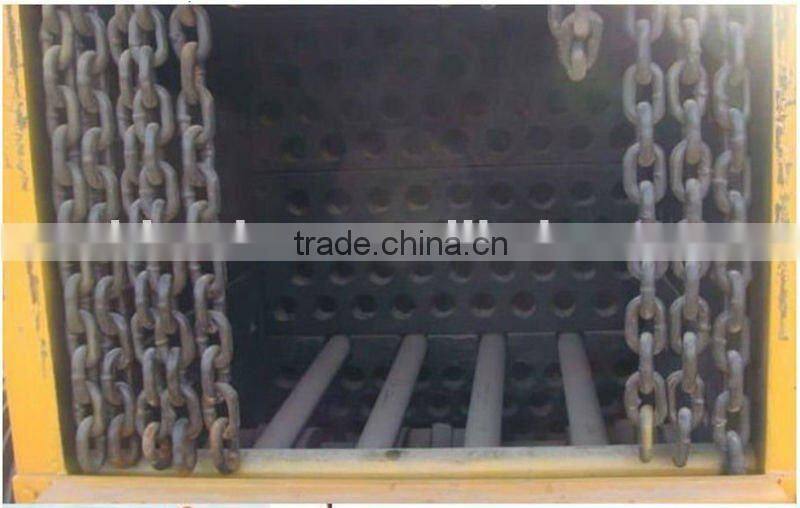

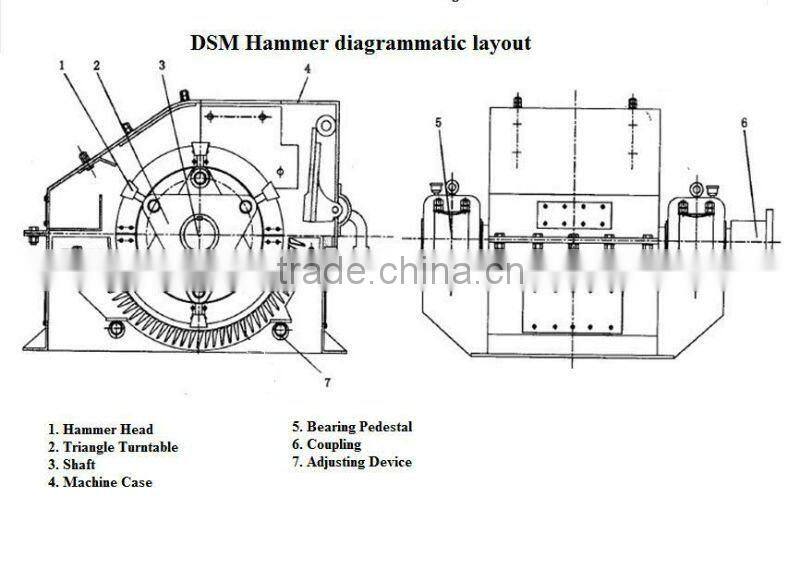

Chain Hammer Crusher is mainly composed of casing, rotor, hammers and bars. The casing is divided into two parts: up casing and down casing, which is connected by welding steel; other parts are connected by screws. The inside of casing is high manganese steel lining board, which is easy to be changed. There are several hammers in the spindle, which make up of rotor together with turntable and wear hammer shaft. It works through motor and V-belt to drive spindle and rotor rotating, so that centrifugal force producing by the hammer rotating spread out. Then when the big material is put into the crushing chamber, it is crushed by the high speed hammer. Afer those process, the standard materials are screened out by the down bar and non-standard one is left on the crushing chamber and is crushed again. In order to avoid clogging, the humidity of the material should be below 10%-15.

 Operating principle of Hammer Crusher:
The motor drives the rotor of the hammer crusher through the belt  to rotate at a high speed.The materials are sent into the crusher and are crushed by the high speed impacting, cutting and grinding of the hammer. Under the rotor is the sieve, the standard size products can be discharged through the sieve. While the large size products are brought back to the crushing area by the hammer and being crushed again.

Advantages:

1. The hammer heads adopt new technology casting. They are durable and impact resistance.

2. The dischare size can be adjusted according to the customers’ need.

3. The sealing body structure solves the  problem of crushing plant dust pollution and gray body leakage.

4. The overall design has attractive appearance, compact structure, less easy damaged parts, convenient maintenance.t
