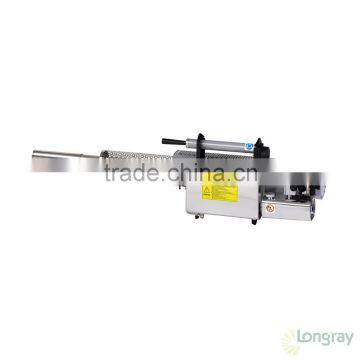

Longray TS-36S thermal fogger and fogging machine

Feature

High quality level, long life using.

The TS-36S uses a high powered pulse jet engine to produce dense, heavy thermal fog.

3 layers protecting shield, 2 stage cooling system keep temperature of the fogging tube and combustion chamber low, when machine working, even can tough the protecting shield of machine, more safety to customer.

Application

This thermal fogger can dispense both water and oil based chemicals, such as most pesticides, fungicides, disinfectants, miticides, poultry vaccines, and odor neutralizers.

The TS-36S machine widely used by health departments around the world to control mosquito-borne diseases (West Nile Virus, Encephalitis, Malaria, Dengue Fever, Yellow Fever and Chagas disease).

Technical Specification

Weight, empty 9.1 kg

Dimensions(L x W x H) 1375x290x360mm

Weight, empty(shipping data) 14.1kg

Dimensions (L x W x H ),(shipping data) 1270x310x370mm

Chemical tank capacity 6 L

Fuel tank capacity 2 L

Fuel consumption 1.5 L/h

Performance of combustion chamber 13.8-18.2 Kw / 18.8-24.8 Hp

Flow rate 8-42L/h

Battery electricity 4x 1.5 V

Pressure in chemical tank 0.25 bar

Pressure in fuel tank 0.06 bar
