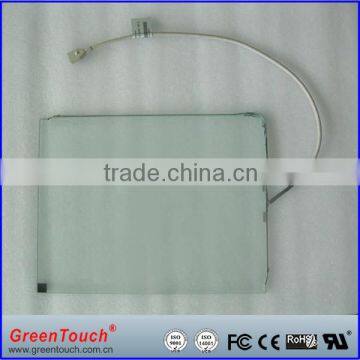

USB/rs232 interface 12.1 inch waterproof / dustproof/ vandal-proof SAW touch screen panel for kiosk

Touch screen type

Touch screen size

Thickness of glass

Material

Standard SAW touch screen

10.4-42’’

3mm,4mm,6mm

Pure glass

Multi-touch SAW touch screen

10.4-24’’

3mm,4mm,6mm

Pure glass

Vandal-proof SAW touch screen

15”/17”/19’’ 4:3

4mm,6mm

Pure glass

Water-proof SAW touch screen

15”/17”/19’’ 4:3

3mm,4mm,6mm

Plastic frame

Vandal/Water-proof SAW touch screen

15”/17”/19’’ 4:3

4mm,6mm

Plastic frame

Anti-glare SAW touch screen

10.4”-42”

3mm,4mm,6mm

Pure glass

Dust-proof SAW touch screen

10.4”-24”

3mm,4mm,6mm

Aluminum frame

Vandal/Water/Glare/Dust-proof

SAW touch screen

15”/17”/19” 4:3

3mm,4mm,6mm

Aluminum frame

Technology

surface acoustic wave technology

Dimension

10.4"-42"(can be selected)

Resolution

4096 x 4096 ,Z-axis 256

Material

electronic glass (anti-glare,anti-vandal,anti-water,anti-dust can be selected)

Sensor position

0.5mm (glass bevel,0.5mm above the surface)

Positioning accuracy

< 2mm

Transmittance

>92 /ASTM

Touch intensity

30g

Touch life time

> 50,000,000

Surface hardness

Mohs' 7

Multi touch

(single or fake 2points touch) can be selected

Operating Temperature

-10 to +60

Storage Temperature

-20 to +70

Humidity

10%-90% RH / 40°C

Work latitude

3800m

Full set

Connected line,double-adhesive tape,dust-proof line, touch screen,controller.

Certificate

CE, FCC, RoHS

Controller specification:

Controller type

Standard or ELO (can be selected)

Interface

USB or RS232 (can be selected)

Dimension

85mm×55mm×10mm

Working voltage

12V±1V or 5V±0.5V (can be selected)

working current

80MA

Maximum current

100MA

Reaction time

≤16ms

Operating Temperature

0-65

Humidity

10%-90%RH

Storage Temperature

-20-70

MTBF

> 500,000 hours

Operating system

   (Support)

SetupX86:WindowsXP,WindowsXPE,Win7 32,Windows VISTA

SetupX64: Win7 64

Linux(support Various versions):Ubunut/Redhat/FC/Suse etc

Android:2.30,4.0 etc.((can use driver-free controller directly))

WinCE:WinCE 5.0/ WinCE 6.0

Controller of LED diagnostic features:

Flash Frequency

Function

The long light goes out after 5 seconds

The controller power-on self-test

Slow flashing

Normal operation, no touch

Fast flashing

Touch the state

Power-on

The touch screen not be found
