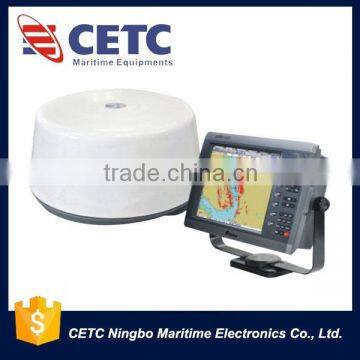

Continuous-wave Navigation Marine Radar For Boat
- Ningbo
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CETC | |
| Model Number | ZDK-SPCR-20 | Part | Other |
Product Description
Overview:the SPCR-20 CW navigation radar, with the wideband frequency-modulated continuous wave system, integrates radar and chart into one and can be connected to sensors like GPS, AIS and compass to provide the users with visual radar images and navigation information.This product has passed the CCS certification and the fishing vessel inspection.
Features:
a.X-band pulsed SSPA (solid-state power amplifier) digital radar;
b.Peak RF radiation power: 150mW, showing no microwave radiation damage;
c.Higher target image resolution in short distance than traditional radar;
d.Integrating marine chart and radar display, with functions of ARPA tracking and encounter alarming;
e.Easy to install with its small size and light weight.
[Indicators]
Operating frequency range | 9.3 GHz~9.5GHz |
Operating distance | 200ft~24nm(50m~48km) |
Rotating speed | 24/36rpm |
Peak transmitting power | 150mW |
Horizontal beamwidth | 4.8° |
Effective horizontal beamwidth | 2.6°~4.8°(control of beam sharpening) |
Vertical beamwidth | 25° |
Power consumption | Working power consumption of 27W and standby power consumption of 2W |
Overall dimension | Φ520mm×280mm |
Weight | 7.4kg |
Screen size | 12.1 inches/17 inches |
Display mode | Head up, course up and north up |
Nominal voltage | DC 12V/24V |
Supply range | DC 10~32V |
Operating temperature | -25°C~+55°C(radar); -15°C~+55°C(display unit) |
Electromagnetic compatibility | Consistent with IEC60945 |
Humidity and heat | Consistent with IEC60945 |
Vibration | Consistent with IEC60945 |
[Application] This product applies to various small and medium-sized vessels for coastal, inland and harbor navigation.
