digital wind marine anemometer for wind speed and wind direction.

FOB Price

US$ 2,050 - 2,100 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	CN
Model Number	ZKD-AM706

Specification of marine Anemometer AM706:

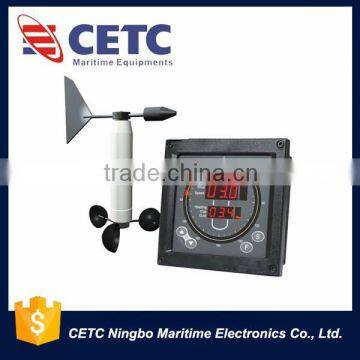

Marine Anemometer AM706 is a combined instrument for wind speed and wind direction.

It can measure relative wind speed (accuracy ±5%), relative wind direction (display accuracy 10 °, output accuracy ± 1 °).

FEATURES:

High Resolution Wind Speed & Direction

Temperature Resistance & Moisture Proof

High Brightness LED Displayer

Current Direction & Gust Range Display

ITEM	SPECIFICATIONS
Dimension	W196×H202×D64mm
Cutting window	W169×H169mm
Weight	Operator unit 2kg Sensor unit 10kg
Power supply	18VDC to DC33VDC
Power consumption	Less than 5W (24 VDC)
Sensor unit measurement	Height 838mm,activity radius 550m
Technical parameter
The range of the wind speed	1.2~60m/s
The accuracy of the wind speed	±5%(min:0.1m/s)
The rang of the wind direction	0~359°
The accuracy of the wind direction	±1°
Min start wind speed	≤1.2m/s
Operating temperature
Operator unit	-15℃~+55℃
Sensor unit	-15℃~+85℃
Storage temperature
Operator unit	-20℃~+70℃
Sensor unit	-20℃~+85℃
Humidity
Operator unit	10%-90% relative humidity
Sensor unit	10%-100% relative humidity
Sensor unit protection	IP56
