Sewage Discharge Pump Submersible Sewage Pump

 Sewage Discharge Pump

1. APPLICATION:

1) Suitable for steel works, power plant, coal works, mine, hospital, municipal works, chemical industry, medicine, building, hotel, sea-wat er suction and drainage, etc.

2) Trades to transport the industrial sewage with grains and fibres, the city's lovong  sewage or rain water and pure water;

3) Some flow processes of chemical industry.

2. FEATURES:

The YW (P) Series Under-liquid Sewage Pump is designed by taking durability, easy use, stability, reliability and free of maintenance. Both pump casing and impeller can be placed under liquied by 0.5-10m.

1) High efficiency and non-block up

The specially designed sewage pum can make sure the excellent hydraulic performance and working life in the transportation of the media containing suspended grains and long fibres, corrosive and abrasive;

2) Easy use, long durability

Double mechanical seals in series are used as the mechanical seal to provide a double protection and the frictional secondary one is a spiral seal made of anti-corrosive sinteredtungsten carbide or silicon carbide and of a special structure and can thus be ensured to continuously run without leakage;

3)Stable, durable without vibration

At the pump's inlet a suck-in barrel is set, it's exquisite desigh makes the sucked liquid's level as deep as possible, without blockup and with a good anti-twin sewage-removal property.

3. RANGE OF PERFORMANCE

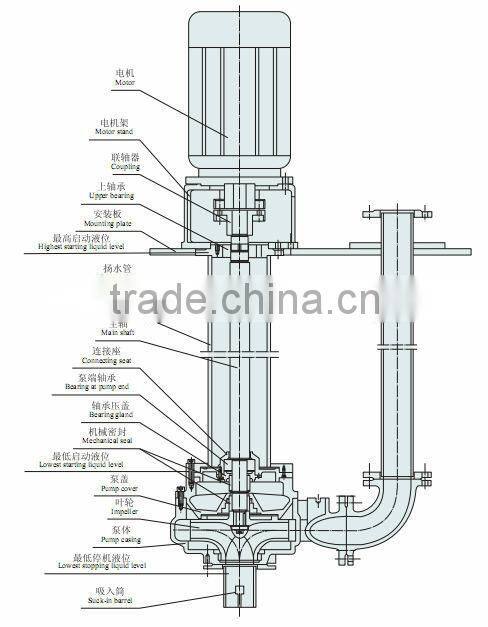

4 TABLE OF YW(P) SERIES UNDER-LIQUID SEWAGE PUMP'S STRUCTURE DRAWING

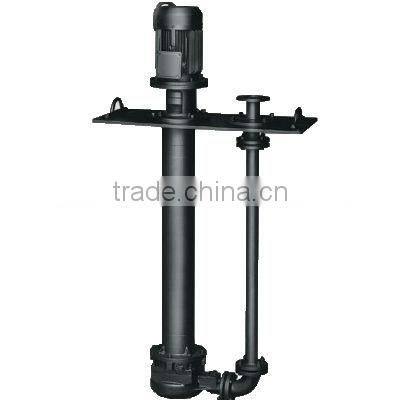

4 ATLAS OF STYLE

4.CE CERTIFICATE
