4 Inches 60HZ Stainless Steel Deep Well Fresh Water Pump

 1,  Application of    Stainless Steel Deep Well Fresh Water Pump

50HZ  or  60hz submersible water pump ( 4 inches Stainless Steel  Deep Well Pump )

Applications:
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.

Operating conditions:
Maximum fluid temperature up to +40°C.
Maximum sand content: 0.3%.
Maximum immersion: 100m.
Minimum well diameter: 4".

Motor:
Rewindable motor.
Three-phase:220-380V/ 50HZ 60HZ
Single-phase:110-220V/60HZ  50HZ
Equip with special start-up control box.

Internal diameter of outlet:
1"   1.25".   1.5"   . 2"

Warranty: 1 years.

Components:                                                         Material:

Pump external casing                                          AISI 304 ss

Delivery casing                                                    AISI 304 ss

Suction lantern                                                    AISI 304 ss

Diffuser                                                                Plastic.PC

Impeller                                                               AISI 304 ss

Motor external casing                                           AISI 304ss

Top cover                                                            Cast-Cu ASTM280.

Bottom support                                                     AISI 304 ss

Mechanical seal                                                    Special seal for deep well(carbon-SIC/TC)

Bearing                                                                 NSK(Japan)

POWER: 0.5HP, 0.75HP, 1HP, 1.5HP, 2HP, 3HP, 4HP, 5.5HP, 7.5HP.

 2 ,Technical paprameter:

 3  Certificate:

4     Our company culture is progress,unity,learning. Create top brand of international market.

 5  Business parnter:

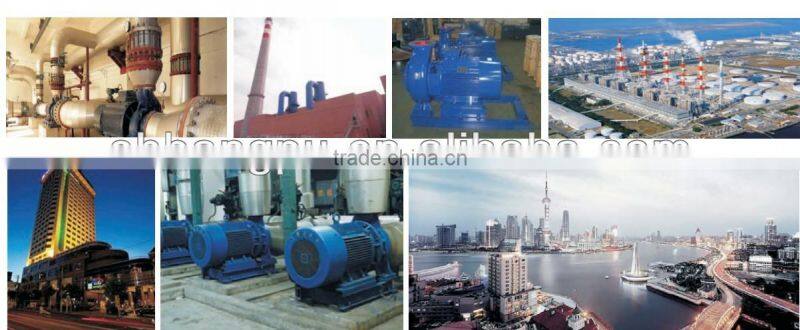

6       Used  in Chemical industry, power plant, thermal power plant, food, urban water supply, irrigation  ,so on

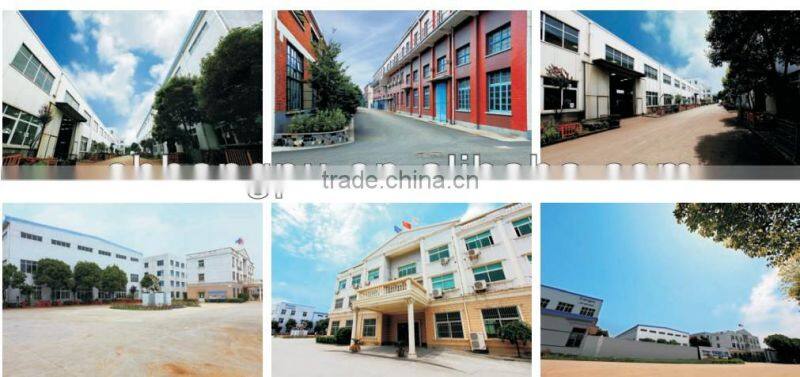

7   Research center  and sales office building

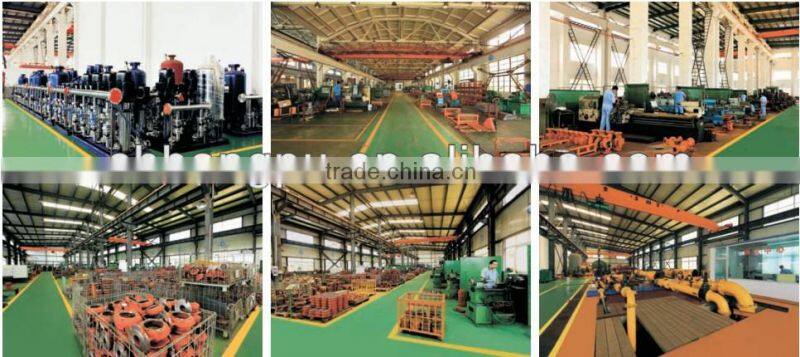

8  Workshop:   Raw material  Store, Cutting and welding, Metalworking,Assembly,Test, painting, package, delivery
