Home > Products > Fire-fighting Pumps > 3 inch portable wheels diesel trash fire pump skid mounted fire pumps brass impeller

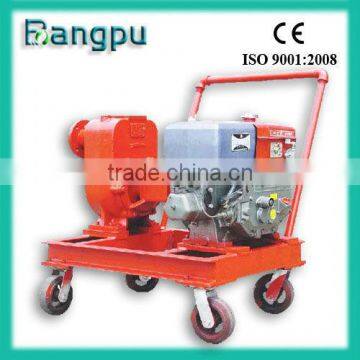

3 inch portable wheels diesel trash fire pump skid mounted fire pumps brass impeller
- 2000 Set / Sets per Month
- Shanghai Port China
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Bangpu | |
| Model Number | XBC | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Other, Diesel | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Fire |
Product Description
3 inch portable wheels diesel trash fire pump skid mounted fire pumps brass impeller
Specifications
2inch Diesel pump
1.Best competitive price
2.OEM/ODM service is available
Detailed Product Description
Diesel engine water pump
2 inch diesel water pump
3 inch water pump
2'' water pump
3'' water pump
FEATURE:
1, Large fuel tank for hours of continuous operation.
2, Aluminum alloy high pressure casting compact in structure and light weight
3, Qualified mechanical seal device
4, Self-suction structure
5, Wide option range in bore size from 2 to 4 inch
6, Recoil Starting and Electric Starting are both available for choice
| Model | DP20 | DP30 | DP40 | |
| WATER PUMP | Suction,discharge port diameter (mm(in)) | 50(2'') | 80(3'') | 100(4'') |
| Cont.head(m) | 26 | 28 | 31 | |
| Self-priming time (s/4m) | 70 | 120 | 180 | |
| Max suction head (m) | 8 | |||
| Cont.capacity(m3/hr) | 36 | 50 | 96 | |
| ENGINE | Engine model | HR170F | HR178F | HR186F |
| Speed(rpm) | 3600 | |||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |||
| Displacement(cc) | 211 | 296 | 406 | |
| Bore×stroke (mm) | 70×55 | 78×62 | 86×70 | |
| Starting system | Recoil | |||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | |
| STANDARD FEATURES | Connecter of infall,Connecter of outfall | yes | yes | yes |
| Filter | yes | yes | yes | |
| Seal ring | yes | yes | yes | |
| Hoop | yes | yes | yes | |
| DIMENSIONS | Dimension(L×W×H)(mm) | 475×400×515 | 540×440×540 | 645×475×605 |
| Dry weight(kg) | 35 | 52 | 69 | |
Production process:
Material workshop
Metal machining workshop
Assembling workshop
Testing workshop
Company introduction:
Shanghai Bangpu Industrial Group Co., Ltd. is a group enterprise specializing in the research and production of various fluid transfer equipments. Our main products include pumps,valves,motors,electric series and water supply system package. Waste water treatment, environmental protection equipments, accessories are also within our main business area. In 2008, Bangpu Group acquired Shanghai Electrical Machinery Factory Co., Ltd. and embarked on a higher speed growing path.
Manufacture view:
Contact Us
- Shanghai Bangpu Industrial Group Co., Ltd.
- Contact nameSunny Sun Chat Now
- Phone0086-021-59744603
- AddressNo. 111, Shenjiabang Road, Baihe Town
