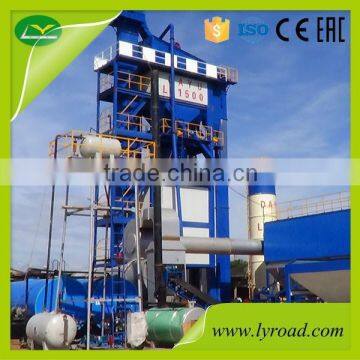

Hot sale model asphalt mix plant

Model

Plant Capacity
(standard conditions)

Mixer
Capacity

Consumption

Measurement Accuracy

Fuel Oil

Fuel Coal

LB500

40 t/h

500 kg

5.5-7 kg/t

10kg/t

Aggregate: ±0.5%

Powder: ±0.5%

Asphalt: ±0.25%

LB800

64 t/h

800 kg

5.5-7 kg/t

10kg/t

LB1000

80 t/h

1000 kg

5.5-7 kg/t

10kg/t

LB1200

100 t/h

1200 kg

5.5-7 kg/t

10kg/t

LB1500

120 t/h

1500 kg

5.5-7 kg/t

10kg/t

LB2000

160 t/h

2000 kg

5.5-7 kg/t

10kg/t

LB2500

200 t/h

2500 kg

5.5-7 kg/t

10kg/t

LB3000

240 t/h

3000 kg

5.5-7 kg/t

10kg/t

LB4000

320 t/h

4000 kg

5.5-7 kg/t

10kg/t

LB5000

400 t/h

5000 kg

5.5-7 kg/t

10kg/t

Cold aggregate feed system

1:Aggregate bin volume and number is customizable

2: Separated structure design significantly reduces dimensions for shipping and ensures a high capacity.

3:Seamless ring belt ,high reliability and long life.

Drying drum

1. Outside the drying drum is covered with a 50mm heat preservation structure,
2.Professional designed lifting blades inside the drum, which can promote thermal    efficiency.
3.Temperature detecting device is equipment beside the outlet of the drum

Burner(diesel& heavy oil/natural gas/coal burner for optional)

1:Italy EBICO burner imported with original packing ,high burning efficiency, diesel/heavy oil dual purpose or gas as fuel is optional,

2:With automatic flame failure protection devices for emergency

Dust collection system:

1: Two grade dust collection system (volute casing collector + bag house collector),with high and low temperature protection device for system security.

2:Bag house collector using USA DuPont NEMEX bags, heat resisting and long life.

Control system

1:SIEMENS PLC electrical control system ,reliability is high.

2:Fully graphic Multi-language control interface is easy and convenient for different country operators.
