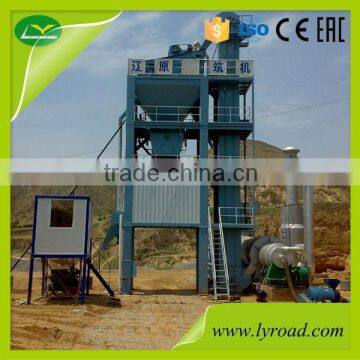

100t/h Asphalt Mixing Plant With CE ISO GOST

FOB Price

USD $265,000 - $298,000 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Condition	New		Place of Origin	Henan, China
Brand Name	Liaoyuan		Model Number	LB1200
Voltage	220V/380V-50Hz (adjustable)		Power(W)	285kw
Weight	130t		Certification	CE ISO GOST
Warranty	12 months after erecting the whole plant.		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Technical Parameters

Model	LB1200
Capacity	100t/h (standard working condition)
Mixer Capacity	1200kg/batch
Drying Drum	Φ1600*7800mm
Fuel Consumption	Diesel: 5.5-7kg/t; Coal:10kg/t
Measurement Accuracy	Aggregate	±0.5%
	Filler	±0.5%
	Bitumen	±0.25%
Finished Asphalt Temperature	130℃-165℃
Dust Collector	gravitational dust collector & Second baghouse dust collector
Air Emissions	≤20mg/Nm3
Dark exhaust standard	Ringelmann I
Working room noise	≤70db(A)
Environment noise	≤80db(A)
Operation	Full Auto/Manual Operation
Total Installation Power	≈316kW
Voltage	220V/380V-50Hz (adjustable)
Plant Covering Area	Length: 40m; width: 30m; max height point: 17m

1.Cold Aggregate Supply System

Bin volume and number is customizable, Separated structure design significantly reduces dimensions for shipping and ensures a high capacity.
Two independent cold feeders and modular design, transport expediently.
Seamless ring belt, high reliability and long life.
Frequency convertor controlled SIEMENS motor, infinite variable speed adjustment, more accurate and energy saving.

2.Drying Drum

SIEMENS motors, hard-teeth reduction gear, friction driving, drum rotating stably.
Optimized lift blade design, make sure heating equably and high energy using ratio.
With 50mm insulating layer and stainless steel skin, avoid heat be lost.

3.Burner

Italy EBICO oil burner imported with original packing, high burning efficiency, diesel, diesel/heavy oil dual purpose or gas as fuel is optional.
With automatic flame failure protection devices for emergency.

4.Dust Collection System

Two level dust collection system (volute casing collector + bag house collector), with high and low temperature protection device for the system security.
Bag house collector using USA Dupont NEMEX bags, heat resisting and long life.

5.Mixing Tower

Both aggregate and filler elevators are equipped with a double ring chain bucket, which is more reliable and convenient for maintenance.
Twin shaft compulsory asphalt concrete mixer (the mixing arm is cross arranged with changeable gridded mixing blade), high mixing efficiency and long life.
SIEMENS motors with hard-teeth reduction gear, most stably and high performance.
Bitumen is sprayed into mixer through a special designed spray bar with high pressure to reduce feeding time and increase mixing uniformity.
Totally enclosed type circular vibration screen, modular design, vibration motor driving, low maintenance and long life.
Double layer much bigger hot aggregate storage hopper can effectively guarantee the continuity of the supply of hot aggregate; with 50mm insulating layer to avoid heat be lost.

6.Bitumen Supply System

Volume and number of bitumen tanks is customizable according to user requirement.
Heat transfer oil heating type, heating equably.

7.Filler Supply System

The standard stacked filler silo design is more convenient for connection with main tower and requires less space for installation.
Volume and number of filler silos is customizable.

8.Control System

Automatic/manual control system, with fault self-diagnosis process, operate easily and safely.
SIEMENS PLC electrical control system, reliability is high.
Fully graphic Multilanguage control interface is easy and convenient for different operators.
