Home > Products > Capacitive touch screen > 23.6" capacitive sensor capacitive touch screen capacitive touch panel

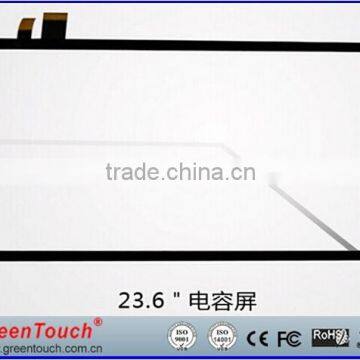

23.6" capacitive sensor capacitive touch screen capacitive touch panel
- Shenzhen
- Credit Card
You May Like
-
23" capacitive sensor capacitive touch screen capacitive touch panel
-
22" capacitive sensor capacitive touch screen capacitive touch panel
-
21.5" capacitive sensor capacitive touch screen capacitive touch panel
-
19" capacitive sensor capacitive touch screen capacitive touch panel
-
18.5" capacitive sensor capacitive touch screen capacitive touch panel
-
17" capacitive sensor capacitive touch screen capacitive touch panel
Product Details
| Products Status | Stock | Screen Size | Other, 23.6" 16:9 | |
| Type | Capacitive | Interface Type | USB, Other, USB, RS232 | |
| Resolution | Other, 4096*4096 | Brand Name | GreenTouch | |
| Model Number | GT-CTP-23.6 | Place of Origin | Guangdong, China |
Product Description
Skype : greentouch07 for direct contact.
5"-55"Capacitive touch screen
Capacitive touch screen Description:
Green Touch now developed a single point and multi-point capacitive touch screen, mainly in G+G and G+P structure based, covering the 5 inch to 32 inches (supports customizable), supports 10touchs, slide, flip, etc. function. 10:00 real touch points to support handwriting, pen function, the focus for educational, medical, computer machine, automotive and other industrial applications.
Capacitive touch screen Category:
Size | Thickness(mm) | Application IC | Structure | Interface |
5"-10.1" | 1.25 | SLV,FT | G+P/G+P/G+F/G+F+F | I2C/USB |
10.4"-32" | 2.0-3.3 | EETI/EM | G+G/G+P | USB/R232 |
Capacitive touch screen System Type:
Size | Windows XP | Win7 | Win8 | Android | Linux | MAC |
5"-10.1" | Support | Support | Support | Support | Support | Support |
10.1"-55" | Support debug | Driver free | driver free | Support debug | Support debug | Support debug |
Capacitive touch screen applications:
1. Consulting appliances
2. Communication Equipment.
3. Household appliance
4. Entertainment equipment
5. Medical Equipment
6. Equipment
Capacitive touch screen advantages:
1. Antistatic ability, aesthetic design
2.Touch intensity small, high transmittance
3. Support for I2C, USB, IPS and R232 Interface
4. High definition, waterproof, fog
5. Support for single and multi-point touch
Capacitive touch screen specifications:
Capacitive touch screen size | 5"-55" |
Capacitive touch screen Structure | G+G/G+P |
Drive mode | COB/COF |
Proportion | 16:9/4:3 |
Capacitive touch screen Thickness | 1.25-3.3mm |
Surface hardness | 6H |
Transmittance | >90% |
Working temperature | -30 ℃ ~ +75 ℃ |
Storage temperature | -40 ℃ ~ +85 ℃ |
Humidity | 90% at 60℃ |
Linearity | 1PT:+/-1mm,10PT:+/-2.5mm |
Touch life | > 100,000,000 times |
Maximum resolution | 4096×4096 |
Maximum support points | Max,10 points |
Controller Type | PCBA control board |
Connection | I2C/USB/RS232 |
Host Interface | USB, 4 wire, 2.0 Full speed |
Operating Voltage | USB 5VDC |
Power consumption | Active Mode:<30mA,Idle Mode:5mA |
Oscillation frequency | 12MHz |
Reaction time | <10ms |
Read speed | 100 MHz |
Antistatic air discharge | 8KV |
Antistatic. Contact Discharge | 4KV |
Adapter ripple | Vpp<50mv |
Capacitive touch screen picturers:
