Low Price Good Qualty Small Oil Heated Semi Automatic Solar Cell Laminator
- Shanghai
- T/T
You May Like
-
Electric Oil Heating Glass TPT EVA Cells Solar Panel Laminator for PV Module Making
-
Photovoltaic Cell Tester for Solar Panel Manufacturing Equipment Line
-
REOO Semi Automatic Solar Panel Wholesale Price Laminator for Panel Making
-
Solar Panel Manufacturing Equipment Module Lamination Machine
-
Complete Auto Solar Cell Module Laminating Machine
-
2200mm X1200mm Solar PV Module Laminator Machine With Oil Heating Automatic
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-B1 | Type | Other, Automatic laminator |
Product Description
5MW Solar panel laminator

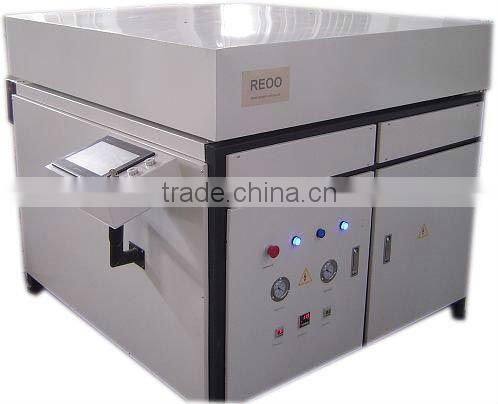

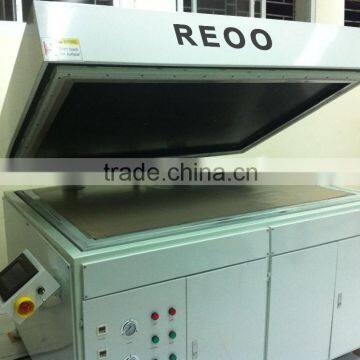

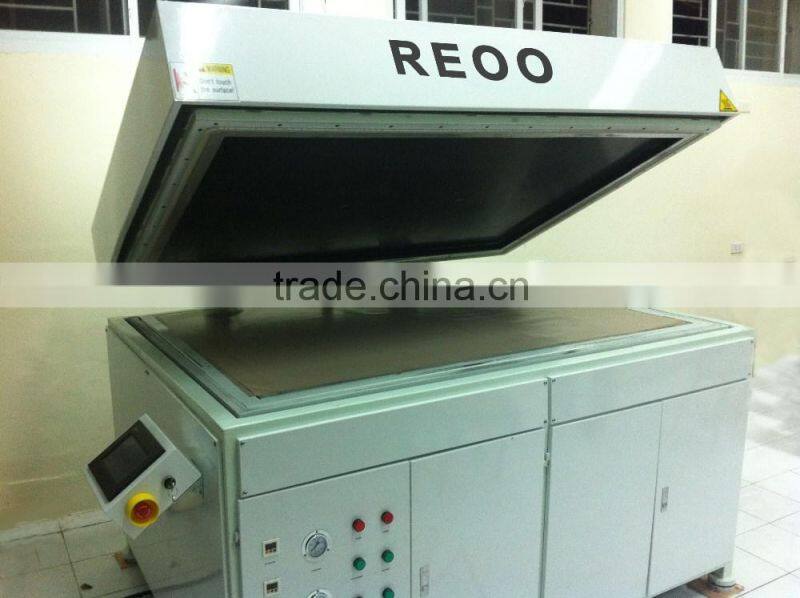

RO-B1 Solar panel laminator,Semi automatic,Can process 2 pcs of 300watt solar panel in one times.
Specification:
1.Semi automatic solar module laminator;

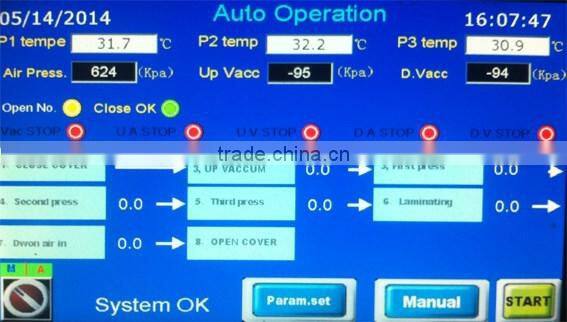

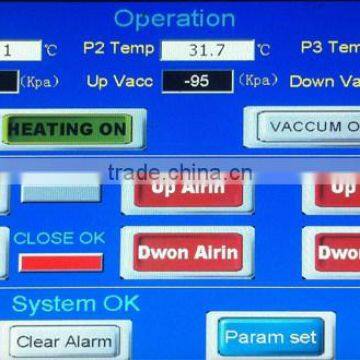

2.PLC + Touch screen control;
3.Energy-saving laminator;
4.Operate,maintain easily.
5. Obtained ISO9001 and CE certification system already.
Technical parameter:
ITEM | SPECIFICATION |
Laminating area | 2200mm x 2200mm. |
Total power consumption | 45 KW ( AC380V, 60 Hz , or according to customer's need ) |
Air source | 0.6 - 1.0 MPa |
Operating mode | Manual / Automatic |
Control system | PLC |

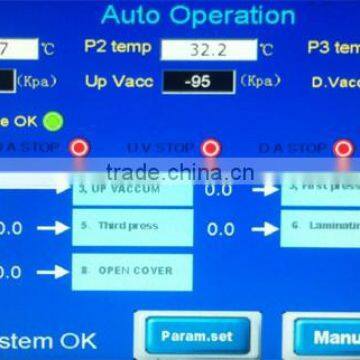

HIM system | Touch screen |
Heating mode | Oil Heating |
Temperature control | PID intelligent temperature contol system |
Temperature uniformity in working area | ≤ ±1.5 ℃ |
Temperature control accuracy | ≤± 1 ℃ |
Temperature control range | 30℃ - 180 ℃ |
Pumping rate | 70 L/s |
Laminating time | 2 - 4 mins |
Vacuum rate | 200 L / S |
limit vacuum | 70 ~ 90 Pa |
vacuum Time | 90 seconds |
Silicone sheet size | 2400mm * 2400mm, 5 mm thickness |
Lid opening | by air |
Total weight | 5500kg |
Production capacity | Conventional 210 Wp (1650*1030) module |
Warranty period | 12 months. (Exclusive quick-wear parts). |
Dimension | 3000mm x 2700mm x 1400mm |
Product capacity :
Conventional 150Wp (1482*676) solar module, 2 pcs in one cycle time.
Production capacity:
150 W * 2pieces / time * 3 times / h * 8 hours * 300 days= 2.16MW / year.
Installation
We send engineer or technicians to buyers factory to install machine.All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance. buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
We can supply technical documents for apply TUV certificated. It is free.
| Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, Chima PC226400 Tel: 86 513 8410 5399 Fax: 86 513 8410 5505 Skype: reoolisa WhatsApp: 0086 188 629 38063 |
