Abrasion impact mining hopper chute 92% alumina ceramic composite rubber liner
- 1000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
-
Wear impact resistant mining chute 92% alumina ceramic wear liner
-
Mining hopper chute skirt liner ceramic composite rubber liner
-
Mining industry material chute ZTA ceramic composite rubber liner
-
Mining processing material chute ceramic wear liner
-
Mining industry mineral processing material chute ceramic composite rubber liner
-
Mining industry mineral processing material chute alumina rubber liner
Product Details
| Place of Origin | Hunan, China | Type | Ceramic Plates | |
| Material | Alumina Ceramic | |||
| Model Number | NMC-J | Brand Name | Kingcera |
Product Description
Mining processing chute alumina rubber composite liner
Kingcera ceramic rubber composite liner are comprised of ceramic tiles,moulded in a high
tensile strength natural rubber matrix, and moulded on 6mm steel backing plates. All rubber ceramic liners are hot vulcanized together using specialized equipment
which provides a bonding strength that exceeds the tensile strength of the natural rubber matrix. As a result the ceramics will remain in the rubber matrix, offering
consistent wear&impact protection across the entire life of the liner.What's more,
All materials are manufactured in accordance with ISO9001 quality.
Kingcera ceramic rubber composite liner are excellent in high impact abrasion
applications to absorb impact while also offering excellent sliding abrasion
resistance.Kingcera ceramic rubber composite liner are easily installed by studs
nuts to connect.
Applied industry:
The abrasion/impact resistant ceramic rubber composite liner are widely used in
the mining,steel milling,smelting,port ,cement ,coal,chemical,coal fired thermal
power plant .Especially applied in the chute ,material bins/hoppers,skirt
liners and bucket wheel Stacker&Reclaimers.
Advantages:
1. Superior wear&impact resistance
2. Easy installation
3. Much longer service lifetime
4. Competitive and reasonable price
5. Saved maintenance time and expenditures
The technical specifications for wear-resistant ceramic rubber composite liner
The performence | Content of AL2O3 | ≥95% |
Density | ≥3.6 g/cm3 | |
Rockwell hardness | ≥85 HRA | |
Rupturing toughness | ≥5.0MPa.m1/2 | |
Compression-resistant strength | ≥850MPa | |
Bend-resistant | ≥290MPa | |
Pull-apart strength(MPa) | ≥7.5 | |
Pull-apart prolongation(%) | ≥300 | |
Shore hardness | 55-65 | |
Permanent deform(%) | ≤24 | |
Adhesion of the adhesive agent and the ceramic(MPa) | ≥3.0 | |
The form service life of the adhesive agent | ≥15 | |
Temperature-resistant | ≤250°C | |
Coefficient of conducting heat. | 20w/m.k | |
The performance to be nonflammable | excellent | |
Coefficient of heat-expandability | 7.2×10-6m/m.K |
Lining size:
Item No
| Dimensions(mm) | Weight(KG)
| |||||
| A(±1) | B(±1) | C(±1) | D(±1) | E(±1) | F(±1) |
|
G-A1 | 302 | 302 | 63 | 50 | 7 | 6 | 23.1 |
G-A2 | 452 | 302 | 63 | 50 | 7 | 6 | 34.8 |
G-A3 | 302 | 402 | 63 | 50 | 7 | 6 | 30.1 |
G-B1 | 302 | 152 | 63 | 50 | 7 | 6 | 11.6 |
G-B2 | 402 | 152 | 63 | 50 | 7 | 6 | 15.4 |
G-B3 | 502 | 152 | 63 | 50 | 7 | 6 | 19.3 |
G-C1 | 302 | 202 | 63 | 50 | 7 | 6 | 15.4 |
G-C2 | 452 | 202 | 63 | 50 | 7 | 6 | 23.1 |
G-D1 | 302 | 102 | 63 | 50 | 7 | 6 | 7.7 |
G-E1 | 452 | 402 | 63 | 50 | 7 | 6 | 46.4 |

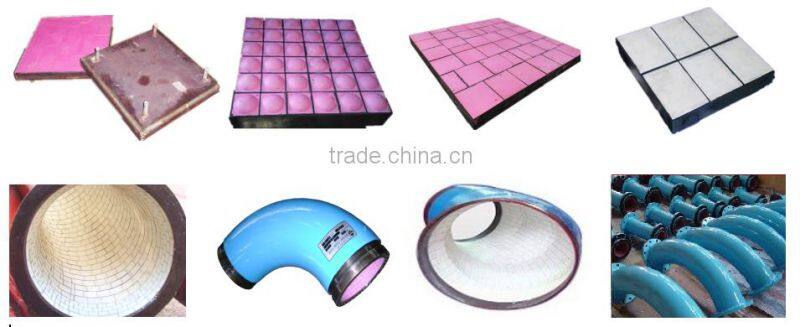

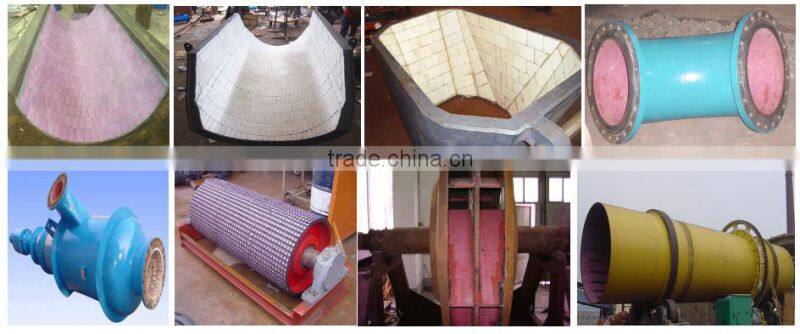

Other customized products
