Spare Parts Concrete pump elbow for the used putzmeister concrete pump

Specifications

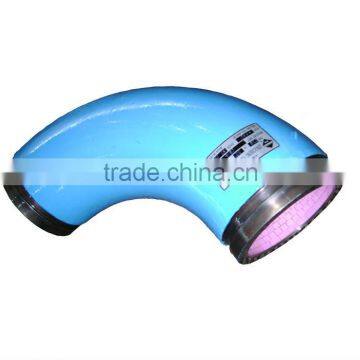

DN125 Ceramic Lined Concrete Pump elbow Spare Parts

This is our patent product, our alumina and zirconia ceramic tiles are super abrasive.

We use our abrasion resistant ceramic tile lined into the inner wall of the seamless carbon steel ceramic lined concrete pump spare parts elbows.

We are able to provide all different types of ceramic lined concrete pump spare parts elbows and special installations.

We can also make the standard and nonstandard ceramic lined concrete pump spare parts elbows according to customers’requirement.

The advantages of alumina ceramic lined concrete pump spare parts elbows

1. The weight is lighter than normal concrete pump elbow.

2. Competitive and reasonable price

3. Saved maintenance time and expenditures

4. KCPP pipes can transport the concrete up to 80000 cube meters. It is five times than normal manganese steel elbows.
5. The inner side material is the high alumina ceramic, Hardness up to 88HRA, next to the diamond,

because of the smooth surface ,it can avoid the jam during the transport of concrete.
6. The outside material is the seamless steel, it has been tested safety.
7. It is standard flange connection, easy for installation.
8. It can reduce the repairing frequency as well as reduce the operators’ working strength.

Specifications:

Parts No.: KCPP

Size: DN125-5 1/2"

Radius: 240-500mm

Degree: 15-90 Deg

Length:500-3000mm

End collars: 148mm

Materials: Alumina and zirconia ceramic lined seamless carbon steel elbow

Concrete pumping capacity: Up to 80000 Cubic meter concrete

Other sizes and ends upon request

Reporting for the wear resistant abilities

In the condition of P=76N, n=800round/min, t=30, calculating in abraded mass, the

abrasion resistant ability of Kingcera ceramic is about 9.5 times than the high chrome , 15times than the manganese steel.

The technical specifications ceramic lined concrete pump spare parts elbows
