12 V DC 180 Electric Shaver Motor For Sale High Speed

Specifications

Application in:  Razor,Motor Toothbrush,Aviation Aerial Models and so on.

Specification:

Note: It's only the typical technical data for reference, Other specification are also can customized.

Weclome inquiry more details.

Factory show :

1.MEASURING CONDITIONS
          1.1.Rated voltage:                                 12 V DC
          1.2.Motor Position:                                To be measured with motor horizontally held.
          1.3.Environmental temperature:25±10°C.
          1.4.Environmental humidity:65%±20%RH.
2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
          2.1.At No load
                2.1.1.Speed:                                 16000 ±10% rpm
                2.1.2.Current:                               0.23  A(max   0.4A)

          2.2.At Max Efficiency
                2.2.1.Torque:                                128.3 g.cm
                2.2.2.Speed:                                 8558 ±10% rpm
                2.2.3.Current:                               1.37  A(max   2.7A)

          2.3.At Stall
                2.3.1.Torque:                                890 g.cm
                2.3.2.Current:                               8.1  A(max   12.15A)

          2.4.Direction of Rotation:                         CCW  (Counter-Clockwise when viewing from the output shaft end
                                                             with positive voltage applied to positive terminal.

3.MECHANICAL CHARACTERISTICS

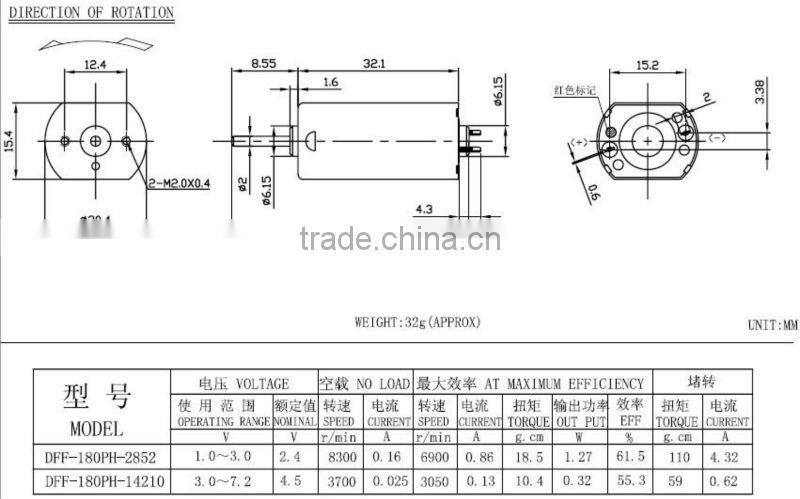

          3.1.Dimension drawing:     See<OUTLINE>.
          3.2.End Play:0.05~0.55mm
          3.3.Operating Temperature:    -10°C ~ +60°C

Hong Kong Dong Hui Motor Industrial Co.,Ltd.

Shen Zhen Xin Dong Hui Motor Technology Co.,Ltd.

Contact Person: Dylan

Tel:  86-755-27228606

Fax: 86-755-29541286

Mobile:86-18682260827

Skype: dylan-2011

Http://

High quality, reasonable price and excellent after-sales service,please contact us immidiately.

The specification is just for your reference.

We can make the customized dc gear motor according to customers' requirements.

Please just feel free to contact us:
