Best Selling RF-500TB Micro 3 Volt dc Motor
- Shen zhen or Hong kong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | DONG HUI | |
| Model Number | RF-500TB micro 3 volt dc motor | Type | Other, RF-500TB micro 3 volt dc motor | |
| Torque | 11.6g.cm | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Other, RF-500TB micro 3 volt dc motor | |
| Speed(RPM) | 2700rpm No Load | Continuous Current(A) | 20mA No load | |
| Output Power | 0.26W | Voltage(V) | 6 | |
| Efficiency | Other, RF-500TB micro 3 volt dc motor |
Product Description
Specifications
RF-500TB micro 3 volt dc motor1.2.0mm steel shaft

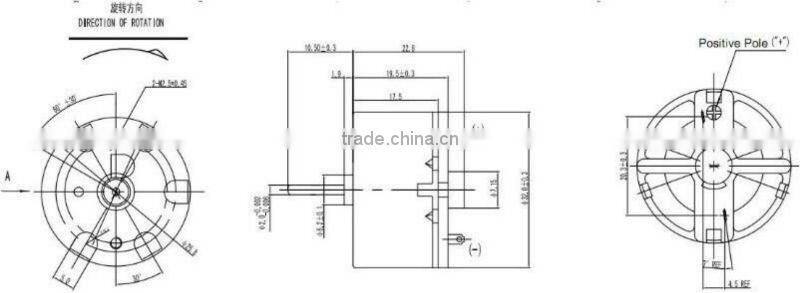

2.DiaXL:32*19.5mm
3.Precious metal brushes
4.2700rpm no load speed
Specifications
6V DC micro motor for Dispenser
1.2.0mm steel shaft
2.DiaXL:32*19.5mm
3.Precious metal brushes
4.2700rpm no load speed
6V DC micro motor for Dispenser(RF-500TB-12560)
Outline:
Dong hui Motor Product range:
Permanent Magnet DC Motor/generator, Geared Motor
Our main products: Motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor,brushless motor etc
2)Products size range: diameter:6-66mm
3)DC Voltage range:1.5V-42V
AC rectify: 100V,110V, 220V,230V,240V etc
Speed range:1RPM-30,000RPM
Stall torque:5g.cm-30kg.cm
Technical datas:
Rated Voltage: 6V
No load speed: 2700rpm
No load current: 20mA
On load Speed: 2180rpm
Current: 80mA
Torque: 11.6g.cm
Stall torque: 60g.cm
Remark:The above technical datas are only for reference,we (dong hui motor) can customerize them according to different requirements after evaluation.
Typical Applications :
Office Automation Equipment> CD/DVD-ROM Drive
Audio and Visual Equipment> Car CD Player / DVD Player
Fragrant machine and Fire Alarm,dispenser and vending machine
