Home > Products > dia. 46~52mm PMDC Motors > 15V DC Electric Motor,Dia 32mm Micro Motor for Sprayer
15V DC Electric Motor,Dia 32mm Micro Motor for Sprayer
- Shen zhen or Hong kong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | DONG HUI | |
| Model Number | RF-500TB-13450 | Usage | Fan, Home Appliance, Other, Fan, Home Appliance, Fragrant machine and Fire Alarm,dispenser and vending machine | |
| Certification | ROHS, Other, ROHS, ISO:9001:2000 | Type | Micro Motor | |
| Torque | 20g.cm | Construction | Permanent Magnet | |
| Commutation | Brush | Speed(RPM) | 7200rpm No Load | |
| Continuous Current(A) | 35mA Max No load | Voltage(V) | 15 |
Product Description
Specifications
15V DC Electric Motor,Dia 32mm Micro Motor for Sprayer1.2.0mm steel shaft
2.DiaXL:32*19.5mm
3.Precious metal brushes
4.~45g
Dong hui Motor Product range:
Permanent Magnet DC Motor/generator, Geared Motor
Our main products: Motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor,brushless motor etc
2)Products size range: diameter:6-66mm
3)DC Voltage range:1.5V-42V
AC rectify: 100V,110V, 220V,230V,240V etc
Speed range:1RPM-30,000RPM
Stall torque:5g.cm-30kg.cm
15V DC Electric Motor,Dia 32mm Micro Motor for Sprayer(RF-500TB-13450)

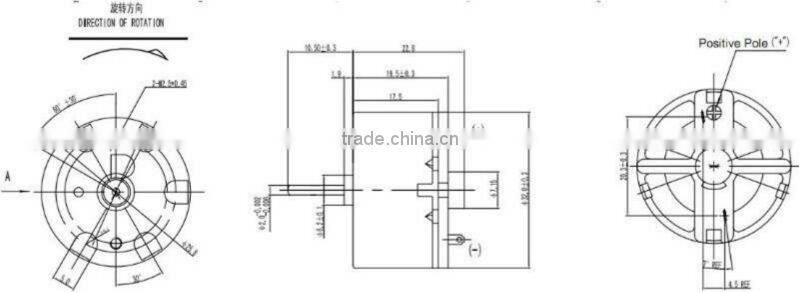

Outline:
Technical datas:
Rated Voltage: 15V
No load speed: 7200rpm
No load current: 35mA Max
On load
Speed: 6150rpm
Current: 145mA Max
Torque: 20g.cm
Stall torque: 145g.cm Min
Stall Current: 1.1A Max
Remark:The above technical datas are only for reference,we (dong hui motor) can customerize them according to different requirements after evaluation.
Typical Applications :
Office Automation Equipment> CD/DVD-ROM Drive
Audio and Visual Equipment> Car CD Player / DVD Player
Fragrant machine and Fire Alarm,dispenser and vending machine
PRODUCTION FLOW:
Contact information :
Mr David Lu
Hong Kong Dong Hui Motor Industrial Co.,Ltd
Shenzhen Xindonghui Technology Co.,Ltd
Shen Zhen Xin Dong Hui Technology Co.,ltd
TEL:86-755-23318858
FAX:86-755-29541286
M B:86-15323827570
Skype:xdh120301
