Home > Products > Alumina ceramic lined pipes and elbows > Ceramic Lined Boom Pipe for Truck-mounted Concrete Pump

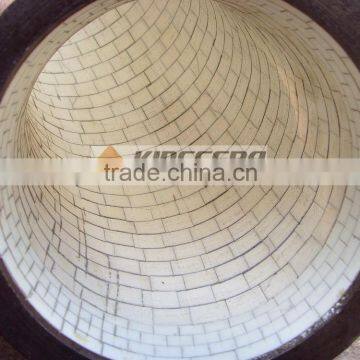

Ceramic Lined Boom Pipe for Truck-mounted Concrete Pump
- Shanghai
- T/T
You May Like
-
Longest Lasting Ceramic Lined Concrete Pump Pipe
-
Ceramic Lining Pipeline System for Concrete Pumps
-
Concrete Pumping Steel Pipe With Ceramic Lining
-
Ceramic Lined Boom Elbow for Concrete Pumps
-
Ceramic Lined Boom Pipe for Concrete Pumps
-
95% High Alumina Ceramic Lining Wear Abrasion and Corrosion Resistant Elbow
Product Details
| Place of Origin | China | Brand Name | Kingcera | |
| Model Number | KCPP |
Product Description

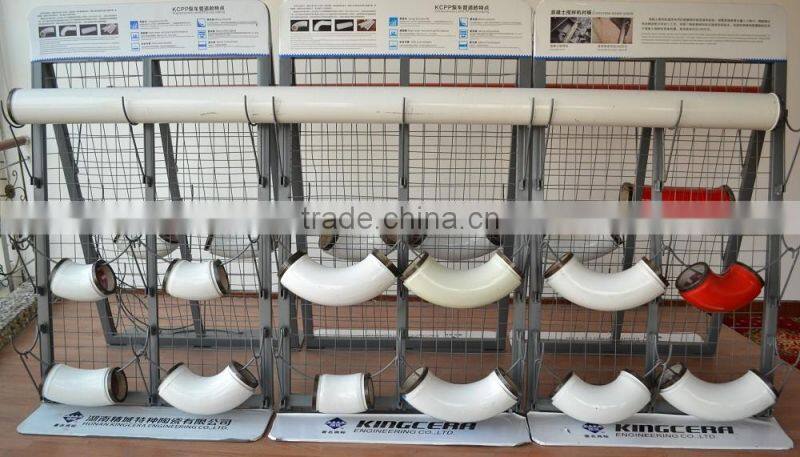

High alumina ceramic lined concrete pumping pipes & elbows

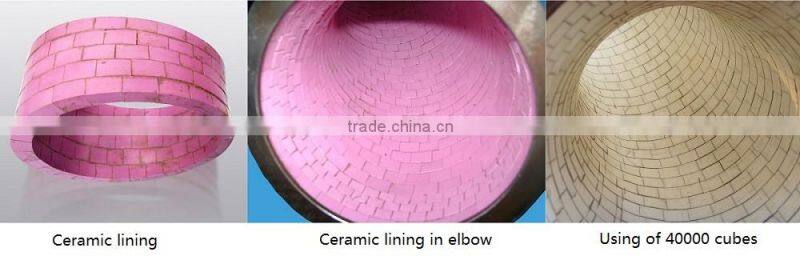

The concerete pipes and elbows are lined with 95%, 99% high alumina ceramic tiles. The pipes' life is over Ten times extended than just alloy pipes.
High alumina ceramic is outstanding for its wear resistance. By lining the ceramic tiles in the concerete pumping pipes and elbows, which life time could be over several times prolonged than the traditional alloy pipes. Meanwhile, the low friction factor of ceramic makes the inner surface very smoothly, largely decrease the concrete blocking in the pipe or elbow. All the advantages of ceramic largely expand the life time of pipe and elbow and decrease downtime.
Ceramic specification
| Item | K-95 | K-99 |
| Ceramic wear material | 95% alumina | 99% alumina |
| Density | 3.65 g/cm3 | 3.85 g/cm3 |
| Compressive Strength | ≥ 1200 Mpa | ≥ 1300 Mpa |
| Rockwell Hardness | ≥ 85 HRA | ≥ 86 HRA |
| Vickers Hardness | ≥ 1000 HV10 | ≥ 1100 HV10 |
| Fracture Toughness (KIC) | ≥ 4.5 Mpa.m1/2 | ≥ 4.8 Mpa.m1/2 |
| Bending Strength | ≥ 300Mpa | ≥ 320Mpa |
| Wear Volume | ≤ 0.05 cm3 | ≤ 0.01 cm3 |
Normal operation temperature: -50-350C
Advantages:
1. Superior wear resistance for the ceramic lined pipe
2. Chemical and impact resistance for the ceramic lined tube
3.corrosion resistance for the ceramic pipe
4.Smooth inner wall for the ceramic tile
5. Saved maintenance time and expenditures
6.Longer service lifetime
Products range
- Materials:
- 95% & 99% purity of Alumina.
- Pure Zirconia.
- Zirconia-toughened Alumina (ZTA)
- Products:
- Ceramic tiles.
- Ceramic, rubber and steel bonded plates.
- Ceramic lined pipes, elbows and equipment.
- Ceramic lined concrete pumping pipes and components.
- Ceramic rubber bonded pulley lagging.
Manufactuer
New manufacturer under construction ( to be in operation in 2016)
