Pulley Mineral Square Acid&slip&wear Resistant Alumina Ceramic Lagging

FOB Price

US$ 50 - 300 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	Kingcera
Model Number	jcnmc	Type	Hydraulic Support
Machine Type	Crusher	Certification	API
Material	Other, CERAMIC	Processing Type	Forging
Use	Coal Mining

Product Description

Specifications

Alumina ceramic lagging for coal mining
1.Five more own facotries
2.Manufacturer.
3.CE AND ISO
4.mining,port ,coal,cement

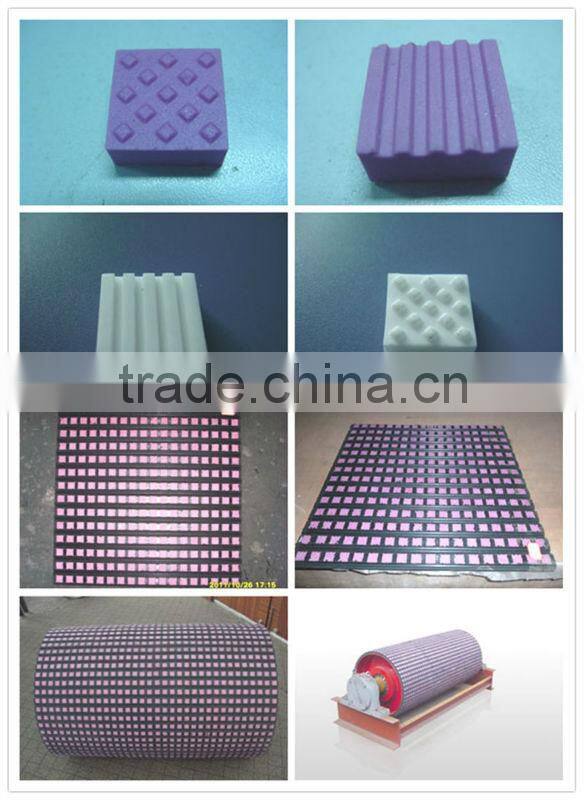

Mineral chute Alumina ceramic lagging

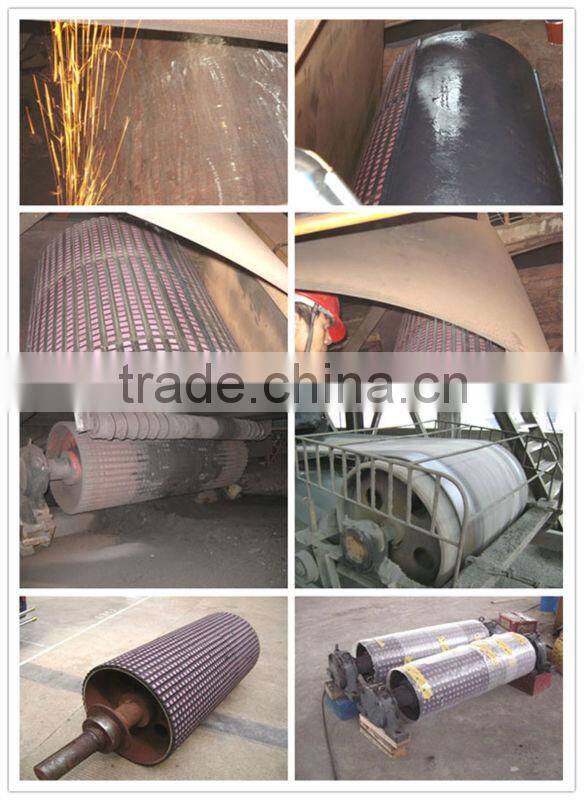

There are many high alumina ceramic pulley lagging lined belt rollers in the steel industry, cement,mining ,port and so on. Usually,the rollers are wrapped by a layer of rubber to prevent them from slipping. But usually,if the roller works in the water environment, the material are easy adhere to the belt or roller. Then it can be easy slip.

Our Kingcera ceramic pulley lagging are adopt the new methods. We valcanized the grain shaped ceramic into the rubber and wrap onto the roller. it not only prevent the roller from slip, can also prolong the roller's service life span.

Advantages:

1.The rough surface of ceramic, prevent the belt and roller from slip.

2.Abrasion resistant, it can prolong the service life span 10 time at least.

3.Gutters between the ceramic are good for draining away water.

The performance testing report for abrasion-resistant ceramic rubber lining

The performence	Content of AL₂O₃	≥95%
	Density	≥3.6 g/cm³
	Rockwell hardness	≥85 HRA
	Rupturing toughness	≥5.0MPa.m1/2
	Compression-resistant strength	≥850MPa
	Bend-resistant	≥290MPa
	Pull-apart strength(MPa)	≥7.5
	Pull-apart prolongation(%)	≥300
	Shore hardness	55-65
	Permanent deform(%)	≤24
	Adhesion of the adhesive agent and the ceramic(MPa)	≥3.0
	The form service life of the adhesive agent	≥15
	Temperature-resistant	≤250°C
	Coefficient of conducting heat.	20w/m.k
	The performance to be nonflammable	excellent
	Coefficient of heat-expandability	7.2×10-6m/m.K
