6v Dc Micro Gear Motor With 16mm Gear Box for Robot From DH Dotor
- SHENZHEN
- T/T Credit Card
You May Like
-
6mm Plastic Mini Geared dc Motor for Lock Robot Toy
-
4.2V Small DC Planetary Geared Motors for Robots
-
FC 130 12v 10000 RPM Brush Motor for Leveler of Headlamp Automobil
-
GM13-030 5V Quiet High Torque Low Speed DC Gear Motor for Smart Door Lock Actuator
-
3v Small Geared dc Motors for Mini Linear Actuator
-
Low Rpm Vibration Motor High Torque Electric dc Motors
Product Details
| Place of Origin | China | Brand Name | DH Motor | |
| Model Number | DPG16-050 6v Dc Micro Gear Motor with 16mm gear box for robot | Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | |
| Certification | CCC, CE, ROHS, UL | Type | Gear Motor | |
| Torque | Requests | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Totally Enclosed | |
| Speed(RPM) | Variable Speed | Continuous Current(A) | Current | |
| Output Power | TBD | Voltage(V) | 6V | |
| Efficiency | IE 1 |
Product Description
3V 6V 12V 24V DC Gear Motor for Intelligent Garbage Can
6v Dc Micro Gear Motor with 16mm gear box for robot from DH Dotor
Specification:
This Gear motor is assembled by DRF-050 DC Motor and 16mm Gear Box.
F-050 DC Motor Specification
1. Rated Voltage:DC 3-24V
2. 14000 RPM Max NO Load.
3. Precious Metal Brush Motors
4.Diameter 15.5mm,length 26.9mm,shaft 2.5mm
5.Weight: 20g Approx

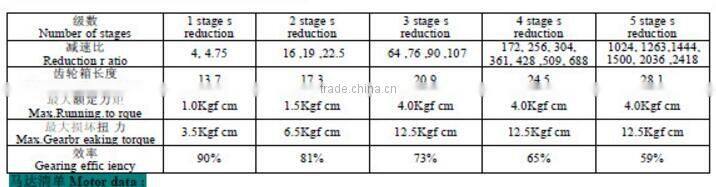

16mm Gear Box Specification
1. Reduction Ration: From 1/4 to 1/2418. Please let us know your need, we can customize for your any request.
2. Shaft Diameter: 3mm (Don't worried if Not your need, It can be customized )
3. Can be equipped with encoder
4. Weight: 10g Approx

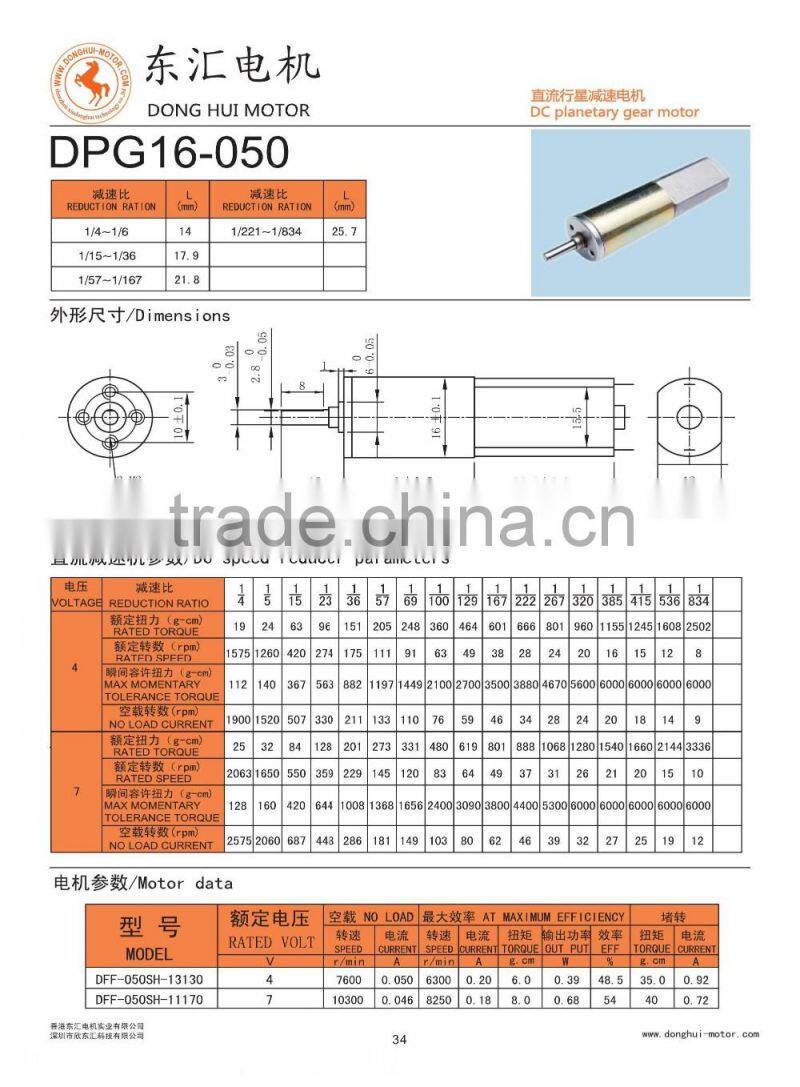

Dimensions and Parameters
Notice: Our Comany Can customized for your request, Please contact us to know more details.
dc motor with gear box Supplier company in Shenzhen
Question 1:What's your main products?
Answer: Dia10~52mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.
Question 2:What's the main usage of the micro dc gear motor?
Answer:Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.
Question 3:Do you accept customize?
Answer:Sure,as we have a strong design team,any problems will get our technical answer.
Question 4:What kind of data do i neet to provide if i want to order?
Answer:Please kindly tell us your voltage,speed,torque and overall dimension.
Question 5:What if i don't know the above data?
Answer:Please contact our saleman to handle,we'll answer your questions patiently.
We only sale the top-quality item, we can provide the reasonable price since we have fight with the supplier as a lowest cost as we can. Please feel free contact us if any needs and questions about the dc gear motor.
