Vacuum Cleaner Motor, Low Voltage Motor,sweeper Motor

Specifications

Specifications

Vacuum Cleaner Motor, low voltage motor,sweeper motor 1.35.8 x 50mm SECD Housing
2.Permanent magnet
3.Carbon Brushes
4.RoHs Compliant

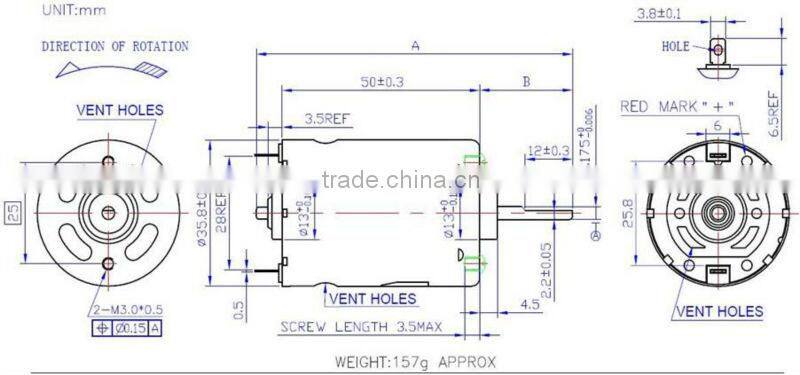

Vacuum Cleaner Motor, low voltage motor,sweeper motor Outline:

Note: 1. A and B can be custom made.

          2. D-shape,knurling on the shaft for option

          3. Ball bearing is available

          4. Custom made EMC/EMI supression

Technical Datas:

Rated Voltage:                7.2V

No load speed:               29052rpm

No load current:              5.5A Max

At Max Efficiency

Speed:                            24665rpm

Current:                          14.452A

Torque:                            24.01mNm

Output:                            65.75W

At Stall

Current:                           115.78A

Torque:                            217.36mNm

Remark:The above technical datas are only for reference,we (dong hui motor) can customerize them according to different requirements after evaluation.

Typical Applications:Car Antenna Lifter,Game Steering Wheel,Vacuum Cleaner,Vacuum Pump, rechargeable fan.hand tool,RC CAR

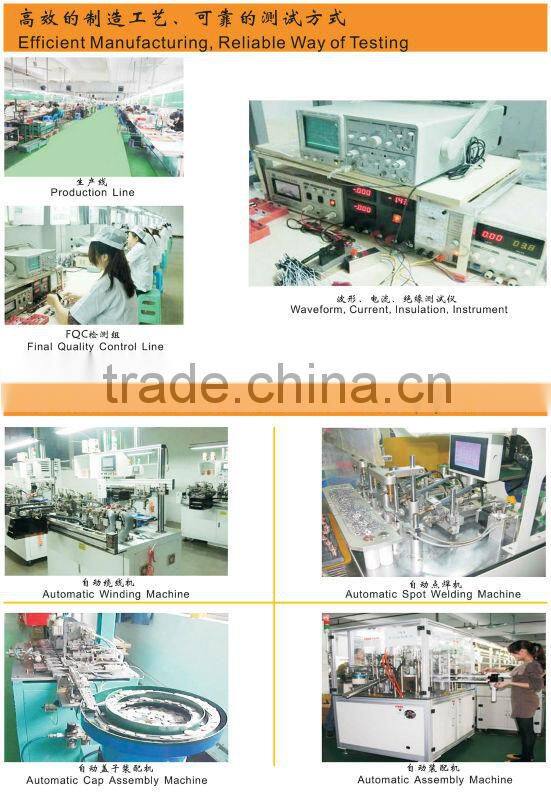

 PRODUCTION FLOW:

 Since Dong Hui Motor established in 2003, has been committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance,office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:

1. Our main products: Dia4~100mm DC Micro Motor and Gear Motor

Auto dc motor, Electric motor,Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.

2. Products size range: Diameter: 4-100mm

3. DC Voltage range: 1.5V -42V

  AC rectify: 100V, 110V, 220V, 230V, 240V etc.

4. Speed range: 1 RPM-30,000RPM

5. Stall torque: 5g.cm-30kg.cm

6. Application: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio& Visual equipment etc.
