Pipe Fittings & Seamless Elbow &45D,90D ,SR,LR,carbon Steel Pipe Elbow
US$ 0.1 - 1,000
/ Piece
1 Piece(Min. Order)
- xin gang tianjin
- T/T
You May Like
-
Pipe Fittings & Seamless Elbow &45D,90D ,SR,LR ,carbon Steel Pipe Fittings
-
Pipe Fitting&seamless Elbow &90D Long Radius Elbow
-
Pipe Fitting&seamless Elbow &90D Long Radius Elbow
-
Pipe Fitting&seamless Elbow &45D Long Radius Elbow
-
Pipe Fitting&seamless Diameter Elbow &45D Long Radius Elbow
-
Seamless Carbon Steel Elbow ASTM A234 WPB ANSI B16.9
Product Details
| Material | Carbon Steel | Technics | Other, pushing | |
| Type | Elbow | Place of Origin | Hebei, China | |
| Model Number | 1/2"--48" ASMEB16.9 | Brand Name | HX | |
| Connection | Welding | Shape | Equal | |
| Head Code | Other, round |
Product Description
Specifications
carbon steel elbowThickness:SCH40,SCH80,SCH160,STD,SGP
Size:1/2"--48"
Standard : ASMEB16.9 A234WPB
QUALITY------THE SOURCE OF ENTERPRISE LIFE
1. INTRODUTION OF PRODUCTS
| Type | CARBON STEEL ELBOW ,45D AND 90D ,SR ,LR |
| Size | 1/2"-48"DN15-DN1200 |
Wall thickness
| Sch40,sch80,sch160 ,SGP,STD |
Standard
| ISO, SNSI, JIS, DIN, GB/T12459GB/T1340 1ASME B16.9 |
| Material | A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L. A403-WP316.A403-WP316L |
| Packaging | Wooden Cases or wooden pallet or as per customers requirement |
| Applications range | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| Min Order Quantity | According to customer's requirement |
| Delivery Time | According to customer's order |
Quality
| First grade |
Productivity
| 800T/Y |
| Others | 1Special design available according to requirement |
| 2anti-corrosion and high-temperature resistant with black painting | |
| 3All the production process are made under the ISO9001:2000 strictly. |

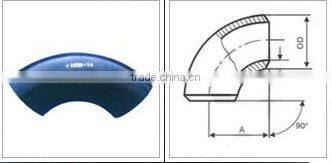

2. drawings
3.MATERIAL
| GRADE | Chemical Composition % max | ||||||||
| WPB | C | Mn | P | S | Si | Cr | Mo | Ni | Cu |
| 0.300 | 0.29-1.06 | 0.050 | 0.050 | 0.10min | 0.40 | 0.150 | 0.40 | 0.40 | |
| Mechanical requirements | |||||||||
| Tensile Strength | Yieldpoint | Elongation | Reduction of area | Hardness test | |||||
| (Mpa)min | (Mpa)min | (%)min | (%) | HBmax | |||||
| 415-585 | 240 | 22 | - | 197 | |||||

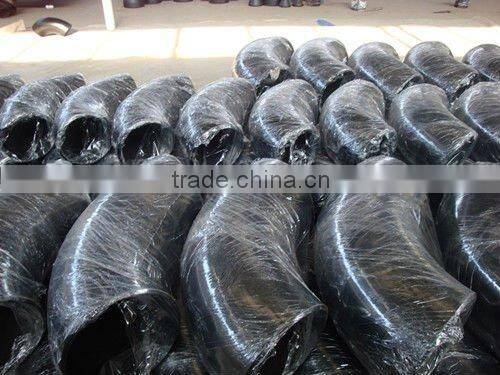

4. PICTURES
