Sell Manual Press Machine for Excavator

Specifications

Product Name:   manual press machine

1. Components Instroduction:

2. Hydraulic Press Machine Introduction

1.rolling hydraulic  machine , press link machine .

Stationary and portable hydraulic press for small , medium and large-size track chains

Lubrication devices for chains, rollers and idlers

Electromechanical track shoe wrench for screwing and unscrewing the shoe bolts on tracked vehicle chains

Track winder is designed for winding large , medium and small-size chains .

150tons, 200tons ,300tons  fit for all kinds of track link .  Quality guarantee at least 1.5 years .

Special design to make your work easier .

Including ,Hydraulic press motor , rolling machine ,and rolling frame .

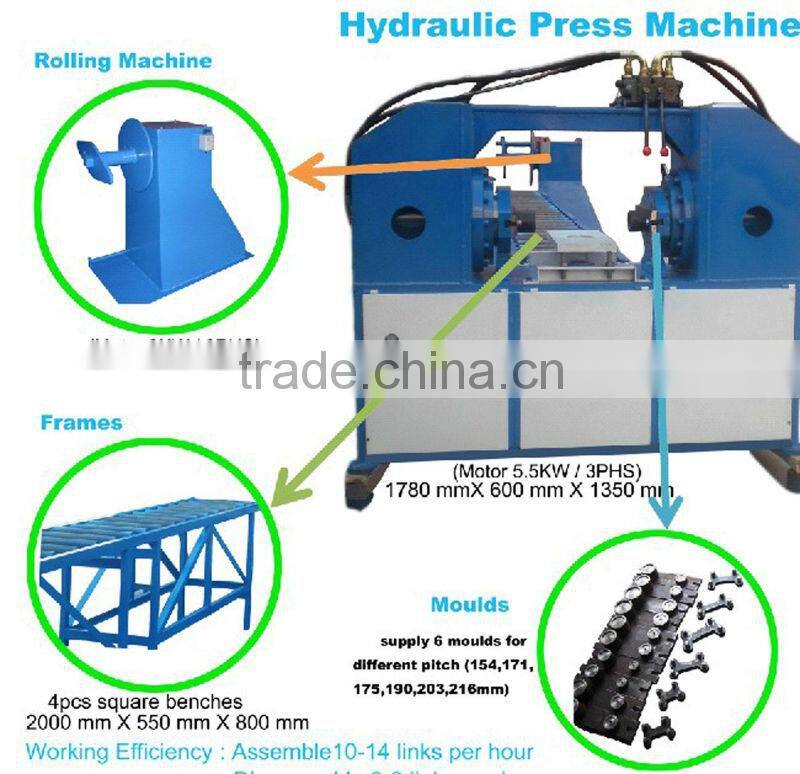

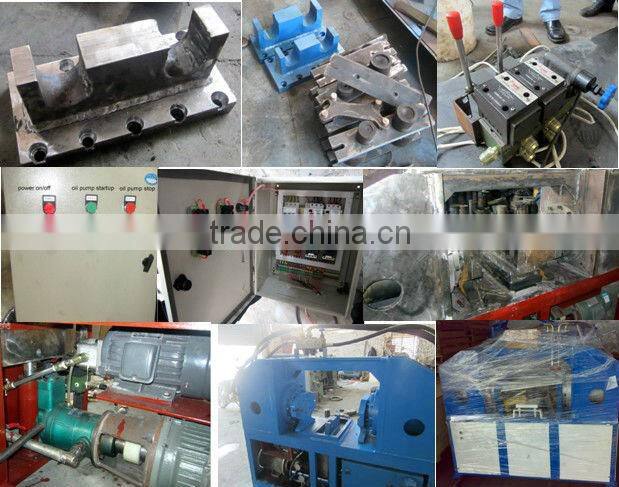

2.Design / Structure / Details Pics

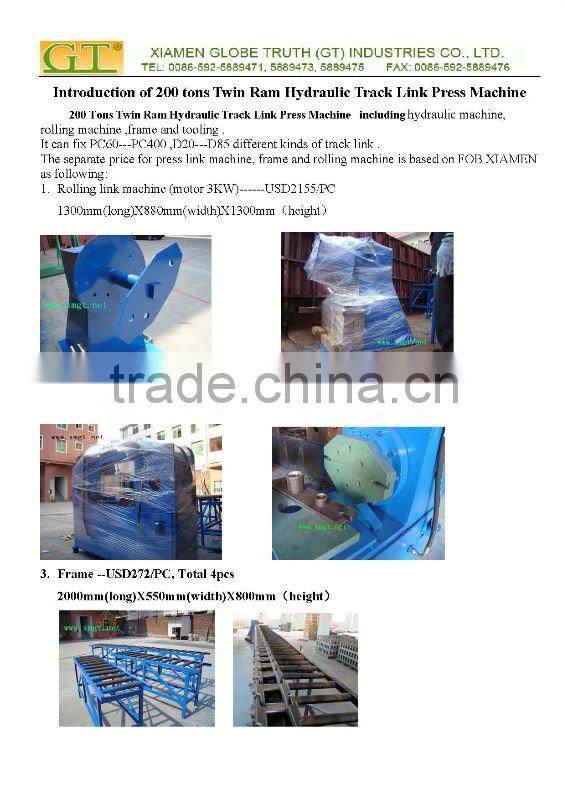

Such as 200 Tons Hydraulic Link Press Machine Assembly including for your reference:

1.Hydraulic machine 2. Rolling machine and 3. Frames.

It can fix (assembly or disassembly) different pitches (<228mm) of track links like PC60~PC400, D2~D8 etc.

The working voltage of standard motor is 220V/380V   50HZ. (110V 60(50) Hz are available)

The separate price for press link machine, frame and rolling machine is based on FOB XIAMEN as following:

1.Rolling link machine (motor 3KW)

1300 mm(long) X 880 mm(width) X 1300 mm(height)

2.200Tons Hydraulic machine including oil pump (motor 5.5KW)—USD9565/PCS. 1780 mm(long) X 600 mm(width) X 1350 mm(height)

3.Frame 4pc

2000 mm(long) X 550 mm(width) X 800 mm(height)

4.Mold (different pitch for link) 6pcs (154,171, 175,190,203,216 pitch)

How to press link. please see video here .

/programs/view/974WduRtksc/

The working efficiency for press link is 10-14sets per hour

How to loose link , please see thie video here ..

 /programs/view/miIdDvR2IS0/

The working efficiency forloose link is 6-8 sets per hour.

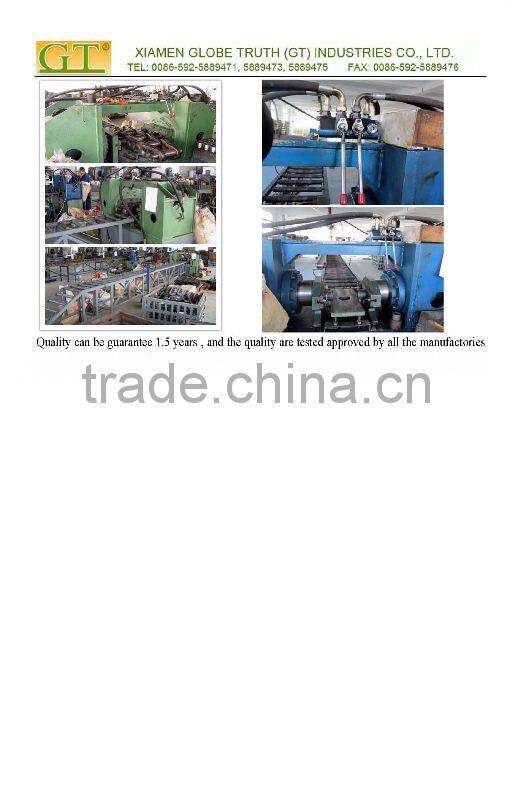

Quality can be guarantee 1.5 years. and the quality are tested approved by all the manufactories here . The total weight is 3tons,the volume is 8CBM.

Price valid time : 20 days .

The fitting track link specification as follow :
