China High Quality of Portable Hydraulic Press Machine
- xiamen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | GT portable hydraulic press | |
| Model Number | portable hydraulic press |
Product Description
portable track link machine for excavator&bulldozer portable track pin press
pitch:135,175,190,216,228mm
portable track link machine for excavator&bulldozer portable track pin press
1: Pitches: Could repair track link from pitch 175 to 260mm
2: Two types: manual and manual&electronics, the latter is almost double efficient than former one
3: Technieque: use advanced hydraulic pressure technology
4: Application: Complete equipment for removal and installation of track pins , master pins, bushings and master bushings .Safe and fast removal and installation of pin and bushings in any working conditions, even with grousers in place .
5: Video: Below are videos of how our machine operates:
Assemble link: /watch?v=SvmB5onSdYw
Diassemble link: /watch?v=UtcQpeIr57w&feature=youtu.be

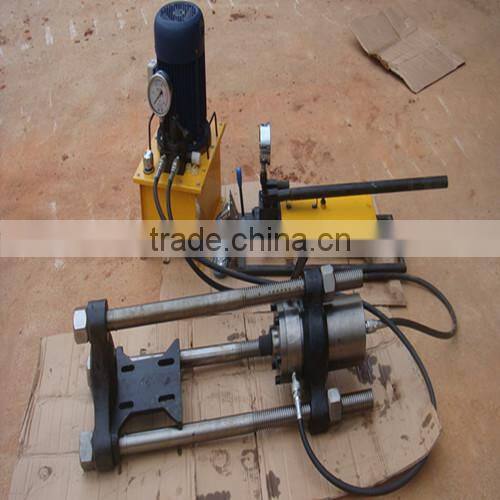

Photo of portable track pin press
There are more imformation about Manual press link machine as follow for your reference:
| No | Type | Machine type | Fit for pitch (mm) | Mould | unit price USD FOB Chinese port | Fit machine | Efficiency |
| qty | Example | ||||||
| 1 | Manual press link machine weight about 250Kgs | GT150-1 | 175,190 | 1 | 2500 | PC100,PC200 | about 15-20 mins |
| GT150-2 | 175,190,203 | 2 | 2600 | PC100,PC200, | |||
| PC300 | per link section | ||||||
| GT150-3 | 175,190,203,216 | 3 | 2800 | PC100,PC200, | |||
| PC300,PC400 | |||||||
| GT200 | 175,190,203,216,228 | 4 | 3100 | PC100,PC200, | |||
| PC300,PC400-6 | |||||||
| GT200-1 | Only for 280 | 1 | 3650 | PC600,D9,D10 | |||
| 2 | Manual & Electronic press link machine, weight about 300Kgs | GT150-1E | 175,190 | 1 | 3340 | PC100,PC200, | about 7-10mins |
| GT150-2E | 175,190,203 | 2 | 3440 | PC300 | |||
| GT150-3E | 175,190,203,216 | 3 | 3640 | PC100,PC200, | |||
| GT200E | 175,190,203,216,228 | 4 | 3940 | PC100,PC200, PC300,PC400-6 | per link section | ||
| GT200-1E | Only 280 | 1 | 4490 | PC600,D9,D10 |
The double-acting cylinders equipping the presses have been built according to the latest techniques
The remarkable length of stroke makes it possible to carry through assembiling and disassembling of track chaines without any work stoppage . provisions on cylinder head and piston rod end allow fitting tooling for the different servicing operations .
The two quick half couplers ,cylinder side, are supplied only upon request.
Notes:
1.Life Guarantee: 6 momth .
2. Price valid time: 30 days.
3.Delivery date: with 30days.
4. In order to increase efficiency, we sugeest you order type
