Home > Products > Mini Combine Harvester > Wishope 4LZ-0.4 Mini Walking Harvester
Wishope 4LZ-0.4 Mini Walking Harvester
- Shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Application | Rice | |
| Type | Mini Harvester | Drive Type | Gear Drive | |
| Usage | Grain Harvester | Place of Origin | Chongqing, China | |
| Brand Name | Wishope | Model Number | 4L-0.4 | |
| Dimension(L*W*H) | 2050*1050*1500 | Weight | 300kg | |
| Certificate | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

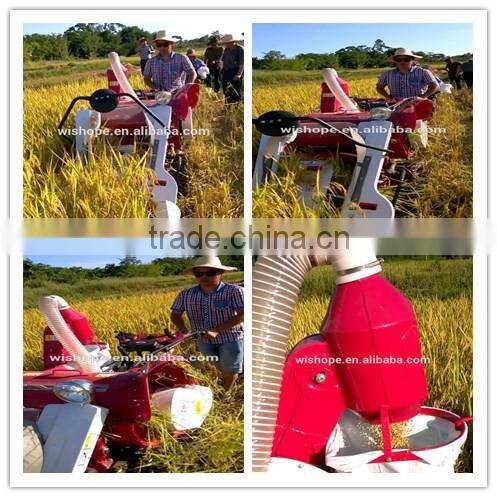

Wishope 4LZ-0.4 mini walking harvester
1)This mini walking rice combine harvester with track is mainly composed of three parts: diesel engine, chassis and the harvester. While the harvester part consists of the following devices and institutions: cutting device, conveying device, threshing device, the rear seat, operating mechanism,control mechanism, and the hydraulic lifting mechanism, etc.
2)The mini rice combine harvester has wide applicability, is suitable for mountainous area, hill, paddy field, terraced field, mud field, small field.
Wishope 4LZ-0.4 mini rubber track harvester 4LZ-0.4 Specifications | ||||||||
General | Harvest Rating | ≥0.05 ha/h |
| Engine | Type | Air-cooled Gasoline | ||
Fuel Consumption | ≤30 kg/ha | Model | 177F/P | |||||
Dimensions | 2050×1050×1500mm | Rated Power | 4.5 kW | |||||
Weight | 300kg | Rated Speed | 3600 r/min | |||||
Harvesting Scope | 835 mm | Thresher | Drum | Type | Axial-flow And Teeth | |||
Minimum Ground Clearance | 150 mm | Diameter x Length | 360×630mm | |||||
Feeding Weight | 0.4 kg/s | Teeth Length | 70 mm | |||||
Shifts | 1, 0, 2, 0, -1 | Teeth Quantity | 28 | |||||
Walking Speed At Work | 0.4~0.6 m/s | Speed | 1220 r/min | |||||
Cutter | Type | Reciprocation | Concave Type | Grid | ||||
Lifting Type | Manual Hydraulic | Discharger | Fan | Type | Centrifugal | |||
Cutter | Type | Model VI | Diameter | 245 mm | ||||
Quantity | 2 | Speed | 3300 r/min | |||||
Screw Conveyor | Type | Screw | Quantity | 1 | ||||
Speed | 246 r/min | Lifter | Type | Scraper Blades | ||||
Clearance | 8 mm | Loading Type | Preset Bag | |||||
Feeder | Rod Angle
| 90° | Walking | Crawler Belt | Length x PCs x Width | 75mm*28pcs*250mm | ||
Rod Length
| 130 mm | Track Gauge | 570 mm | |||||
Rod Gap | 175 mm | Transmission Gearbox | Step speed change With reverse gear | |||||
Chain Speed | 0.8 m/s | Walking Clutch Type | Tensioner | |||||
Divider | Available | Operating Type | hand-operation and step with device | |||||
Working Clutch Type | Tensioner | Steering Type | Drum Clutch | |||||
Wishope 4lz-1.2 rice combine harvester Wishope 4lz-2.2 rice combine harvester Wishope 4lz-3.0 rice combine harvester
