Factory Used Spray Booth and Prep Station for Sale With CE Certification

FOB Price

US$ 5,000 - 12,999 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

used spray booth for sale, paint spray booth, CE&ISO approved

Features:

Model:	DA-900 IIA
Inside Dimensions:	6900(L)X3900(W)X2650(H) mm
Outside Dimensions:	7000(L)X5400(W)X3400(H) mm
Wall Panels:	Thickness: 50mm, double skined with polystyrene insulation(EPS) inside, tongue and groove interlock construction
Roof Panels:	Galvanized steel sheet; C-shape ceiling filter holders, powder coated.
Doors:	3-fold main doors, 3000(W)x2600(H) mm. One personnel door, 800(W)x2000(H) mm
Basement and Floor:	300mm high raised metal- base with 4 pcs ramps outside, complete grating floor
Generator Setting	Aluminum ally frame
Intake:	One backward inclined turbo fan, capacity:25000cmh,motor:7.5kW, direct drive
Extract:	One backward inclined turbo fan, capacity:25000cmh,motor:7.5kW, direct drive
By-Pass:	Pneumatic damper from spraying to baking cycle
Heating System:	Stainless heating exchanger, 60°C - 80°C working temperature. Italy Riello RG5S oil burner, capacity 260000Kcal/h
Filter System:	4 sorts of filters: Prefilter(pocket style), ceiling filter, floor paint-stop filter, activated carbon filter (pocket style).

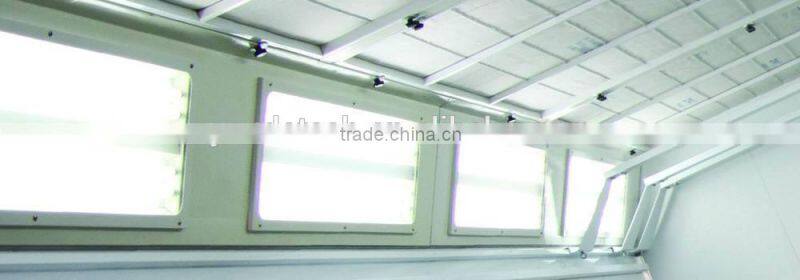

Lighting:	8 units 4×36W inclined ceiling lights, 6 units 4×36 W vertical side lights. Philips tubes. Illumination≥1200Lux.
Control System:	Reliable components, digital temperature readout, spray and bake temperature settings, bake timer,spray and bake switch, pressure gauge, emergency stop.
Total Power:	17.5KW

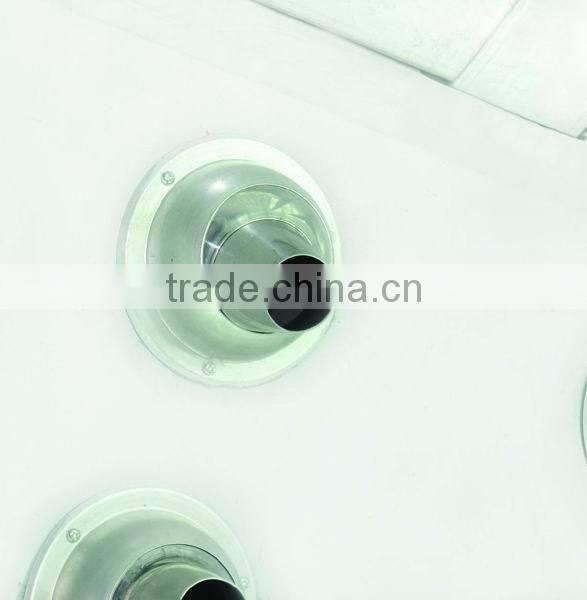

Parts of spray booth

Facility

Packing
