High pressure waterless car wash machine for car wash station

FOB Price

US$ 5,000 - 12,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Youda
Model Number	DA-W200ST		Material	Steel hot galavanzing

Product Description

High pressure waterless car wash machine for car wash station

DA-W200ST Touchless car wash machine is qualified to wash and spray foam, water and wax automatically, which covers small space and operates easily; there is no need for customer to concern the car paint destroyed by the brush since it is brushless. The dual-swing-arm spraying system ensures the easy and complete full-scope cleaning.

Main Futures:

1. The machine is controlled by intelligent CUP.

2. Swing arm move in 360 round, can clean any where of cars.

3. Cover a small area, saving space and easy to operation.

4. Bottom wash and high pressure water gun are as optional.

Technical Data :

Model		DA- W200ST-1	DA- W200ST-2
Parameter	Machine Size	L4080mm×W3580mm× H2850mm	L6080mm×W3580mm× H2850mm
	Assembling range	L6300mm×W4000
	Wash type	car, jeep, coach below 10 seats
	Washable car size	L5300mm×W2300mm×H2250mm
	Washing ways	2 roll over shampoo wash ,2 roll over wax wash
	Washing time	2 roll over 1minute 20 seconds (without hand wipe-time)

Cost consumption	Water consumption	120L/set
	Power consumption	0.27kwh/set	0.15kwh/set
	Shampoo consumption	7ml/set
	Wax consumption	12ml/set
	Total electrical capacity	8.55KW	6.47KW

Installation	Power required	AC380V50Hz volume 15KVA	AC380V50Hz volume 11KVA
	Water required	Pipe diameter DN25 flow≥100L/min
	Air supply	Pressure0.75~0.9Mpa/flow≥0.1m³/min
	Surface roughness	error≤10mm

Accessories and Parts List:

Standard parts	Quantity	Remarks
Shampoo sprinkling system	1 set	--
Water wax sprinkling system	1 set	--
Correlation of water knife	1set	--
High pressure water device	1set	--
High pressure water gun	1 set	Without
Frame	1 set	hot-dip galvanized
Electronic control system	1 set	MK cabinet
Wearproof walking system	1 set	--
Voice prompt function	--	available
Walking trolley system	1 set	--
Air cylinder	--	AirTac
Walking reduction gears	--	TSUBAKI
Contactor	--	Mitsubishi
Magnetic valve	--	CKD/SMC/Koganei
Frequency converter	--	Mitsubishi
25KG vertical impeller pump	--	GRUDFOSS(200A)
45KG high-pressure plunger pump		TAIWAN(200B)
900VA Transformer	1 set

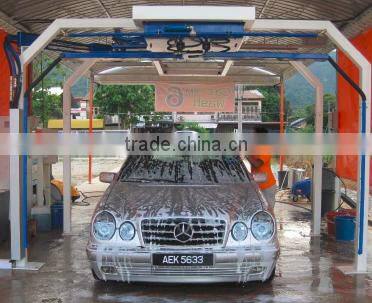

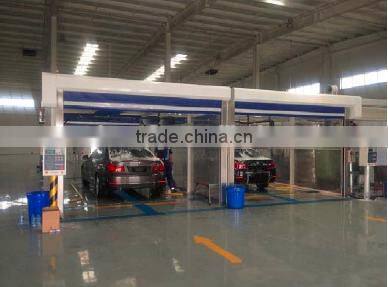

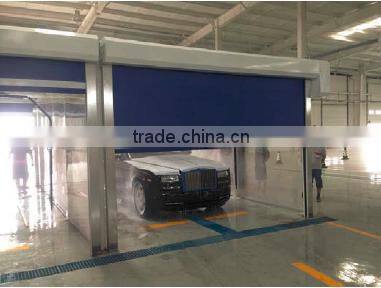

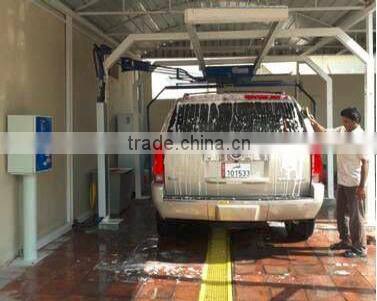

Installed Photos:
