CE certified High Temperature Atmosphere Laboratory Muffle Furnace with water cooling system
- 200 Set / Sets per Month
- QINGDAO SHANGHAI TIANJIN NINGBO
- T/T Credit Card PayPal
You May Like
-
High temperature electric atmosphere furnace/Laboratory Inert Atmosphere Furnace for sale
-
High Temperature Nitrogen/Argon insert electric atmosphere furnace 1400C
-
200*200*200 chamber Atmosphere Box type Resistance Muffle Furnace 1400C with CE
-
CE certified Laboratory furnace up to 1050C/1100C with protective gastight metal muffle
-
CE certified Laboratory atmosphere furnace protective Gas sintering furnace with water chiller system
-
Laboratory vacuum atmosphere box argon inert gas furnace for protective sintering
Product Details
| Brand Name | CY | Model Number | CY-A1600-8L | |
| Place of Origin | Henan, China |
Product Description
CE certified High Temperature Atmosphere Laboratory Muffle Furnace with water cooling system

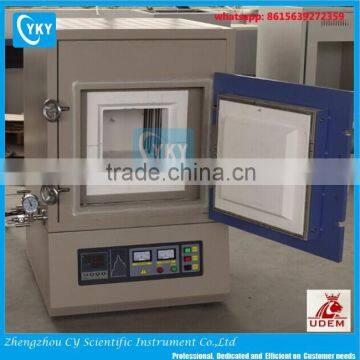

Pictures show of Atmosphere Laboratory Muffle Furnace
Featrues of Atmosphere Laboratory Muffle Furnace
1.Side door, easy to operate
2.High quality imported fiber, resistance high temperature
3.Programmable and PID automatic control
4.Heavy duty double layer structure with cooling fan. Lower temperature in outside case
5.Multi-function: Metal annealing, quenching atmosphere, surface cream, light treatment
6. Compact structure, can insert N2/Ar2 for special material sintering.
Technical parmaters of Atmosphere Laboratory Muffle Furnace
| Model | CY-A1200 | CY-A1400 | CY-A1600 |
| Controller | LED/LCD for optional | ||
| Standard Furnace Hearth | 150*150*150mm | ||
| 150*150*200mm | |||
| 200*200*200mm | |||
| 200*200*300mm | |||
| 300*300*300mm | |||
| 300*300*400mm | |||
| 400*400*400mm | |||
| 500*500*500mm | |||
| 600*600*600mm | |||
| 800*800*800mm | |||
| Maximum Temperature | 1200℃ | 1400℃ | 1600℃ |
| Rated Temperature | 1100℃ | 1300℃ | 1500℃ |
| Heating Rate | 0-20℃ (suggestion 10℃/min) | 0-20℃ (suggestion 10℃/min) | 0-15℃ (suggestion 10℃/min) |
| Temperature Control | 30 programmable and PID automatic control ( customized) | ||
| Temperature uniform | ± 5℃ | ±5℃ | ±5℃ |
| Heating Element | Aludirome | SiC | MoSi2 |
| Thermocouple | K Type | S type | B type |
| Furnace Shell Structure | Double furnace shell and is equipped with cooling fan | ||
| Atmosphere acceptable | nitrogen, argon and other inert gases. Insert reduction gas is prohibited | ||
| Voltage | AC 110 -380V,50/60Hz, as customor require | ||
| Quality Guarantee | One year | ||
Large capacity Atmosphere Laboratory Muffle Furnace
Packaging of Atmosphere Laboratory Muffle Furnace
Standard PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 12 month, except wearing parts.
Relative accessories
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet. Welcome you come to visit us.
