2014 Professional new design scraping the bark electrity power machine

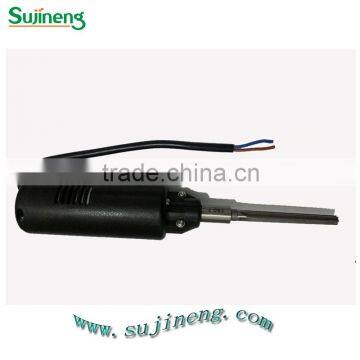

electric scraping the bark machine

Specifications

scraping the bark machine is a new type of high efficient plant protection devices.

Product introduction

scraping the bark machineis a new type of high efficient plant protection devices, it solved the problem of low efficiency of the manually peel type fruit knife to fix, the machine according to the human body engineering design, technical operation comfortable, and save labor,won five national invention patent. The motor adopts imported motor, torque, high efficiency, long life, tool USES the independent design of titanium alloy coated tools invention, can keep sharp for long, does not rust. Power source adopts the best commonality of 12 v batteries, maximum limit save users use cost.

Parameters

Product advantage

1, scraping the skin quickly, high quality, can completely replace the traditional scraping the skin;

2, can eliminate pathogenic bacteria, the eggs, which greatly reduce the incidence of plant diseases and insect pests;

3, repairable trunk corners, holes, really scraping the skin without dead Angle;

4, scraping the skin after the combination of form a complete set of special control, 2 to 3 years to eradicate branches ring spot and rot disease.

Directions for use

1, biting the spindle with 14 wrench, biting lock nut with 17wrench,counterclockwise loosen the lock nut

2. Insert the tool machine front spindle hole inside, petiole to insert in place of the cutting tools

3, with 14 spanner fixed spindle, with 17 wrench clockwise rotation, will lock nut lock

4, connected to 12v dc power supply, pay attention not to reverse is negative, the red line of by the anode, the black line is negative

5, open the switch according to the state, working free air temperature is below 10 degrees Celsius under the environment of 3 minutes.

6, to begin operations.

, holding the machine, left hand in the former, right hand in the back, nudging down, pay attention to the scraped bark gently with knives, not barbaric operation, to prevent damage to the cutting tool, machine. Scraping the skin thoroughly, we should thoroughly remove the old cracked leather, all kinds of disease spot disease tumor scrape, eggs thoroughly remove. Scraping the skin depth should be controlled in big scraping skin thief, small dew green advisable, and should not be blown to the xylem.

matters needing attention

1, machine cutting tools, cutting tools, please do not used for other purposes, otherwise the consequence is responsible for yourself.

2, please place the machine in the place of a dry, children's can’t reach, note to prevent damp and frostbite

3, when using knife light on bark, not barbaric operation, otherwise it will damage the motor,

4, insert tool and tighten the screw to prevent loose and slippage

5, and recommended plugged into a power supply 12 v, ≥20ah battery, in order to ensure the normal use of the machine

6, when connected to a dc power supply, positive negative can't wrong, or cutting tool inversion can't cutting

7, when used not to die motor stalling a card, otherwise easy to damage the motor

8, to choose our company’s charger for the use of lithium electric power, otherwise will have incalculable consequences.

the common problems and solutions

1, in the process of use, if appear tool does not turn or spin, please check whether the spindle lock, if not, please use the machine with the wrench to tighten.

2,in the process of use, if appear a tool inversion or not cutting, please counter check whether power is negative.

3,in the process of use, if appear the fuselage temperature is too high, please check whether the air vent is blocked and stop using for a few minutes.
