0.8mm Pitch Wire to Board IDC 02~10, 12, 14~17, 20 Pins Connector
- Taiwan Port
- Money Gram
You May Like
-
Pitch 3.5mm Wire to Board Crimp Connector Terminal Female
-
3mm Pitch Wire to Board Wafer Connector 02~12 Pins
-
3.5mm Pitch Female Connector Wire End Terminals
-
3.5mm Pitch Wire Male Connectors Terminal
-
2mm Pitch Wire to Wire Male Female Wire Connector Terminal
-
2mm Pitch Female Micro Connector Wire to Wire Housing Connector, Circuits 02~11 Pins
Product Details
| Place of Origin | Taiwan, China | Brand Name | Goldensunda | |
| Model Number | AS09600XXKXX1 | Type | Other, All Electric Area, IDC | |
| Application | PCB | Gender | Other, Male / Female |
Product Description

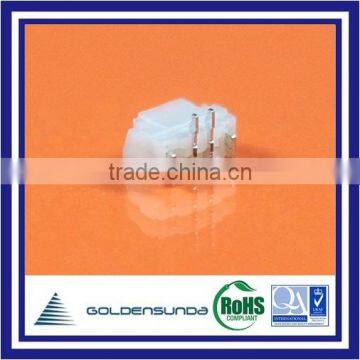

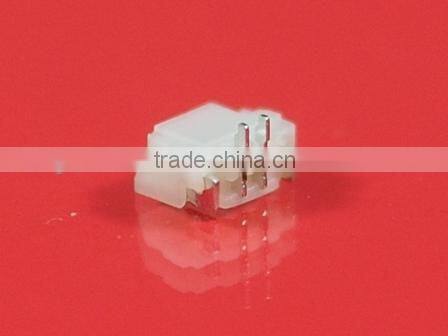

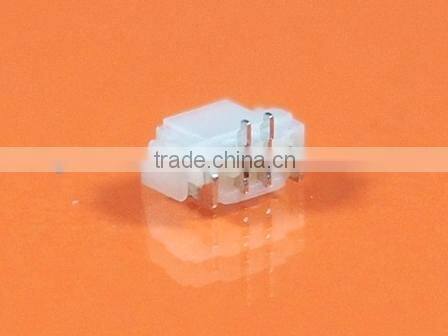

0.8mm Pitch Wire to Board IDC 02~10, 12, 14~17, 20 pins Connector

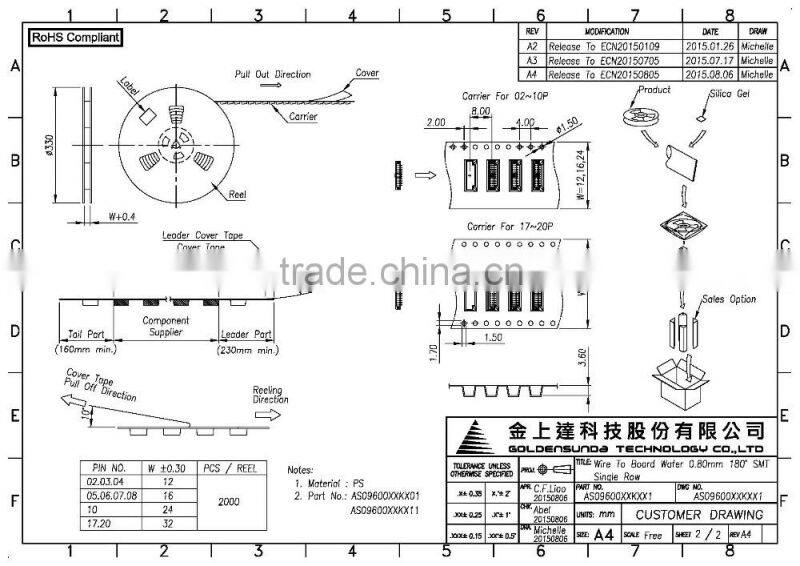

1. Tape & Reel 2. Tube

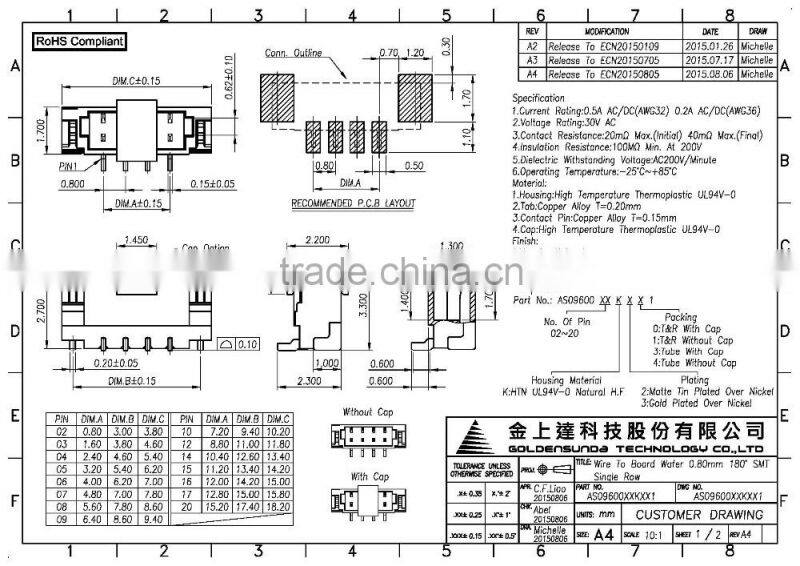

0.8mm Pitch 2 Pin Connector Wire to Board IDC 02~10, 12, 14~17, 20 pins
| Specification | 1. Current Rating : 0.5A AC/DC (AWG32) 0.2A AC/DC (AWG36) |
| 2. Voltage Rating : 30V AC | |
| 3. Contact Resistance : 20mΩ Max. (Initial) 40mΩ Max. (Final) | |
| 4. Insulation Resistance : 100MΩ Min. At 200V | |
| 5. Dielectric Withstanding Voltage : AC 200V/Minute | |
6. Operating Temperature : -25°c ~ +85°c | |
| Material | 1. Housing : High Temperature Thermoplastic UL94V-0 |
| 2. Tab : Copper Alloy T=0.20mm | |
| 3. Contact Pin : Copper Alloy T=0.15mm | |
| 4. Cap : High Temperature Thermoplastic UL94V-0 | |
| Finish | 1. Housing : Natural |
| 2. Tab : Tin Plated Over Nickel | |
| 3. Contact Pin : Matte Tin Plated Over Nickel or Gold Flash Over Nickel | |
| 4. Cap : Natural |
Automotive / GPS / Consumer / DVD Players / Notebook PC / Smart Phone and Mobile Devices / Solid State Lighting / Track lighting / Linear lights / PC Industry / Communications Industry / Mobile Industry / Electronic Components
* This product is applicable for a variety of purposes, the above mentioned only represents some of the more common uses.
Goldensunda was founded in 1999, we are professional connector manufacturer for electronic components, such as Wire to Board Connectors, Wafer, Housing, Terminal, Board In, Board to Board Connectors, Pin Header, Female Header, Box Header, FPC / FFC Connectors, Wire to Wire Connectors, Input & Output (I/O) Connectors, PC Board Connectors, Wire Harness, Round Cable Assembly, FFC Cable, Flat Cable...etc. We manufacture all our products in our ISO9001:2008-certified factory in Taiwan. Goldensunda offers comprehensive connector solutions for a wide range of electronic. Quality, Efficiency, Experience, Innovation, customized OEM / ODM, Professional, Technology & Service are our competitive advantages. Furthermore, for environmental friendly issue, we are in manufacturing RoHS compliant and low/free Halogen connectors. We strive to provide a win-win situation and look forward to cooperating with our valuable customers like a partner for long term. Welcome for your inquiry, and please contact us today!
OEM / ODM requests welcome!
Contact us today for more details.
