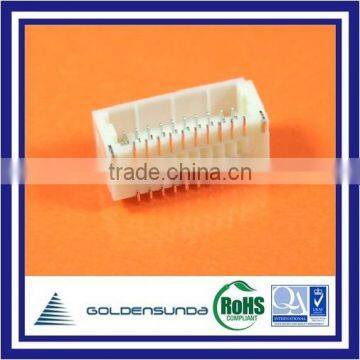

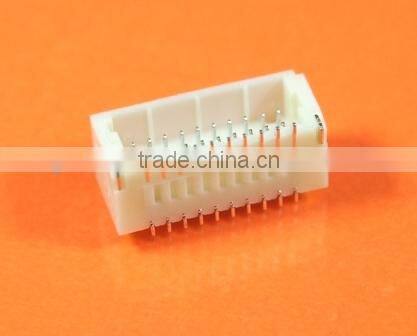

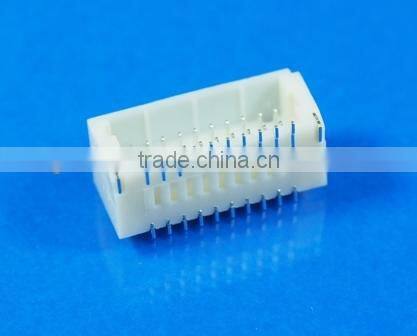

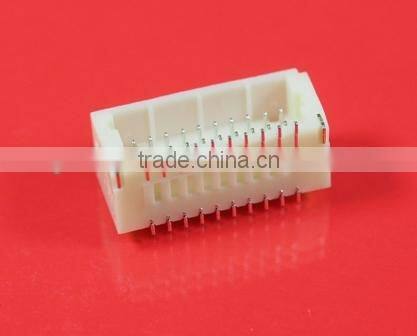

1mm pitch Wire to Board SMD 20 30 40 50 pin Connector
- 3000000 Piece / Pieces per Month
- Taiwan Port
You May Like
-
1.0mm Pitch 4-pin PCB Wire to Board SMT 180 Connector
-
Pitch 1.0 mm Wafer Connector, SMT Right Angle Type, 2 ~ 15, 20 Pin Connector Wire to Board
-
1mm Pitch PCB Wire to Board SMD 20 30 40 50 Pins Connector
-
0.8mm Pitch Plastic Housing 02~10, 12, 14~17, 20 pins Electronics Product IDC Connector
-
0.8mm Pitch SMT Electronic Wire to Board Connector 02~10, 12, 14~17, 20 pins Connector
-
0.8mm Pitch Wire to Board IDC 02~10, 12, 14~17, 20 pins Connector
Product Details
| Place of Origin | Taiwan, China | Brand Name | Goldensunda | |
| Model Number | AS08701XXXXX1 | Type | Other, All Electric Area | |
| Application | PCB | Gender | Other, Male / Female |
Product Description
1mm pitch Wire to Board SMD 20, 30, 40, 50 pin Connector

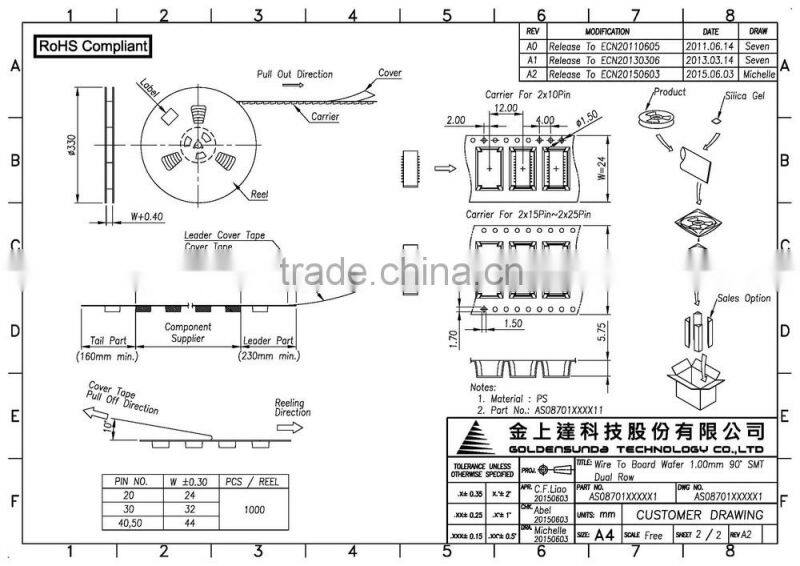

1. Tape & Reel 2. Tube

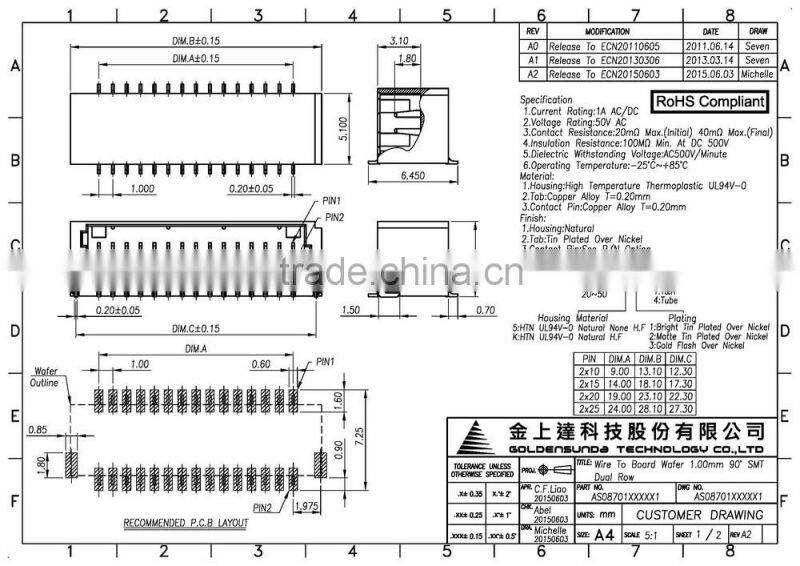

1mm pitch Wire to Board SMD 20, 30, 40, 50 pin Connector
| Specification | 1. Current Rating : 1A AC/DC |
| 2. Voltage Rating : 50V AC | |
| 3. Contact Resistance : 20mΩ Max. (Initial) 40mΩ Max. (Final) | |
| 4. Insulation Resistance : 100MΩ Min. At 500V | |
| 5. Dielectric Withstanding Voltage : AC 500V/Minute | |
6. Operating Temperature : -25°C ~ +85°C | |
| Material | 1. Housing : High Temperature Thermoplastic UL94V-0 |
| 2. Tab : Copper Alloy T=0.20mm | |
| 3. Contact Pin : Copper Alloy T=0.20mm | |
| Finish | 1. Housing : Natural None H.F. or H.F. |
| 2. Tab : Tin Plated Over Nickel | |
| 3. Contact Pin : Bright Tin Plated Over Nickel, Matte Tin Plated Over Nickel, Gold Flash Over Nickel |
Automotive / GPS / Consumer / DVD Players / Notebook PC / Smart Phone and Mobile Devices / Solid State Lighting / Track lighting / Linear lights / PC Industry / Communications Industry / Mobile Industry / Electronic Components
* This product is applicable for a variety of purposes, the above mentioned only represents some of the more common uses.
Goldensunda was founded in 1999, we are professional connector manufacturer for electronic components, such as Wire to Board Connectors, Wafer, Housing, Terminal, Board In, Board to Board Connectors, Pin Header, Female Header, Box Header, FPC / FFC Connectors, Wire to Wire Connectors, Input & Output (I/O) Connectors, PC Board Connectors, Wire Harness, Round Cable Assembly, FFC Cable, Flat Cable...etc. We manufacture all our products in our ISO9001:2008-certified factory in Taiwan. Goldensunda offers comprehensive connector solutions for a wide range of electronic. Quality, Efficiency, Experience, Innovation, customized OEM / ODM, Professional, Technology & Service are our competitive advantages.
Furthermore, for environmental friendly issue, we are in manufacturing RoHS compliant and low/free Halogen connectors. We strive to provide a win-win situation and look forward to cooperating with our valuable customers like a partner for long term. Welcome for your inquiry, and please contact us today!
OEM / ODM requests welcome!
Contact us today for more details.
